Home Electrical Wiring Devices Switches Toggle Switch DPST 20A at 125V/10A at 250V Off-On
Electrical

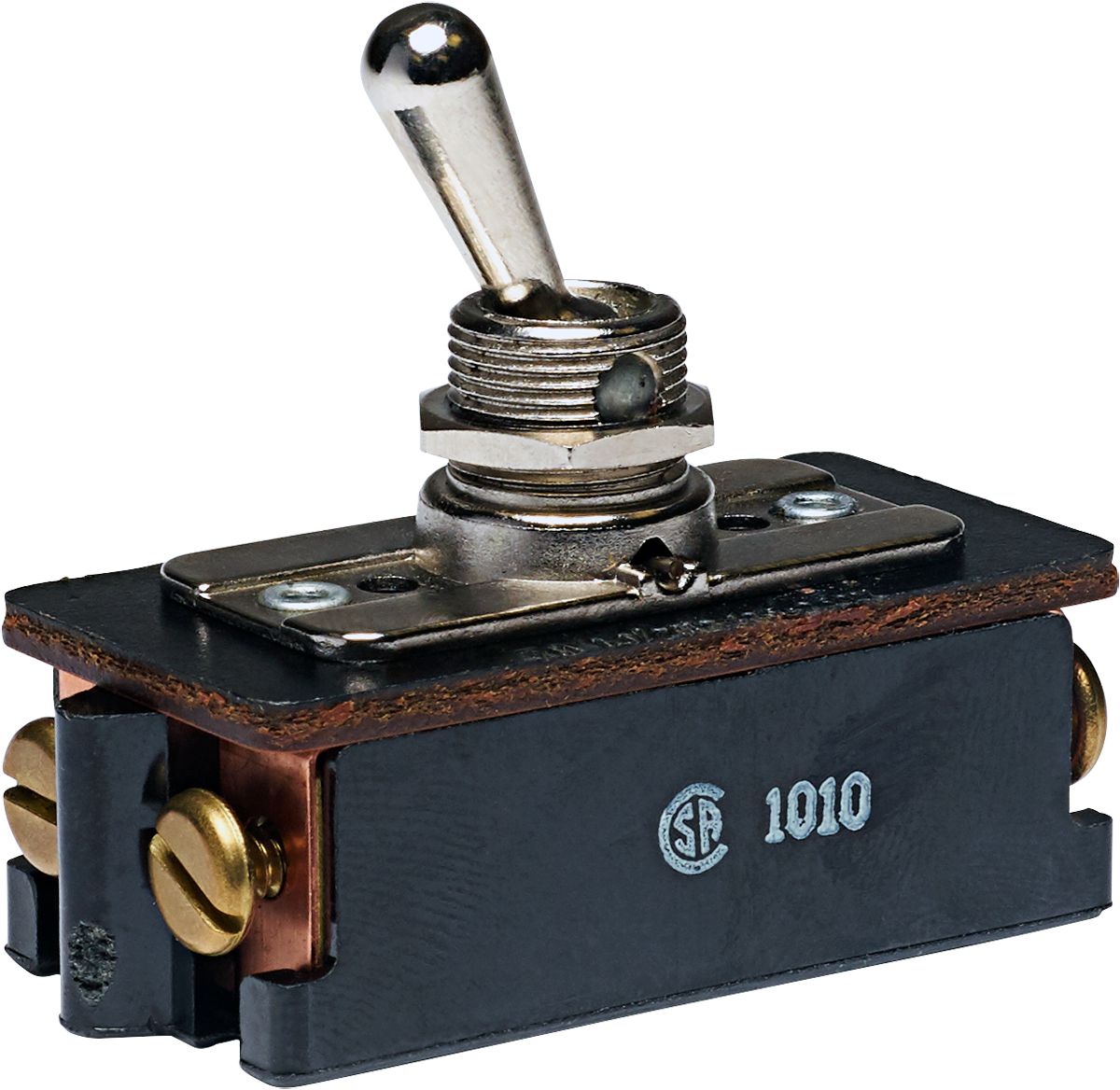

Toggle Switch, Double Pole Single Throw, 20 Amps at 125 Volts/10 Amps at 250 Volts, 2 Screw Terminal, Off-On
(Pack of 1)

Item#: 90385

Lawson Products

• Self-cleaning, self-wiping contacts
• Quick-make, quick-break contact mechanism
• Keyway (0.071"W x 0.038"D) provides anti-rotation feature
• 15/32" mounting stem dia.

Read More
Check Availability

Catalog page#: 17-126

Frequently Bought Together


MINI Fuse 10A Red

Item#: 95702

ATO/ATC Fuse 20A Yellow

Item#: 83028

Stepdown Butt Connector 24 to 22/22 to 18 AWG

Item#: 1495187

Extendable Handle Ratchet 3/8 Drive

Item#: DY89310027

SAE Interchangeable Nut Driver Set 11Pc

Item#: DY89320045

4Pc Adjustable/Pipe Wrench Set

Item#: DY89310022

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: FA88446

Mechanical Stop Lamp Switch with Arm

Item#: 50128

Push Button Switch SPST 12VDC Momentary On

Item#: 84489

Universal Pilot Indicator Light 12V 2x 16 AWG

Item#: 84481

Rocker Switch SPDT 25A 12VDC

Item#: 54480

Universal School Bus Switch SPST 36VDC

Item#: 11169

Toggle Switch SPST 50A 6V Off-On

Item#: 52791

Product Description

• Self-cleaning, self-wiping contacts
• Quick-make, quick-break contact mechanism
• Keyway (0.071"W x 0.038"D) provides anti-rotation feature
• 15/32" mounting stem dia.

Technical Specifications

Item#: 90385
Style Industrial Toggle Switches
Pole Double
Throw Single
Terminal Connection 2 Screws
Switch Positions Off - On
Mounting Stem Diameter 15/32 "
Electrical Rating Amps at Given Voltage (AC or DC Current) 20A at 125V; 10A at 250V; 1-1/2 hp at 125 to 250V
Approvals UL, CSA
Type Switches
UNSPSC #: 39122200
TAA Compliant: Yes
Weight: 0.1323 lb
