Trailer Cable, 7 Wire, 4 x 12/2 x 10/1 x 8 AWG, 100' Length, 7-Way, ABS, Bare Annealed Copper, PVC Jacket, Green
(Pack of
1)
SKU:55365 Item#: 55365
• Green PVC jacket is abrasion-proof, oil-resistant and water-resistant

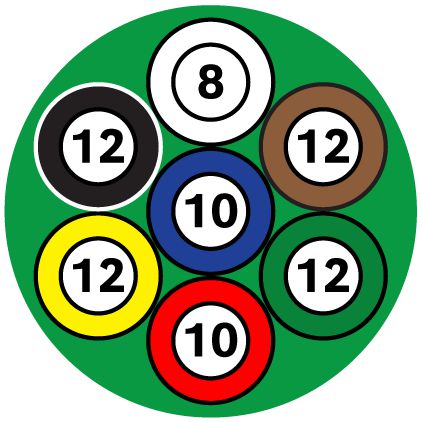

• Conductors are bare annealed copper conforming to SAE and ATA specifications; four 12 Ga., two 10 Ga. and one 8 Ga.• Temperature range: –58°F to +140°F (–50°C to +60°C)• Packaged in 100-foot rolls
As of March 1998, NHTSA regulations require all new trucks, trailers and buses with air brakes to have Anti-Lock (ABS) braking. This cable is specifically for ABS applications.
Frequently Bought Together
Liquidtight Strain Relief Connector 1/4" Nylon
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/2" Steel
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/2" Steel
Couldn't load pickup availability
Cable Tie 14.19" Black
Couldn't load pickup availability
ATO/ATC Fuse 15A Blue
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Ultralink Trailer Power Cord 12' Coiled ABS
Couldn't load pickup availability
Trailer Cable 7 Wire 14-12-10 AWG 100' PVC
Couldn't load pickup availability
Ultralink 500 Trailer Cord 12' Coiled Black
Couldn't load pickup availability
Product Description
• Green PVC jacket is abrasion-proof, oil-resistant and water-resistant• Conductors are bare annealed copper conforming to SAE and ATA specifications; four 12 Ga., two 10 Ga. and one 8 Ga.• Temperature range: –58°F to +140°F (–50°C to +60°C)• Packaged in 100-foot rolls
As of March 1998, NHTSA regulations require all new trucks, trailers and buses with air brakes to have Anti-Lock (ABS) braking. This cable is specifically for ABS applications.
Technical Specifications
| Item#: | 55365 |
|---|---|
| Style | ABS Seven-Way Trailer Cable |
| Wire Gauge | 12-10-8 AWG |
| Temperature Range | -36.4 to 140 F |
| Number of Conductors | 7 |
| O.D. | 0.075 - 0.095 " |
| Length | 100 ft |
| Color | Green |
| Approvals | SAE and ATA Specifications |
| Type | Trailer Cable |
| UNSPSC #: | 26121600 |
| TAA Compliant: | Yes |
| Weight: | 39.74 lb |
