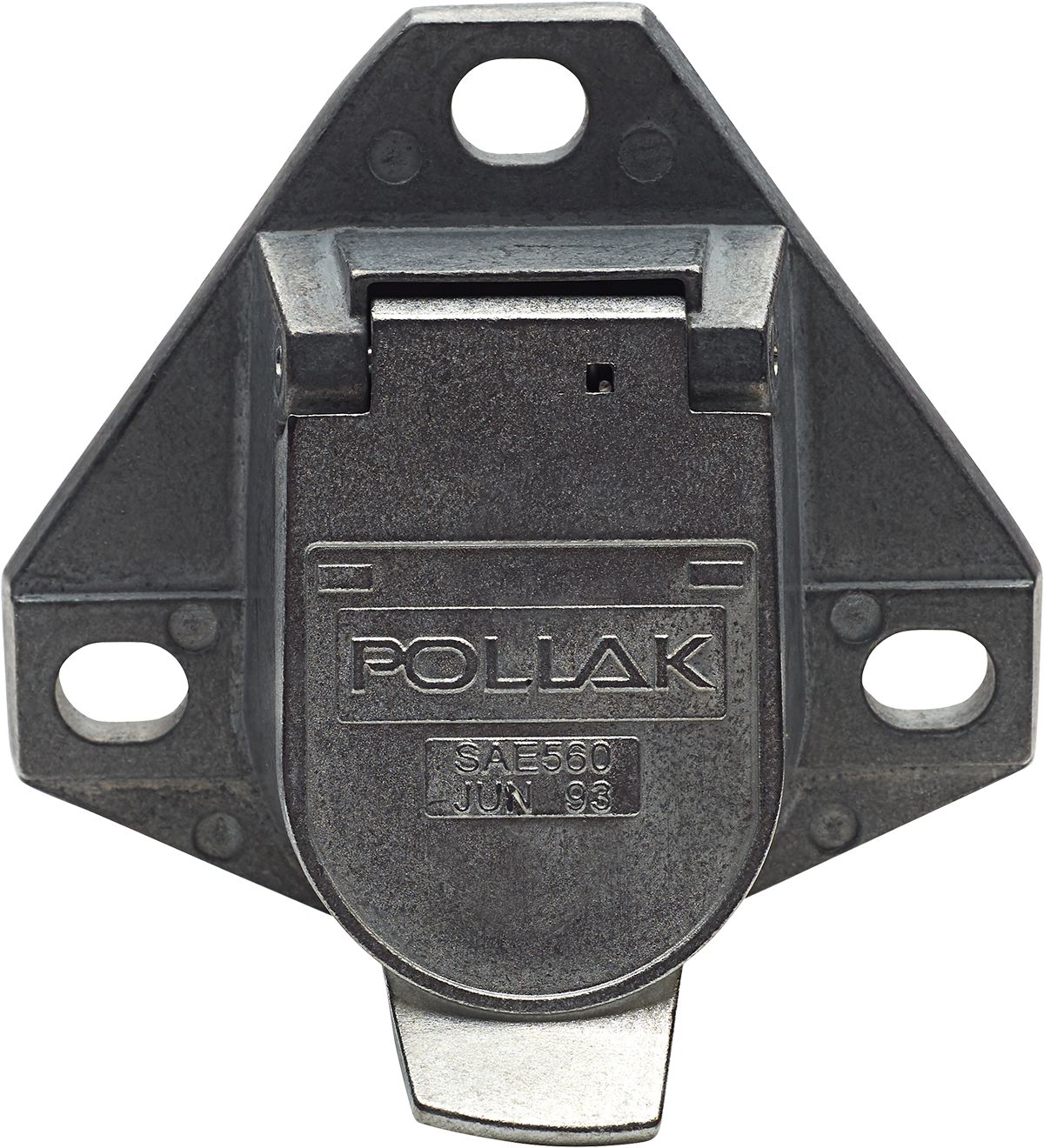

7-Way Trailer Socket Connector, 16 - 10AWG Wire (8AWG Ground), Self-grounded, Solid Pin Design, Three-Hole Mount
(Pack of
1)
SKU:53681 Item#: 53681
• Solid floating pins for ease of alignment and maximum contact
• Self-grounded
• Optimal slant mount and drain slot rid housing interior of accumulated moisture
• Exceeds FMVSS-121 and SAE J560c specifications• Will accept 16 to 10 Ga. wire and 8 Ga. ground wire• Plug-in wire terminations• Solid pin design• Interchangeable with Berg, Cole-Hersee and ATA
Couldn't load pickup availability
Catalog page#: 23-22
Frequently Bought Together
Connector Housing 20A 2-Wire Shroud
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Clear #10 Stud
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 8 AWG Red #10
Couldn't load pickup availability
Extreme-Duty Battery Cable Lug 1/0 AWG Black 3/8"
Couldn't load pickup availability
Trailer End Plug Connector 7-Way
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Trailer Connector 7-Way/Pole Plug Brush
Couldn't load pickup availability
Trailer Termination Socket-Ring/Spade
Couldn't load pickup availability
Heavy-Duty Universal Mounting Bracket
Couldn't load pickup availability
Product Description
• Solid floating pins for ease of alignment and maximum contact• Self-grounded
• Optimal slant mount and drain slot rid housing interior of accumulated moisture
• Exceeds FMVSS-121 and SAE J560c specifications• Will accept 16 to 10 Ga. wire and 8 Ga. ground wire• Plug-in wire terminations• Solid pin design• Interchangeable with Berg, Cole-Hersee and ATA
Technical Specifications
| Item#: | 53681 |
|---|---|
| Wire Gauge | 16 - 10 Gauge; 8 Gauge Ground |
| Size | 7 WAY |
| Replacement Interior Part Number | 53683 |
| Specifications | FMVSS-121 and SAE J560c |
| Material | Die Cast |
| Description | Three-Hole Mount Socket |
| Style | Seven Way Socket |
| Type | Tractor-Trailer Connectors |
| UNSPSC #: | 31163103 |
| TAA Compliant: | Yes |
| Weight: | 0.8 lb |
