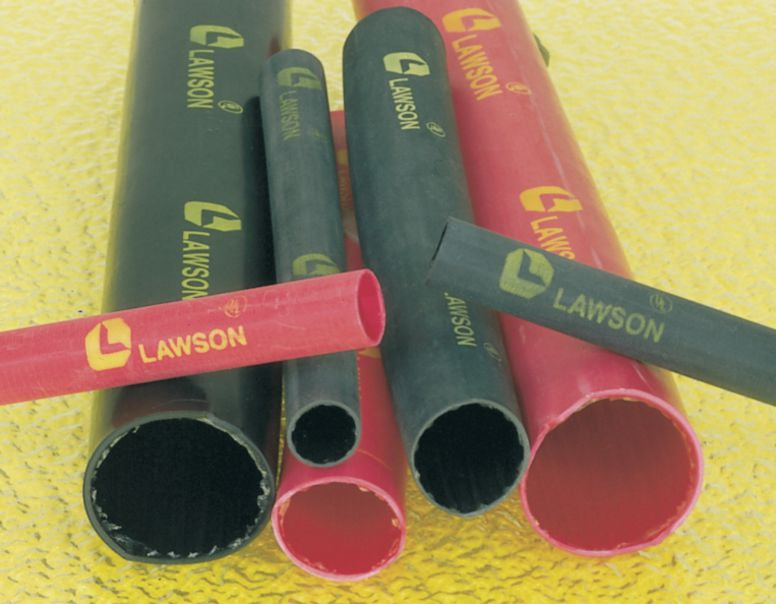

Tru-Shrink Heat Shrink Tubing, 8 to 1 AWG, Black, 6" Length, 0.75" ID Before and 0.22" ID After Shrinkage, 3:1 Shrink Ratio
(Pack of
6)
Insulate and protect larger electrical wires with this heat shrink tubing. Designed to fit over thick electrical wires and ideal for applications like motor control, power distribution, and large appliance wiring. The tubing shrinks tightly around the wire to provide protection against moisture, dust, chemicals and other environmental factors that could cause damage. Manufactured for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present.
• 3:1 shrink ratio
• Heat-activated adhesive liner surrounds material and produces a watertight seal
• Non-corrosive with excellent fluid and fungus resistance – non-nutrient, inert
• Meets UL Flammability Test Specification 94V2 and UL Specification 486D
• Elongation: 425%
• Minimum tensile strength: 1,542 PSI
• Minimum dielectric strength: 275V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 194°F (90°C)
• Longitudinal change: 15% maximum, less than 5% typical
• Rated at 600V
• Designed for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Frequently Bought Together
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 16 to 14 AWG Blue
Couldn't load pickup availability
Heat Shrink Tubing 18 to 12 AWG Clear
Couldn't load pickup availability
Heat Shrink Tubing 8 to 2 AWG Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Red
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.25" ID
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
Insulate and protect larger electrical wires with this heat shrink tubing. Designed to fit over thick electrical wires and ideal for applications like motor control, power distribution, and large appliance wiring. The tubing shrinks tightly around the wire to provide protection against moisture, dust, chemicals and other environmental factors that could cause damage. Manufactured for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present.• 3:1 shrink ratio
• Heat-activated adhesive liner surrounds material and produces a watertight seal
• Non-corrosive with excellent fluid and fungus resistance – non-nutrient, inert
• Meets UL Flammability Test Specification 94V2 and UL Specification 486D
• Elongation: 425%
• Minimum tensile strength: 1,542 PSI
• Minimum dielectric strength: 275V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 194°F (90°C)
• Longitudinal change: 15% maximum, less than 5% typical
• Rated at 600V
• Designed for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 86503 |
|---|---|
| Type | Pre-Cut |
| Style | Heavy Wall |
| Wire Gauge Coverage | 8-1 AWG |
| Length | 6 " |
| Color | Black |
| I.D. Before Shrinkage | .75 " |
| I.D. After Shrinkage | .220 " |
| Shrink Ratio | 3 to 1 |
| Wall Thickness After Shrinkage | 0.090 " |
| Voltage Rating | 600 V |
| Temperature Rating | 194 °F |
| Elongation | 425 % |
| Tensile Strength | 1,542 PSI |
| Approvals | UL, CSA |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.21 lb |
