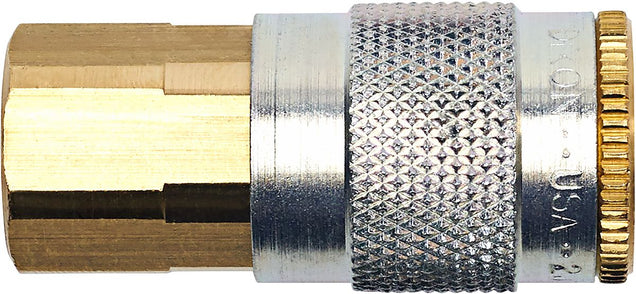

Universal Air Coupler, 125PSI, Female NPTF, 1/4" Body Size, 1/4-18 Thread Size
(Pack of
1)
SKU:97323 Item#: 97323
Universal Air Couplers accept Tru-Flate, ARO and Industrial Interchange (standard) plugs. Choose them for applications where universality and automatic push-to-connect simplicity are key considerations. A full-flow feature allows greater air flow at lower pressure than conventional couplers.
• Brass body, brass knurled sleeve
• Precision seals and valve seats assure airtight operation
• Working pressure: 125 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Couplers will mate with the following plugs:
11915
11916
11942
11943
11950
11951
27172
27173
29026
29031
29032
29033
29034
54544
Will not mate with Lincoln-style plug
Frequently Bought Together
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" MNPT
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 3/8" FNPT
Couldn't load pickup availability
Hose Barb Brass 1/4" x 1/8-27
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Coupler Brass 3/8" x 3/8-18
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/4"
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
Pipe Hex Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 3/8" x 3/8-18
Couldn't load pickup availability
Barb-Lok Hose End 3/8" (-6) x 5/8-18 (-6)
Couldn't load pickup availability
Barb-Lok Hose Mender 5/8" (-10) Hose ID
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
Universal Air Couplers accept Tru-Flate, ARO and Industrial Interchange (standard) plugs. Choose them for applications where universality and automatic push-to-connect simplicity are key considerations. A full-flow feature allows greater air flow at lower pressure than conventional couplers.• Brass body, brass knurled sleeve
• Precision seals and valve seats assure airtight operation
• Working pressure: 125 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Couplers will mate with the following plugs:
11915
11916
11942
11943
11950
11951
27172
27173
29026
29031
29032
29033
29034
54544
Will not mate with Lincoln-style plug
Technical Specifications
| Item#: | 97323 |
|---|---|
| Description | Universal |
| Type | Coupler |
| Style | Universal |
| Body Size | 1/4 " |
| Thread Style | Female NPTF |
| Thread Size | 1/4-18 |
| Working Pressure | 125 PSI |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
| Weight: | 0.25 lb |
