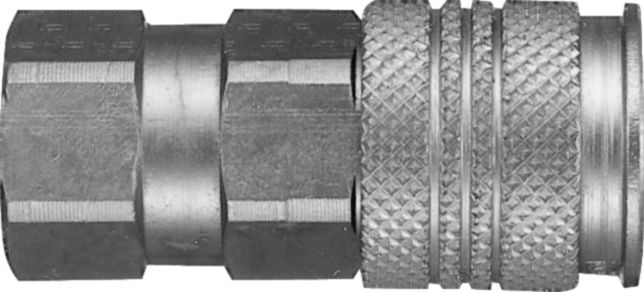

Universal Air Coupler, Brass, 125PSI, Female NPTF, 3/8" Body Size, 3/8-18 Thread Size
(Pack of
1)
SKU:KT15121 Item#: KT15121
Universal Air Couplers accept Tru-Flate, ARO and Industrial Interchange (standard) plugs. Choose them for applications where universality and automatic push-to-connect simplicity are key considerations. A full-flow feature allows greater air flow at lower pressure than conventional couplers.
• Brass body, brass knurled sleeve
• Precision seals and valve seats assure airtight operation
• Working pressure: 125 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Couplers will mate with the following plugs:
11915
11916
11942
11943
11950
11951
27172
27173
29026
29031
29032
29033
29034
54544
Will not mate with Lincoln-style plug
Frequently Bought Together
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose End Brass 3/8 x 3/8"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
DOT Union Nylon 1/4 x 1/4"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose End Brass 3/8 x 3/8"
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Product Description
Universal Air Couplers accept Tru-Flate, ARO and Industrial Interchange (standard) plugs. Choose them for applications where universality and automatic push-to-connect simplicity are key considerations. A full-flow feature allows greater air flow at lower pressure than conventional couplers.• Brass body, brass knurled sleeve
• Precision seals and valve seats assure airtight operation
• Working pressure: 125 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Couplers will mate with the following plugs:
11915
11916
11942
11943
11950
11951
27172
27173
29026
29031
29032
29033
29034
54544
Will not mate with Lincoln-style plug
Technical Specifications
| Item#: | KT15121 |
|---|---|
| Description | Universal |
| Type | Coupler |
| Style | Universal |
| Body Size | 3/8 " |
| Thread Style | Female NPTF |
| Thread Size | 3/8-18 |
| Working Pressure | 125 PSI |
| Material | Brass |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.37 lb |
Product Restrictions
