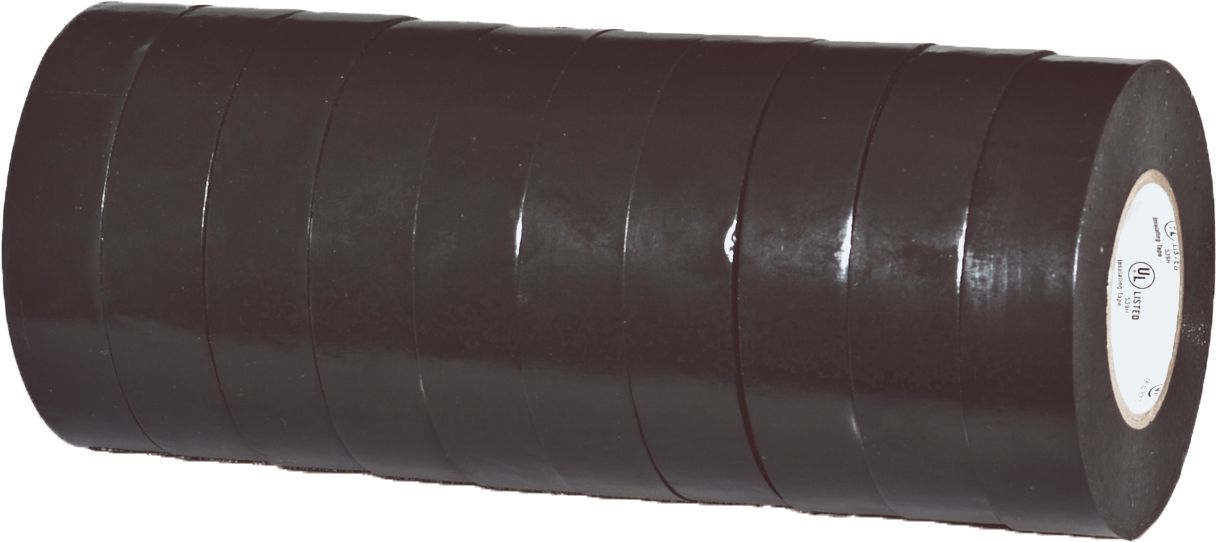

Vinyl Electrical Tape, Black, 3/4" Width, 60' Length, 200% Elongation, 32 to 176°F Temperature Rating, 10 Rolls Per Pack
(Pack of
1)
SKU:9007 01 Item#: 9007 01
• 600V
• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 66'
• 7 mil thick (except 54519, which is 8 mil)
Couldn't load pickup availability
Catalog page#: 17-40
Frequently Bought Together
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Vinyl Electrical Tape Yellow 3/4" x 66'
Couldn't load pickup availability
Vinyl Electrical Tape Red 3/4" x 66'
Couldn't load pickup availability
Super 88 Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.25" ID
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.75" ID 25'
Couldn't load pickup availability
Heat Shrink Tubing 4 to 2/0 AWG Black
Couldn't load pickup availability
Product Description
• 600V• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 66'
• 7 mil thick (except 54519, which is 8 mil)
Technical Specifications
| Item#: | 9007 01 |
|---|---|
| Type | Multi-Pack |
| Style | Vinyl Electrical Tape |
| Color | Black |
| Dielectric Strength | 1,000 V/mm |
| Length | 60 ft |
| Width | 3/4 " |
| Thickness | 7 mil |
| Temperature Range | 32 to 176 °F |
| Celcius Temperature Range | 0 to 80 °C |
| Elongation | 200 % |
| Adhesion to Steel | 24 in. oz. |
| Adhesion to Backing | 22 in. oz. |
| Breaking Strength | 17 in·lbf |
| Voltage Rating | 600 V |
| Approvals | UL, CSA, ASTM |
| Description | 10 Pack – Weather-Resistant |
| UNSPSC #: | 31201502 |
| TAA Compliant: | Yes |
| Weight: | 2.09 lb |
