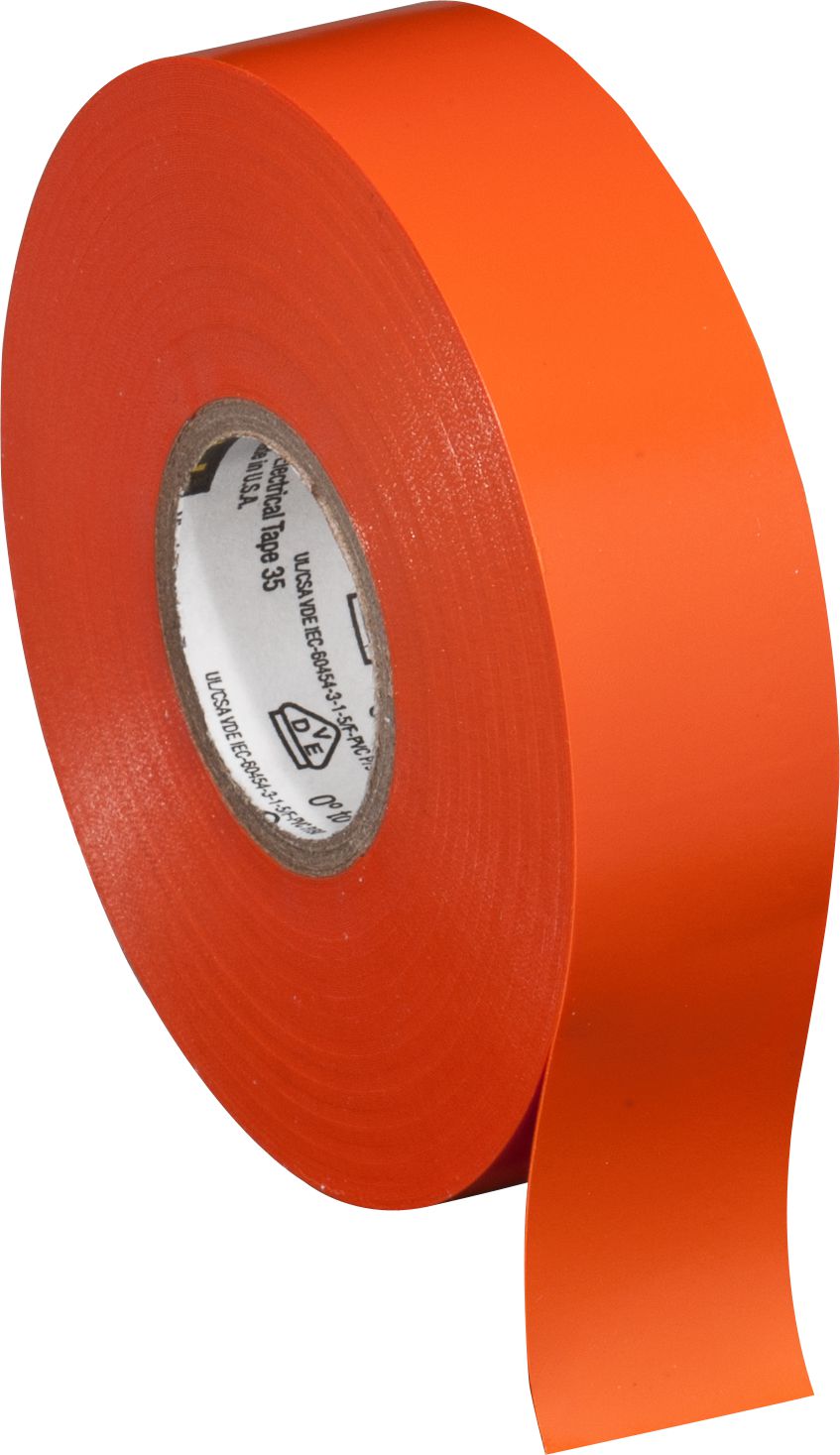

Vinyl Electrical Tape, Orange, 3/4" Width, 66' Length, 225% Elongation, 32 to 220°F Temperature Rating
(Pack of
1)
SKU:29418 Item#: 29418
Protect and insulate your electrical work with our electrical tape. This black vinyl tape is ideal for all wire and cable splices rated up to 600 volts and 221°F (105°C). Perfect for demanding electrical maintenance and repair jobs in automotive, communications and manufacturing industries. Turn to this professional-grade tape preferred by electricians.
• 600V
• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 60'
• 7 mil thick (except 54519, which is 8 mil)
Couldn't load pickup availability
Catalog page#: 17-40
Frequently Bought Together
Master Series Penlight Flashlight
Couldn't load pickup availability
Cable Tie 14.19" Black
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Auto Electric Super Sealant 2-1/2" Roll
Couldn't load pickup availability
Vinyl Electrical Tape Green 3/4" x 66'
Couldn't load pickup availability
Seal Tite Fusion Wrap Red 1"
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 12 to 10 AWG Yellow
Couldn't load pickup availability
Heat Shrink Tubing 22 to 18 AWG Red
Couldn't load pickup availability
Vinyl Electrical Tape Black 3/4" x 66'
Couldn't load pickup availability
Product Description
Protect and insulate your electrical work with our electrical tape. This black vinyl tape is ideal for all wire and cable splices rated up to 600 volts and 221°F (105°C). Perfect for demanding electrical maintenance and repair jobs in automotive, communications and manufacturing industries. Turn to this professional-grade tape preferred by electricians.• 600V
• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 60'
• 7 mil thick (except 54519, which is 8 mil)
Technical Specifications
| Item#: | 29418 |
|---|---|
| Type | Individual Roll |
| Style | Vinyl Electrical Tape |
| Color | Orange |
| Dielectric Strength | 1,250 V/mm |
| Length | 66 ft |
| Width | 3/4 " |
| Thickness | 7 mil |
| Temperature Range | 32 to 220 °F |
| Celcius Temperature Range | 0 to 105 °C |
| Elongation | 225 % |
| Adhesion to Steel | 20 in. oz. |
| Adhesion to Backing | 20 in. oz. |
| Breaking Strength | 17 in·lbf |
| Voltage Rating | 600 V |
| Approvals | UL, CSA, ASTM |
| Description | 3M 35 Series |
| UNSPSC #: | 31201502 |
| TAA Compliant: | Yes |
| Weight: | 0.22 lb |
