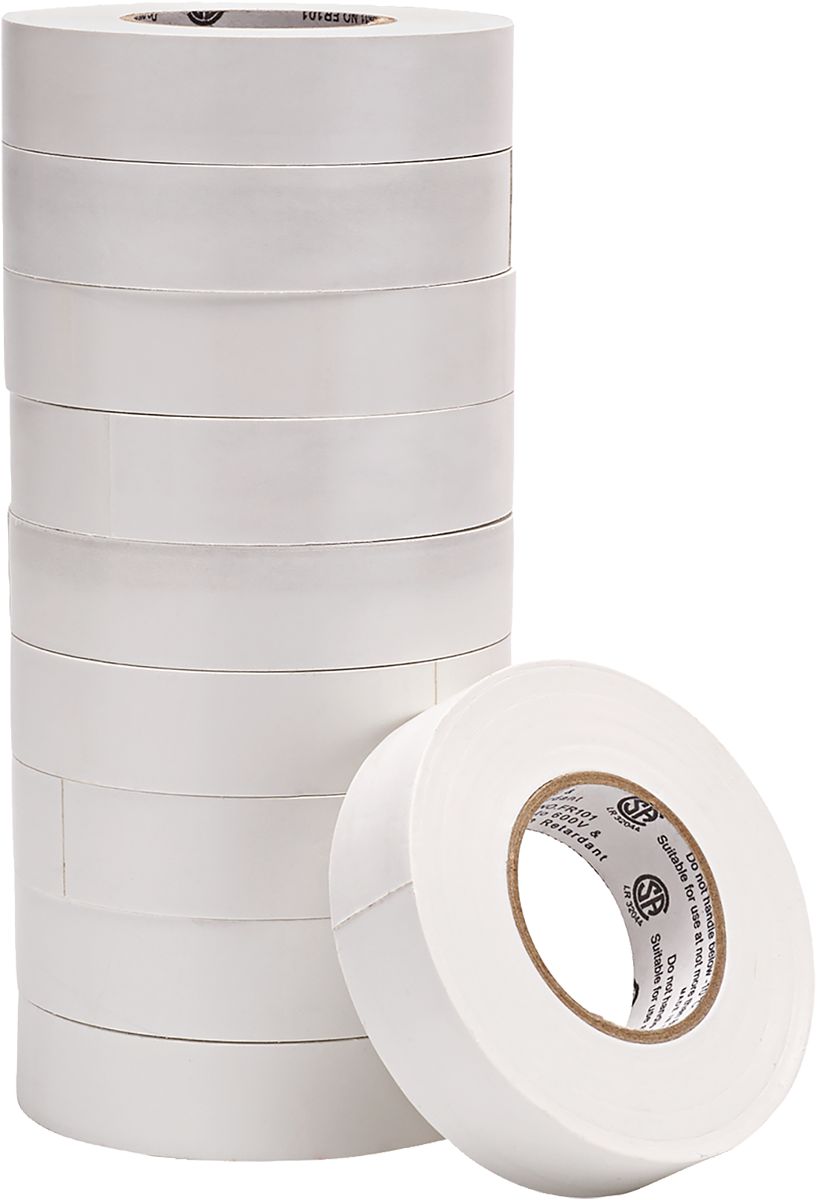

Vinyl Electrical Tape, White, 3/4" Width, 66' Length, 220% Elongation, 14 to 176°F Temperature Rating
(Pack of
1)
SKU:1145856 Item#: 1145856
• 600V
• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 66'
• 7 mil thick (except 54519, which is 8 mil)
Frequently Bought Together
Vision Pro Super
Item#: DY21061040
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Item#: 1495189
Couldn't load pickup availability
Cable Tie 13.38" Black
Item#: 85490
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Item#: 92822
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Item#: 1495188
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Item#: 88437
Couldn't load pickup availability
Vinyl Electrical Tape Yellow 3/4" x 66'
Item#: 90235
Couldn't load pickup availability
Vinyl Electrical Tape Blue 3/4" x 66'
Item#: 90231
Couldn't load pickup availability
Super 88 Series Vinyl Electrical Tape Black 3/4"
Item#: 1145814
Couldn't load pickup availability
Heat Shrink Tubing 18 to 12 AWG Clear
Item#: 89465
Couldn't load pickup availability
Heat Shrink Tubing 30 to 18 AWG Black
Item#: 51878
Couldn't load pickup availability
Heat Shrink Tubing 4 to 2/0 AWG Black
Item#: 51883
Couldn't load pickup availability
Product Description
• 600V• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 66'
• 7 mil thick (except 54519, which is 8 mil)
Technical Specifications
| Item#: | 1145856 |
|---|---|
| Type | Multi-Pack |
| Style | Vinyl Electrical Tape |
| Color | White |
| Dielectric Strength | 1,000 V/mm |
| Length | 66 ft |
| Width | 3/4 " |
| Thickness | 7 mil |
| Temperature Range | 14 to 176 °F |
| Celcius Temperature Range | -10 to 80 °C |
| Elongation | 220 % |
| Adhesion to Steel | 21 in. oz. |
| Adhesion to Backing | 20 in. oz. |
| Breaking Strength | 19 in·lbf |
| Voltage Rating | 600 V |
| Approvals | UL, CSA, ASTM |
| Description | 10 Pack – Cold- and Weather-Resistant |
| UNSPSC #: | 31201502 |
| TAA Compliant: | No |
| Weight: | 1.93 lb |
