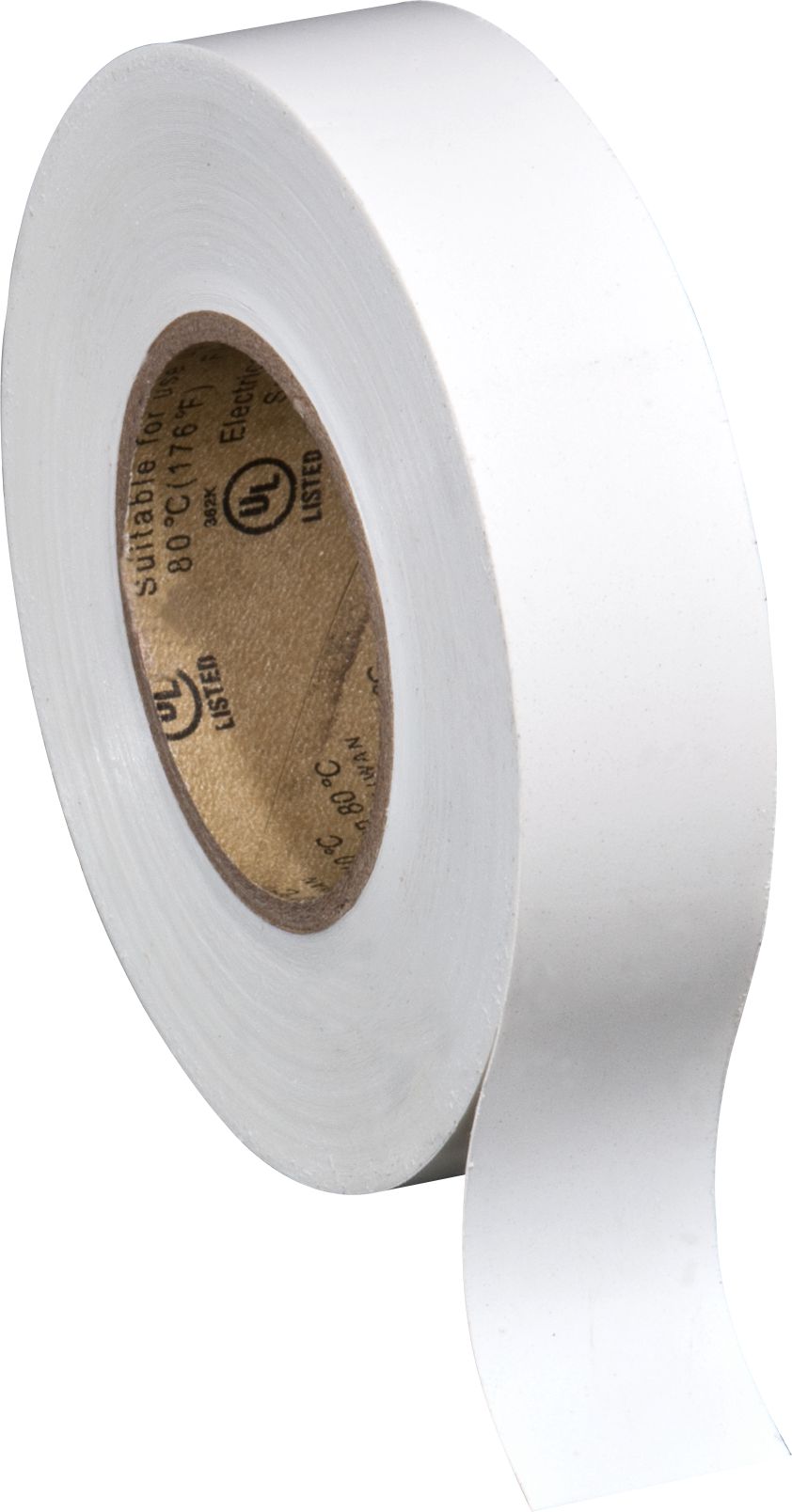

Vinyl Electrical Tape, White, 3/4" Width, 66' Length, 220% Elongation, 14 to 176°F Temperature Rating
(Pack of
1)
SKU:90233 Item#: 90233
Protect and insulate your electrical work with our electrical tape. This black vinyl tape is ideal for all wire and cable splices rated up to 600 volts and 221°F (105°C). Perfect for demanding electrical maintenance and repair jobs in automotive, communications and manufacturing industries. Turn to this professional-grade tape preferred by electricians.
• 600V
• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 60'
• 7 mil thick (except 54519, which is 8 mil)
Frequently Bought Together
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Couldn't load pickup availability
Connector Housing 20A 2-Wire Shroud
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Clear #10 Stud
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Posi-Seal Plus Patch Black 2-1/2 x 2-1/2" Pads
Couldn't load pickup availability
Seal Tite Fusion Wrap Gray 1"
Couldn't load pickup availability
Silifuse Identification Tape, Black, 1 In Width x .02 Thick x 10Ft Len
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.625" ID 25'
Couldn't load pickup availability
Rubber Grommet 1/2" ID
Couldn't load pickup availability
Rubber Grommet 11/16" ID
Couldn't load pickup availability
Product Description
Protect and insulate your electrical work with our electrical tape. This black vinyl tape is ideal for all wire and cable splices rated up to 600 volts and 221°F (105°C). Perfect for demanding electrical maintenance and repair jobs in automotive, communications and manufacturing industries. Turn to this professional-grade tape preferred by electricians.• 600V
• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 60'
• 7 mil thick (except 54519, which is 8 mil)
Technical Specifications
| Item#: | 90233 |
|---|---|
| Type | Individual Roll |
| Style | Vinyl Electrical Tape |
| Color | White |
| Dielectric Strength | 1,000 V/mm |
| Length | 66 ft |
| Width | 3/4 " |
| Thickness | 7 mil |
| Temperature Range | 14 to 176 °F |
| Celcius Temperature Range | -10 to 80 °C |
| Elongation | 220 % |
| Adhesion to Steel | 21 in. oz. |
| Adhesion to Backing | 20 in. oz. |
| Breaking Strength | 19 in·lbf |
| Voltage Rating | 600 V |
| Approvals | UL, CSA, ASTM |
| Description | Cold- and Weather-Resistant |
| UNSPSC #: | 31201502 |
| TAA Compliant: | No |
| Weight: | 0.19 lb |
Product Restrictions
