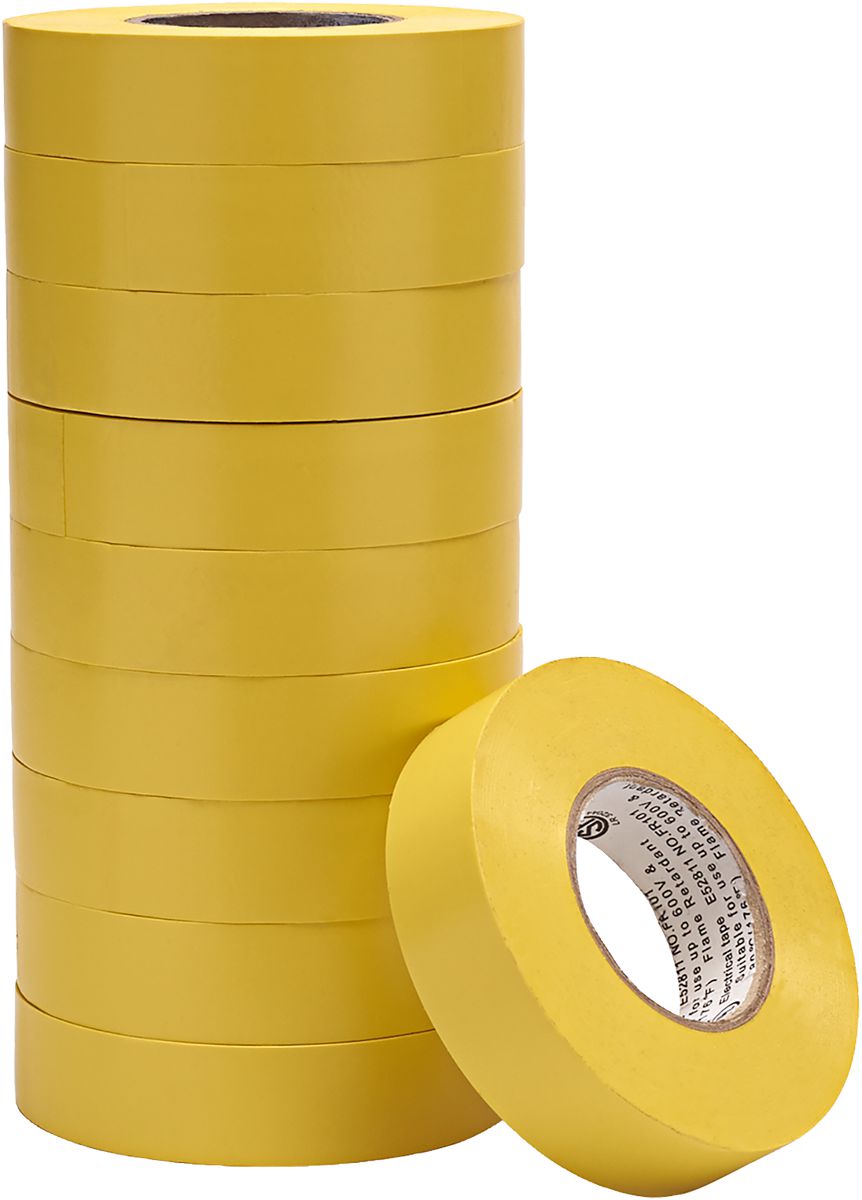

Vinyl Electrical Tape, Yellow, 3/4" Width, 66' Length, 220% Elongation, 14 to 176°F Temperature Rating
(Pack of
1)
SKU:1145739 Item#: 1145739
• 600V
• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 66'
• 7 mil thick (except 54519, which is 8 mil)
Frequently Bought Together
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Item#: 86502
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Clear
Item#: 1495181
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Item#: 25262
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Item#: 88439
Couldn't load pickup availability
Cable Tie 13.38" Black
Item#: 85490
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Item#: A101
Couldn't load pickup availability
Electrical Tape Assortment with Dispenser 15Pcs
Item#: 1455865BL
Couldn't load pickup availability
Posi-Seal Plus Patch Black 2-1/2 x 2-1/2" Pads
Item#: KT13080
Couldn't load pickup availability
Hercu-Flex Sealing compound Tape, 2-1/2˝ X 120˝ (10’) Roll
Item#: DY22142425
Couldn't load pickup availability
Rubber Grommet 1/2" ID
Item#: 52647
Couldn't load pickup availability
Heat Shrink Tubing 20 to 18 AWG Clear
Item#: P29930
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 4/0 to 400 MCM Black
Item#: 89557
Couldn't load pickup availability
Product Description
• 600V• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 66'
• 7 mil thick (except 54519, which is 8 mil)
Technical Specifications
| Item#: | 1145739 |
|---|---|
| Type | Multi-Pack |
| Style | Vinyl Electrical Tape |
| Color | Yellow |
| Dielectric Strength | 1,000 V/mm |
| Length | 66 ft |
| Width | 3/4 " |
| Thickness | 7 mil |
| Temperature Range | 14 to 176 °F |
| Celcius Temperature Range | -10 to 80 °C |
| Elongation | 220 % |
| Adhesion to Steel | 21 in. oz. |
| Adhesion to Backing | 20 in. oz. |
| Breaking Strength | 19 in·lbf |
| Voltage Rating | 600 V |
| Approvals | UL, CSA, ASTM |
| Description | 10 Pack – Cold- and Weather-Resistant |
| UNSPSC #: | 31201502 |
| TAA Compliant: | No |
| Weight: | 2.02 lb |
