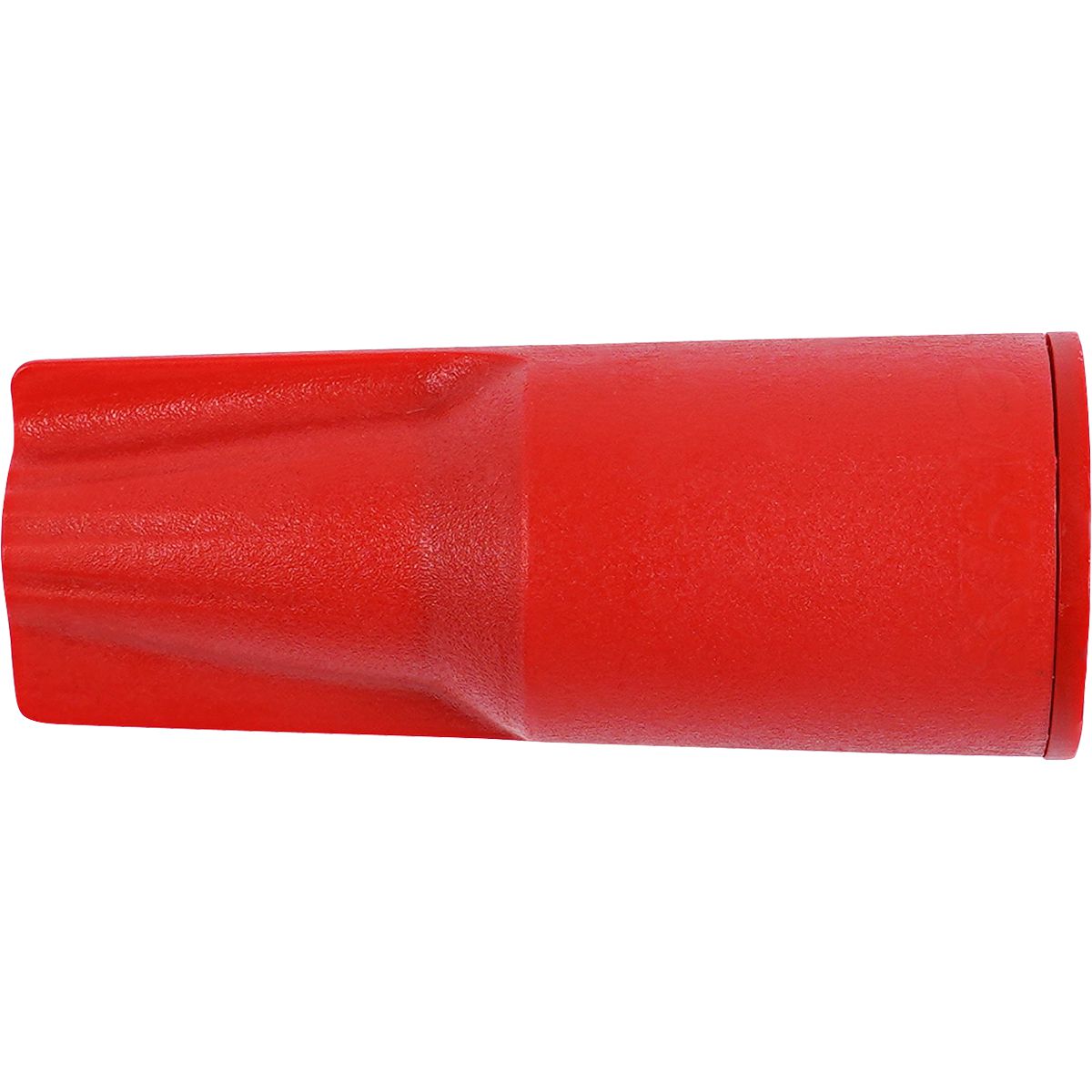

Watertight Wire Nuts, 2 - 14 Gauge/4 - 12 Gauge, Red
(Pack of
25)
SKU:DY20720050 Item#: DY20720050
Moisture and corrosion resistant wire connections
Sealant provides 500 volts of insulation for every 1 mil of thickness
Can be used in watertight boxes to further protect against condensation, ice formation, fumes and flooding
The unique resin outer shell and modified silicone fill provide excellent protection against most chemical environments including ammonia, acids, salts and waste material
Great in damp and wet areas, can be submersed but not continuously
Frequently Bought Together
Ring Tongue Terminal 16 to 14 AWG Clear #10 Stud
Couldn't load pickup availability
Cable Seal Green 20-18 AWG 20A 12V
Couldn't load pickup availability
Socket Contact 20-16 AWG Size 16
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Ring Tongue Terminal 22 to 18 AWG Red
Couldn't load pickup availability
Step-Down Butt Connector 12 to 10/16 to 14 AWG
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Watertight Wire Nuts 3 X 22 or 4 X 12 or 3 X 10 Gauge Light Blue
Couldn't load pickup availability
Term-A-Nut Fork Terminal Connector 22 to 12 AWG
Couldn't load pickup availability
Waterproof Wire Connector 22 to 14 AWG
Couldn't load pickup availability
Terminal Vinyl Insulated Pin 12-10 AWG Yellow
Couldn't load pickup availability
Wire Pin Connector 22 to 18 AWG
Couldn't load pickup availability
Wire Pin Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Product Description
Moisture and corrosion resistant wire connections Sealant provides 500 volts of insulation for every 1 mil of thickness
Can be used in watertight boxes to further protect against condensation, ice formation, fumes and flooding
The unique resin outer shell and modified silicone fill provide excellent protection against most chemical environments including ammonia, acids, salts and waste material
Great in damp and wet areas, can be submersed but not continuously
Technical Specifications
| Item#: | DY20720050 |
|---|---|
| Type | Wire Nut |
| Wire Gauge | 14 (2 Wire) to 12 (4 Wire) AWG |
| Voltage Rating | 600V Maximum for Building Wire 1,000V Maximum in Signs and Fixtures |
| Color | Red |
| Temperature Range | 221 °F |
| Celcius Temperature Range | 105 C |
| Length | 1-3/4 " |
| O.D. | 13/16 " |
| Approvals | CSA C22.2 |
| Style | Water Tight Wire Nuts |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.605 lb |
