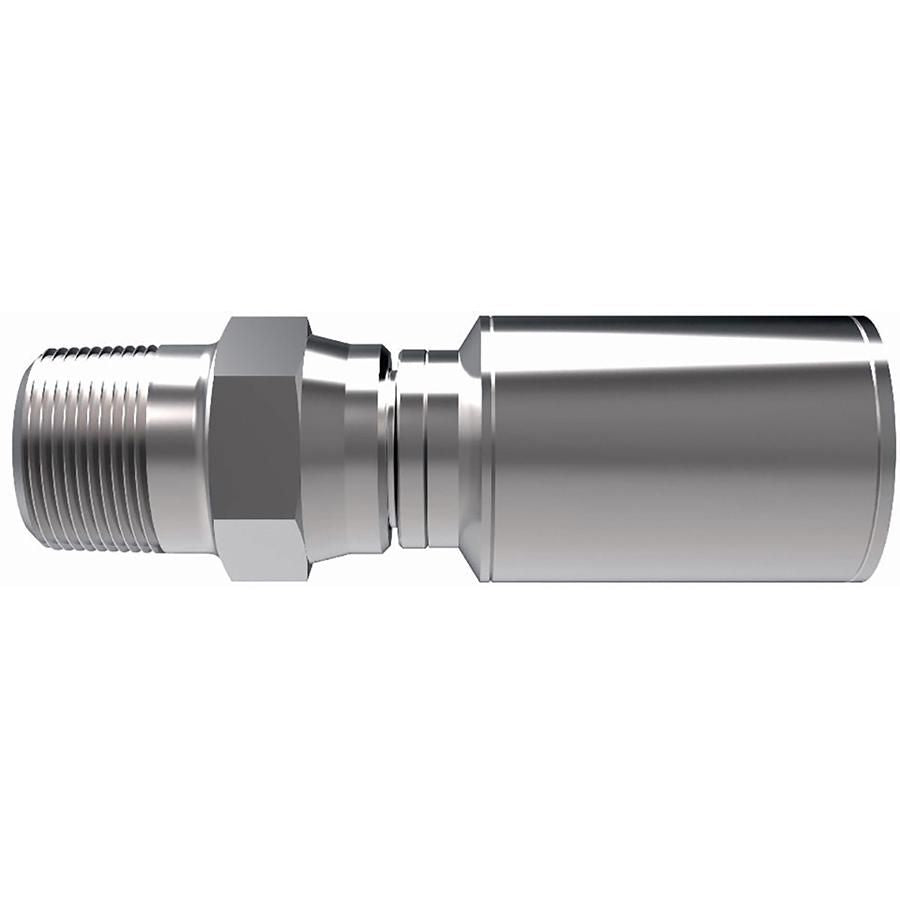

Z Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Male Swivel Pipe NPTF, 3/8 (-6) x 1/2-14 (-8)
(Pack of
1)
SKU:16602 Item#: 16602
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Couldn't load pickup availability
Frequently Bought Together
Z Series Crimp-On Hose End 3/4" x 1-3/16-12
Item#: 16716
Couldn't load pickup availability
Crimp-On Coupling 1/4" x 9/16-18
Item#: 51140KH
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 11/16-16
Item#: 16704
Couldn't load pickup availability
Hydraulic Plug, 7/8-14"(10) Male JIC SAE 37 Degree Flare
Item#: 86201
Couldn't load pickup availability
Hydraulic Hose Protector 4 x 2-1/2" Yellow
Item#: 62379
Couldn't load pickup availability
Straight Thread O-Ring Buna-N 0.468 x 0.078"
Item#: 93616
Couldn't load pickup availability
Hose Clamp 304 SS 1-13/16 to 2-3/4"
Item#: 87142
Couldn't load pickup availability
DOT Compression Union Brass 1/4"
Item#: 84253
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/8-27
Item#: 91794
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Item#: 64348
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Item#: FA88447
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Item#: 88436
Couldn't load pickup availability
Product Description
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.Technical Specifications
| Item#: | 16602 |
|---|---|
| Manufacturer Model #: | 06Z-J08 |
| Manufacturer Series Number | Z Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/8 (-6) " |
| Dash Size | -6 |
| Gender | Male |
| Fitting End Style | Pipe NPTF |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1/2-14 (-8) |
| Weatherhead No. | 06Z-J08 |
| O.D. Tube Size | 1/2 |
| Size | (-6)X(-8) |
| Hex Size | 7/8 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.27 lb |
