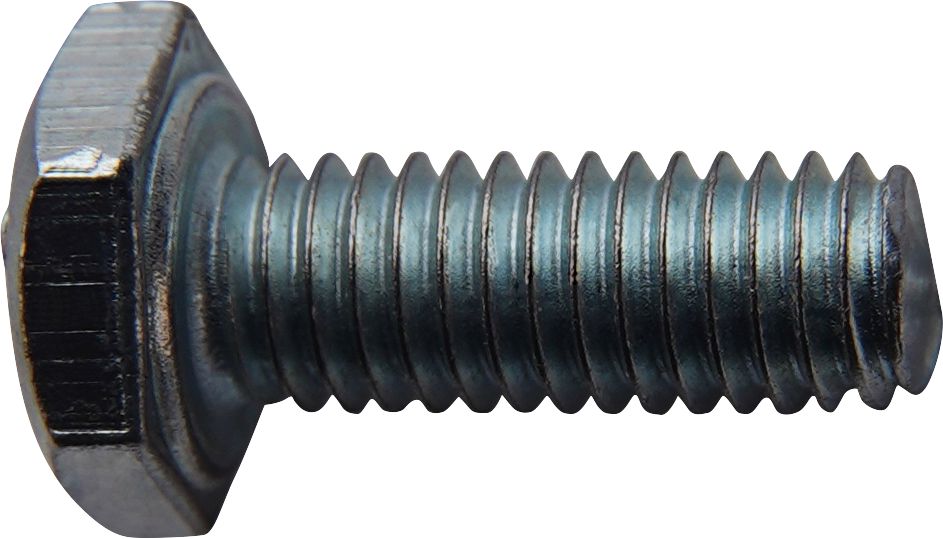

DIN 933 Hex Cap Screw, Property Class 8.8, Steel, Zinc Finish, Coarse Thread, 4mm Head Height, 10mm Across Flats, M6-1 x 20mm
(Pack of
50)
• 830 MPa (120,000 PSI) minimum ultimate tensile strength
• Comparable to SAE Grade 5
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 3-41
Frequently Bought Together
Hex Cap Screw Grade 5 3/8-16 x 1"
Couldn't load pickup availability
Hex Cap Screw Grade 8 1/2-13 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 3/8-16 x 1-1/4"
Couldn't load pickup availability
Hex Cap Screw Grade 5 3/8-16 x 1"
Couldn't load pickup availability
Hex Cap Screw Grade 8 1/2-13 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 3/8-16 x 1-1/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Product Description
• 830 MPa (120,000 PSI) minimum ultimate tensile strength• Comparable to SAE Grade 5
Technical Specifications
| Item#: | 27331 |
|---|---|
| Style | Industry Standard |
| Diameter | M6 |
| Thread Pitch | 1.0 mm |
| Thread | Coarse |
| Length | 20 mm |
| Type | Hex Cap Screw |
| Across Flats | 10 mm |
| Material | Carbon Steel |
| Grade | 8.8 |
| Finish | Bright Zinc |
| Tensile Strength | 830 MPa |
| Specifications | DIN 933 |
| Head Style | Hex |
| Head Height | 4 mm |
| Thread Length | Full |
| Thread Length Minimum | Full |
| UNSPSC #: | 31161501 |
| TAA Compliant: | No |
| Weight: | 0.65 lb |
