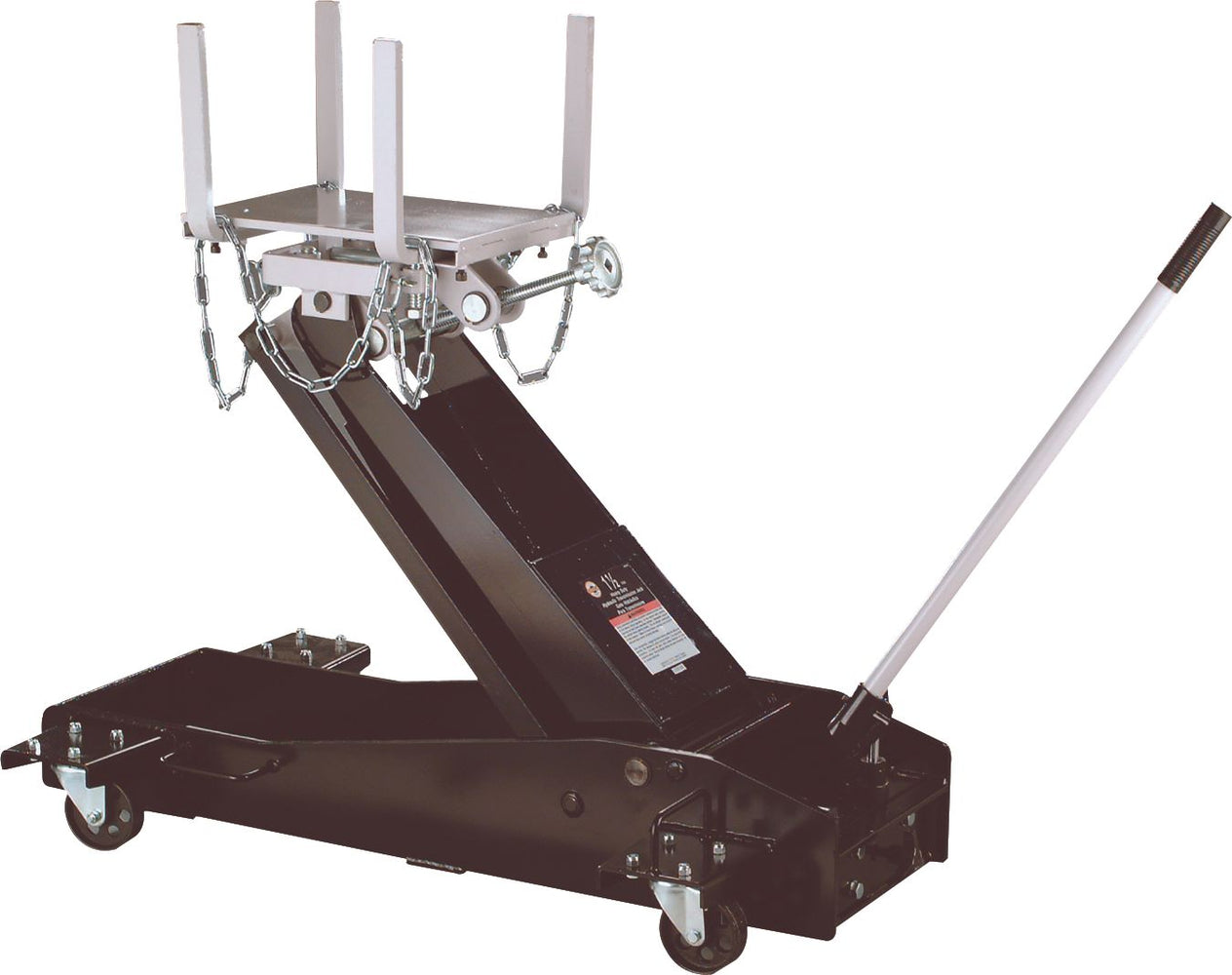

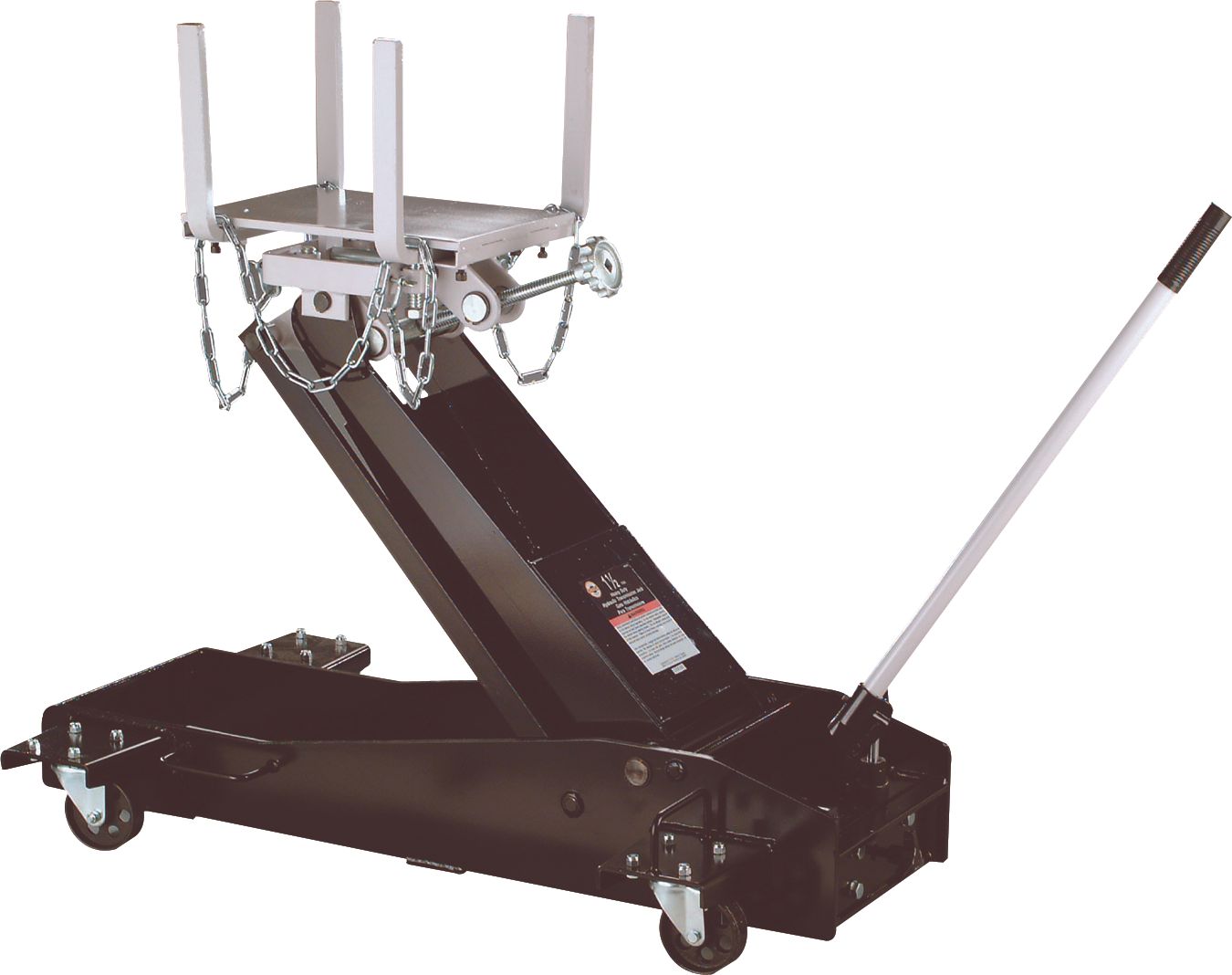

1 1/2 Ton Transmission Jack
(Pack of
1)
SKU:ZZ26029I92 Item#: ZZ26029I92
• The adjustable head can be tilted forward, backward and side to side for optimum alignment of transmission bolt patterns and pins
• Hydraulic system is protected from internal damage by a patented by-pass mechanism
• Rugged steel wheels and full swivel ball bearing casters
• U.S. Patented built-in by-pass device protects hydraulic system from overpumping damage
• Multi-adjustment knobs ensure that transmission cradle is always at the right angle to position and accept any load
• Load-restraining chain is vital for raising and lowering safety
• Four wheel casters allow easy movement, positioning of transmission jack
Product Description
• The adjustable head can be tilted forward, backward and side to side for optimum alignment of transmission bolt patterns and pins• Hydraulic system is protected from internal damage by a patented by-pass mechanism
• Rugged steel wheels and full swivel ball bearing casters
• U.S. Patented built-in by-pass device protects hydraulic system from overpumping damage
• Multi-adjustment knobs ensure that transmission cradle is always at the right angle to position and accept any load
• Load-restraining chain is vital for raising and lowering safety
• Four wheel casters allow easy movement, positioning of transmission jack
Technical Specifications
| Item#: | ZZ26029I92 |
|---|---|
| Manufacturer Model #: | 43000 |
| Type | Floor Style |
| Capacity | 1 1/2 ton (US) |
| Minimum Height | 7 7/8 " |
| Maximum Height | 37 1/4 " |
| Chassis Length | 46.75 " |
| Chassis Width | 25.625 " |
| Saddle Base | 15 1/2 x 13 1/4 " |
| Expandable Saddle Area | 24 7/8 x 19 " |
| Handle Length | 29 1/2 " |
| UNSPSC #: | 27000000 |
| TAA Compliant: | Yes |
