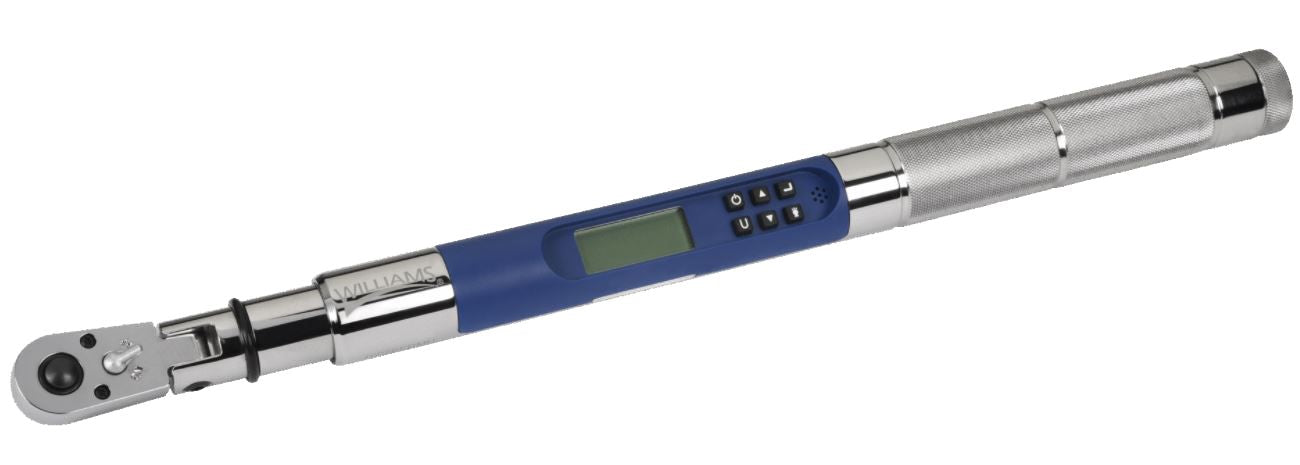

1/4" Drive Electronic Torque Wrench, 1-20 ft-lb
(Pack of
1.0)
• Sealed head keeps contamination out and lubrication in for better performance and longer tool life
• Handles are durable, lightly knurled for a tough, non-slip grip
• Quick release ratchet head with 36-tooth gear
• Dual Progressive LEDs allows user to view active torque readings and to anticipate torque target for more accurate torque
• Automatically compensates for flex related torque variances
• Easy to ready large LCD screen, LED indicator lights, audible beep and handle vibrations work together to signal when torque is within the targeted range
• Rugged all steel body is design to stand up to industrial use and each wrench is backed by a 1-year warranty
• Torque measured in seven modes ft-lb, in-lb, Nm, dNm, kg-cm, angle and torque then angle
• Fully programmable with 10 memory presets
• Includes: Blow Molded Storage Case
• N.I.S.T. traceable certificate of calibration included
• Made in USA
• Angle Accuracy: (+/- 1% of reading) + (+/- 1 DEG @ Angle Velocity >10 DEG/SEC < 180 DEG/SEC) + (+/- 1 DEG for test fixture)
• Torque accuracy:
– +/- 2% CW, +/- 3% CCW indicated value, 20% to 100 % of full scale
– +/-4% CW, +/-6 CCW indicated value, 10% to 19% of full scale
– +/- 8% CW, +/- 10% CCW indicated value, 5% to 9% of full scale
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 14-30
Frequently Bought Together
Mini Bit Ratchet Tool With Handle
Couldn't load pickup availability
Hex Key, Standard Ball Hex, 3/16"
Couldn't load pickup availability
Hex Key, Long Arm, Straight Hex, 8mm
Couldn't load pickup availability
Non-Chlorinated Brake Parts Cleaner 14oz
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 17/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 5/16"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 19/64"
Couldn't load pickup availability
1/2" Drive Electronic Torque Wrench, 12.5 - 250 ft-lb
Couldn't load pickup availability
3/4" Drive Micrometer Adjustable Torque Wrench, 100 - 600 ft-lb
Couldn't load pickup availability
1/2" Drive Micrometer Adjustable Torque Wrench, 30 - 250 ft-lb
Couldn't load pickup availability
Hex Key Set, Magic Ring, Ball Hex, 9pc
Couldn't load pickup availability
Metric 23mm, Cross-Torque Wrench
Couldn't load pickup availability
Wrench, Adjustable, Ergonomic, 12" Length
Couldn't load pickup availability
Product Description
• Sealed head keeps contamination out and lubrication in for better performance and longer tool life• Handles are durable, lightly knurled for a tough, non-slip grip
• Quick release ratchet head with 36-tooth gear
• Dual Progressive LEDs allows user to view active torque readings and to anticipate torque target for more accurate torque
• Automatically compensates for flex related torque variances
• Easy to ready large LCD screen, LED indicator lights, audible beep and handle vibrations work together to signal when torque is within the targeted range
• Rugged all steel body is design to stand up to industrial use and each wrench is backed by a 1-year warranty
• Torque measured in seven modes ft-lb, in-lb, Nm, dNm, kg-cm, angle and torque then angle
• Fully programmable with 10 memory presets
• Includes: Blow Molded Storage Case
• N.I.S.T. traceable certificate of calibration included
• Made in USA
• Angle Accuracy: (+/- 1% of reading) + (+/- 1 DEG @ Angle Velocity >10 DEG/SEC < 180 DEG/SEC) + (+/- 1 DEG for test fixture)
• Torque accuracy:
– +/- 2% CW, +/- 3% CCW indicated value, 20% to 100 % of full scale
– +/-4% CW, +/-6 CCW indicated value, 10% to 19% of full scale
– +/- 8% CW, +/- 10% CCW indicated value, 5% to 9% of full scale
Technical Specifications
| Item#: | 19669 |
|---|---|
| Type | Torque Wrench |
| Drive Size | 1/4 " |
| Torque Range (Ft.-lbs.) | 1 - 20 |
| Torque Range (in.-lbs.) | 12 - 240 |
| Torque Range (Nm) | 1.36 - 27.12 |
| Torque Range (kg. cm.) | 13.8 - 276 |
| Length | 11.3 " |
| UNSPSC #: | 27111715 |
| TAA Compliant: | Yes |
| Weight: | 2.53 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
