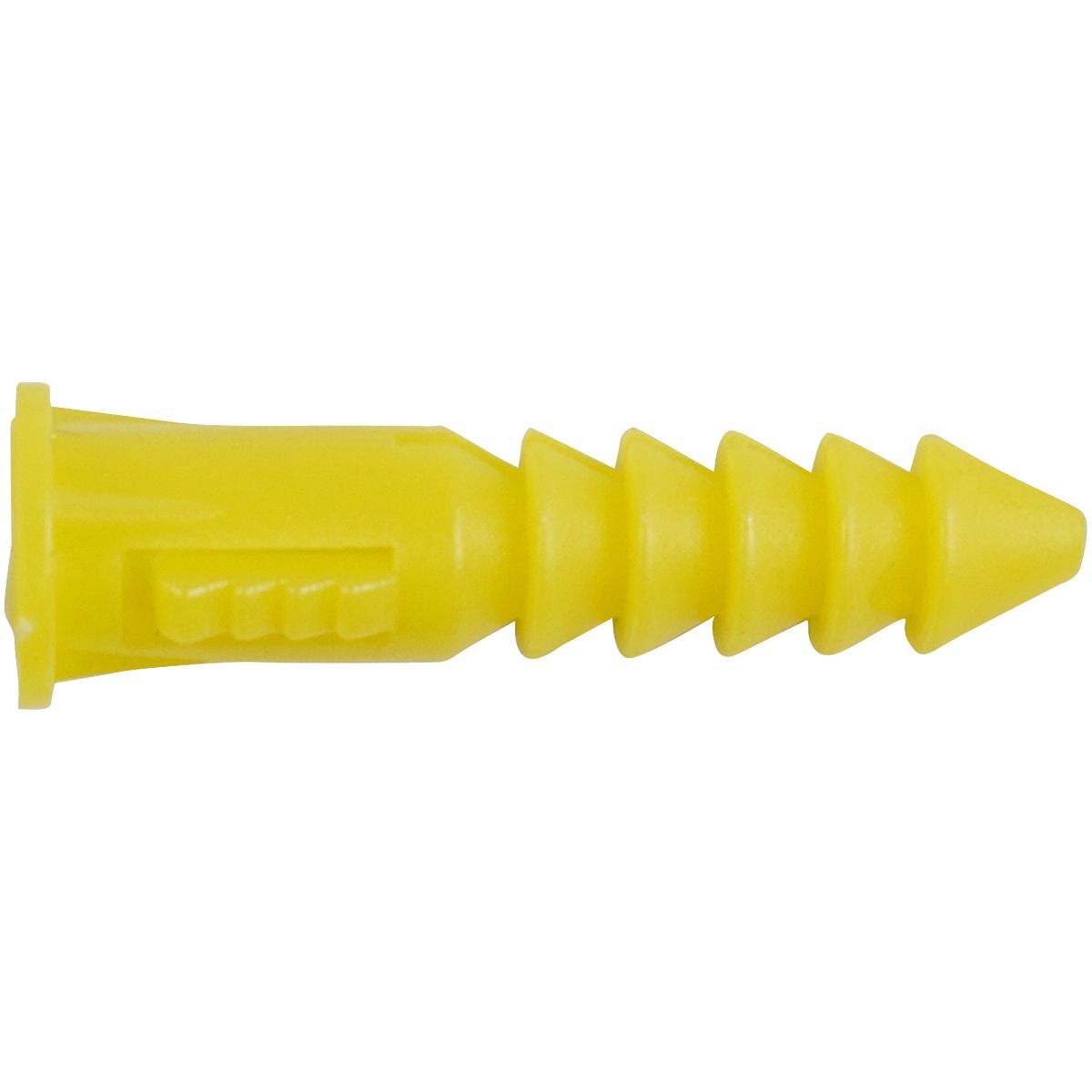

1/4x1-1/4 Yellow Ribbed Plastic Wall Anchor
(Pack of
100)
SKU:DY09580113 Item#: DY09580113
• Works in concrete, brick, masonry or drywall
• Ribbed body expands and “bites in'' to the gripping surface to give a very dependable fastening application
• Safe for use in blind applications where electrical wiring might be present
• Yellow plastic anchor has a ribbed body plus gripping tabs on each side of the neck
• Minimum material thickness: 3/8”
Note: Strengths are dependent on size of anchor and strength of material and will vary depending on application. Strengths are higher on thicker materials.
Couldn't load pickup availability
Catalog page#: LE-14
Frequently Bought Together
Masonry Anchor TORX® Flat Head Steel 3/16 x 2-1/4"
Couldn't load pickup availability
Pin Drive Anchor Mushroom Head Nylon 1/4 x 3/4"
Couldn't load pickup availability
Wing-Type Toggle Bolt Anchor Steel #10-24 x 4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Self-Drilling Screw Hex Head #12-14 x 1"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 5/16-18
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Tubular Anchor Plastic Blue #13 to #15
Couldn't load pickup availability
Medium Diameter Screw Anchor 3/8 to 1/2" Grip
Couldn't load pickup availability
Wing Type Toggle Bolt Round Head 3/8-16 x 4"
Couldn't load pickup availability
Product Description
• Works in concrete, brick, masonry or drywall• Ribbed body expands and “bites in'' to the gripping surface to give a very dependable fastening application
• Safe for use in blind applications where electrical wiring might be present
• Yellow plastic anchor has a ribbed body plus gripping tabs on each side of the neck
• Minimum material thickness: 3/8”
Note: Strengths are dependent on size of anchor and strength of material and will vary depending on application. Strengths are higher on thicker materials.
Technical Specifications
| Item#: | DY09580113 |
|---|---|
| Length | 1-1/4 " |
| Type | Plastic Screw Anchor |
| Size | 1/4 x 1-1/4 |
| Diameter | 1/4 " |
| Material | Plastic |
| Drill Size | 1/4 " |
| Grip Range | 3/8 and up " |
| Color | Yellow |
| Minimum Wall Thickness | 3/8 " |
| Screw Size | #8, #10 or #12 |
| Tensile Pull-Out Strength | 50 - 70 lb |
| Shear Proof Test Load | 75 - 150 lb |
| UNSPSC #: | 31162103 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
