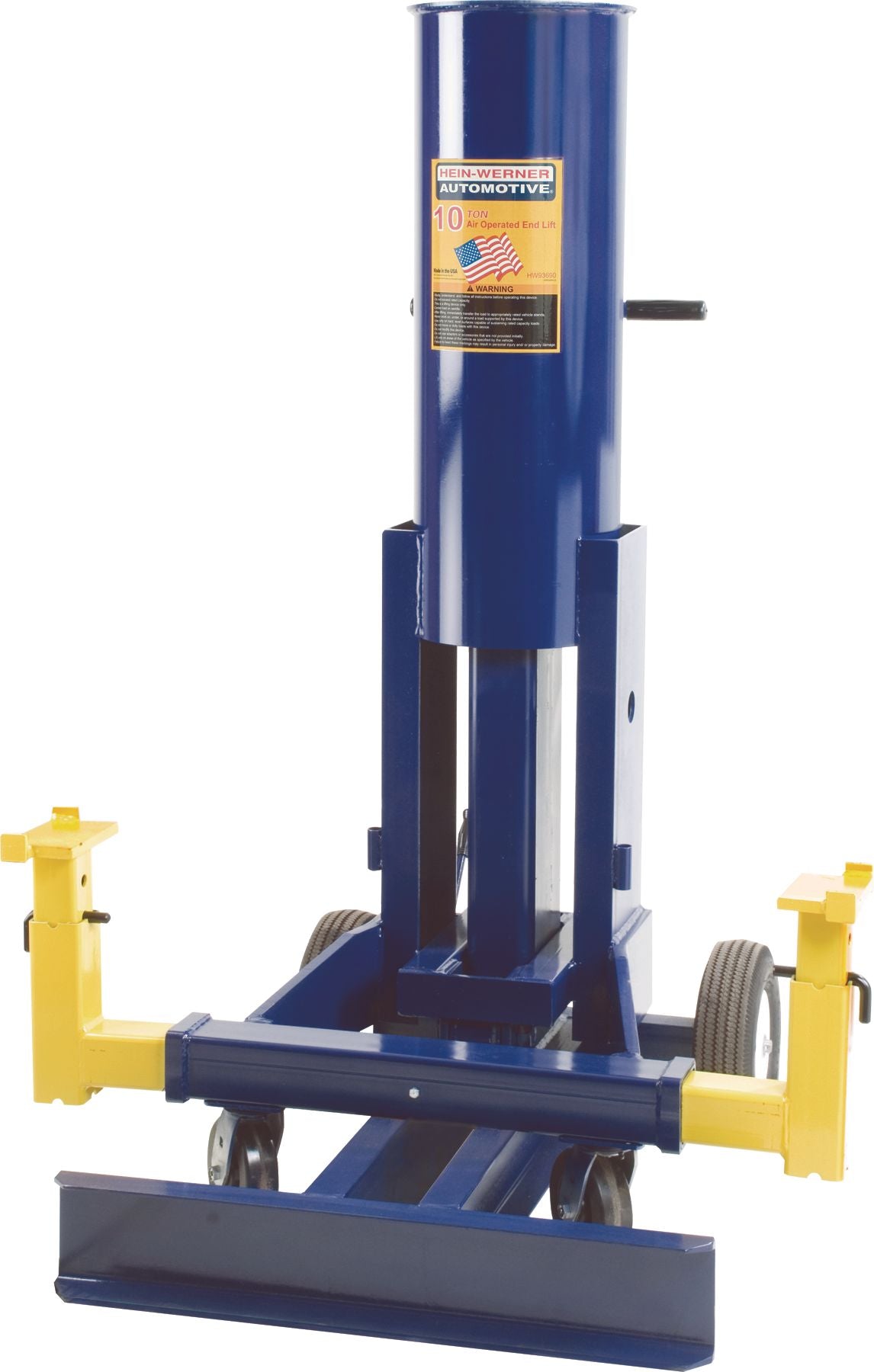

10 Ton Air Operated End Lift
(Pack of
1)
SKU:ZZ26919I92 Item#: ZZ26919I92
• Three-way heavy duty brass air valve provides precision control when lifting or lowering a vehicle
• Safety latch design (in back) provides six different automatic safety lock positions to prevent unintentional lowering of load
• Adjustable lifting arm can be extended to desired position
• Two front swivel caster wheels and two 12″ diameter semi-pneumatic rear tires provide easy maneuvering
• Heavy duty wide base for stability and strength
Product Description
• Three-way heavy duty brass air valve provides precision control when lifting or lowering a vehicle• Safety latch design (in back) provides six different automatic safety lock positions to prevent unintentional lowering of load
• Adjustable lifting arm can be extended to desired position
• Two front swivel caster wheels and two 12″ diameter semi-pneumatic rear tires provide easy maneuvering
• Heavy duty wide base for stability and strength
Technical Specifications
| Item#: | ZZ26919I92 |
|---|---|
| Manufacturer Model #: | HW93690 |
| Type | End Lift |
| Capacity | 10 ton (US) |
| Minimum Height | 18 1/2 " |
| Maximum Height | 50 1/2 " |
| Distance (Lifting to Front of Saddle) | 17 " |
| Minimum Air Pressure for Rated Load | 200 PSI |
| Power Raise | 28 " |
| Saddle Spread | 28 - 53 " |
| UNSPSC #: | 27000000 |
| TAA Compliant: | Yes |
