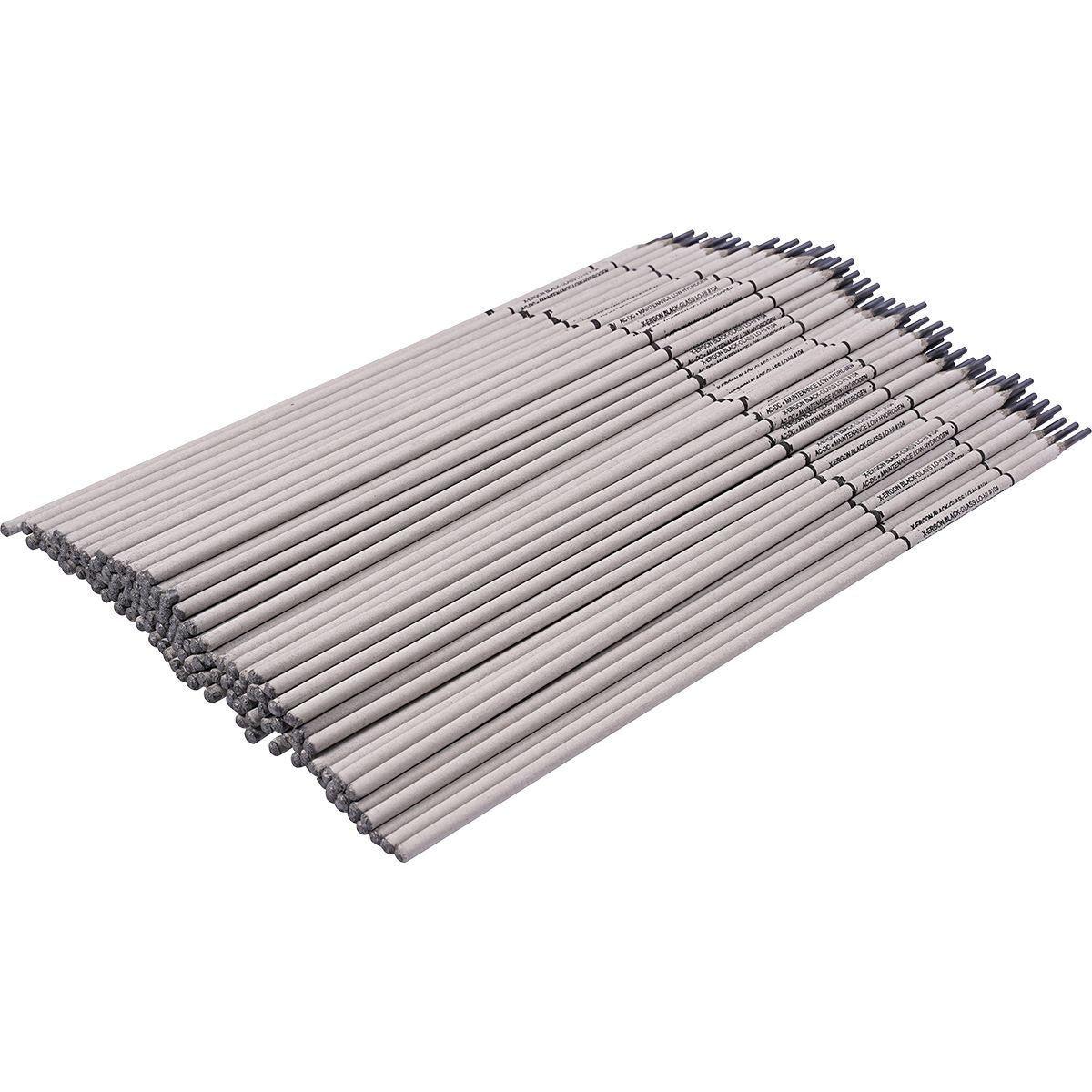

104 Mild Steel Low Hydrogen Stick Electrode
(Pack of
10)
Designed for maintenance. Features a special Chem-A-Tized2 flux coating that produces a slag that consumes contaminants like lava including rust, grease, dirt and paint. The low hydrogen coating makes the weld deposit tough and strong, yet still machinable.
• Superior Cleaning Action – The Black Glass slag consumes contaminates like lava
• Low-Hydrogen Toughness – Designed for tough maintenance applications
• Special double-coated Chem-A-Tized coating provides better arc control, low spatter and better bead appearance
• Has the cleaners in the outside coating and the arc stabilizers on the inside, where they’re needed to improve performance
• Operates on AC or DCEP
• Easy to use in all positions whether uphill, horizontal or overhead
• Designed to Operate at Lower Amperage – Reduced distortion and burn-through tenance applications
• Tensile Strength: Up to 87,000 PSI/600 Mpa
• Yield Strength: 72,000 PSI/496 Mpa
• Elongation: 31%
• Machinability: Excellent
• Hardness: 86 Rb
• Impact Resistance: 50 ft.-lbs. @ -20°F/-29°C
• Current: DCEP (DC+) or AC
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Catalog page#: LE-127
Frequently Bought Together
106 Mild Steel All Purpose Electrode 1/16
Couldn't load pickup availability
664 Self Shielding Mild Steel Flux Core Mig Wire .035X10LB
Couldn't load pickup availability
660 Mild Steel Flux Core Low Hydrogen Mig Wire 1/16X33Lb
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Single Flint Striker
Couldn't load pickup availability
ER4043 Aluminum MIG Welding Wire 0.035"
Couldn't load pickup availability
24A-62 MIG Welding Nozzle 5/8"
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 1/8 3/32 1LB EA
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
163 Arc-Cut Synthetic Carbon Arc Electrode
Couldn't load pickup availability
Product Description
Designed for maintenance. Features a special Chem-A-Tized2 flux coating that produces a slag that consumes contaminants like lava including rust, grease, dirt and paint. The low hydrogen coating makes the weld deposit tough and strong, yet still machinable.• Superior Cleaning Action – The Black Glass slag consumes contaminates like lava
• Low-Hydrogen Toughness – Designed for tough maintenance applications
• Special double-coated Chem-A-Tized coating provides better arc control, low spatter and better bead appearance
• Has the cleaners in the outside coating and the arc stabilizers on the inside, where they’re needed to improve performance
• Operates on AC or DCEP
• Easy to use in all positions whether uphill, horizontal or overhead
• Designed to Operate at Lower Amperage – Reduced distortion and burn-through tenance applications
• Tensile Strength: Up to 87,000 PSI/600 Mpa
• Yield Strength: 72,000 PSI/496 Mpa
• Elongation: 31%
• Machinability: Excellent
• Hardness: 86 Rb
• Impact Resistance: 50 ft.-lbs. @ -20°F/-29°C
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG1044010B |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 1/8 " |
| Elongation | 31 % |
| Base Metal | Mild And Medium Carbon Steel |
| Hardness | 86 HRB |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 11.11 lb |
