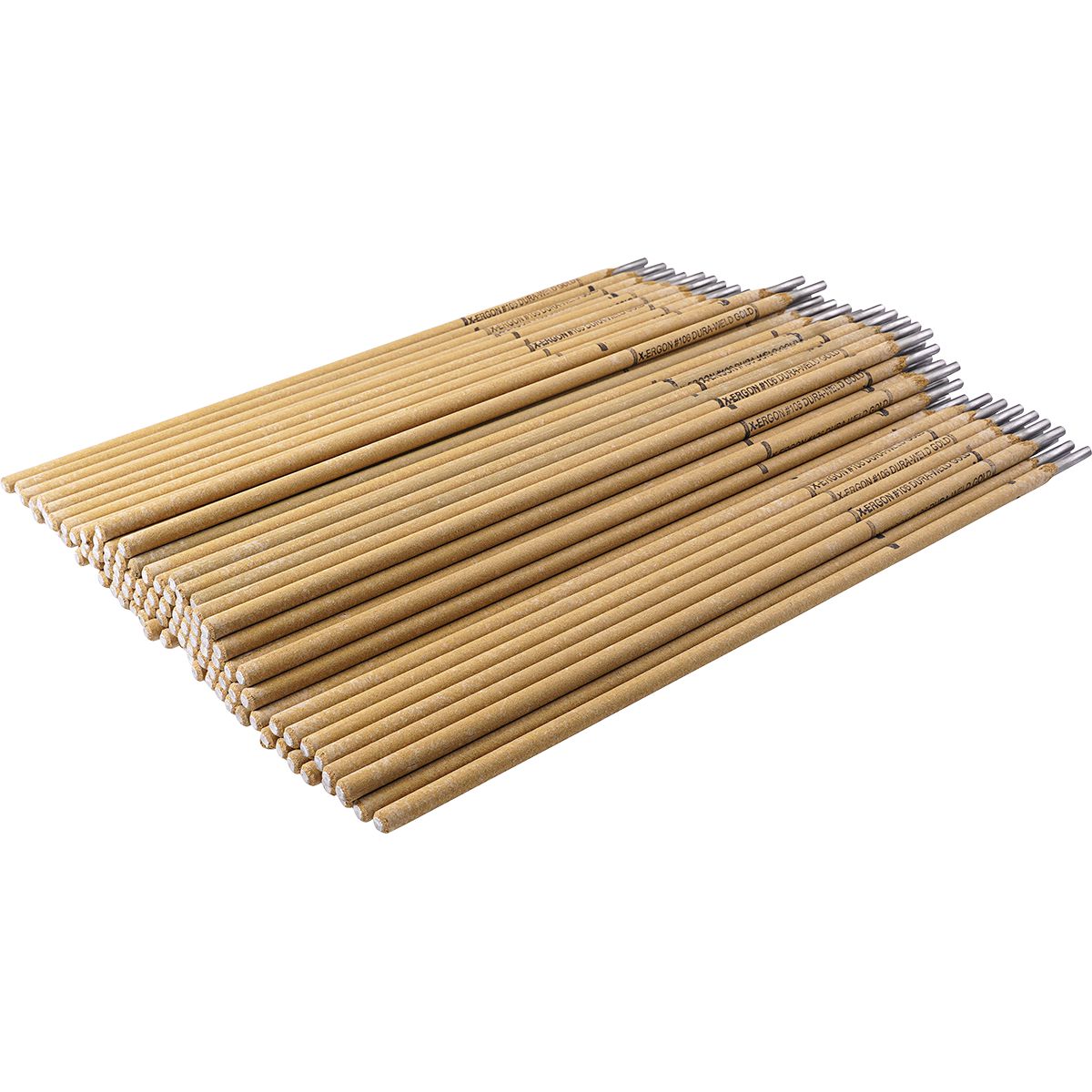

106 Mild Steel Stick Electrode Chematized Flux / Moisture Proof/Polarity Dc Or Ac 1/16"
(Pack of
15)
SKU:EG1067000G Item#: EG1067000G
A special Chem-A-Tized2 flux coating that provides the best all-position performance of any steel electrode and allows it to operate at lower amperages. The flux has cleaning agents that remove oxides and contaminates from the weld, including rust, grease and paint. Even welds through water.
• Moisture Proof Flux – Guaranteed to never go bad when stored
• Superior all-position weldability with the exclusive Chem-A-Tized2 process
• Welds Contaminated Steel – Less pre-cleaning and weld clean-up
• Very Easy to Use – Practically welds by itself with little or no-spatter
• Tensile Strength: Up to 83,000 PSI/572 Mpa
• Yield Strength: 69,000 PSI/476 Mpa
• Elongation: 25%
• Machinability: Excellent
• Hardness: 85 Rb
• Impact: 20 ft.-lbs.
• Current: DC or AC
Couldn't load pickup availability
Catalog page#: LE-127
Frequently Bought Together
106 Mild Steel All Purpose Electrode 5/64
Couldn't load pickup availability
103 The Ultimate Low Hydrogen Mild Steel Electrode 5/32
Couldn't load pickup availability
660 Mild Steel Flux Core Low Hydrogen Mig Wire .045X33Lb
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
345 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
510 Aluminum TIG Wire 1/16"
Couldn't load pickup availability
163 Arc-Cut Synthetic Carbon Arc Electrode
Couldn't load pickup availability
E6011 Mild/Carbon Steel Stick Electrode 5/32"
Couldn't load pickup availability
606 Duraweld M Mig Wire Maintenance Grade Mild Steel Solid Mig Wire
Couldn't load pickup availability
Product Description
A special Chem-A-Tized2 flux coating that provides the best all-position performance of any steel electrode and allows it to operate at lower amperages. The flux has cleaning agents that remove oxides and contaminates from the weld, including rust, grease and paint. Even welds through water.• Moisture Proof Flux – Guaranteed to never go bad when stored
• Superior all-position weldability with the exclusive Chem-A-Tized2 process
• Welds Contaminated Steel – Less pre-cleaning and weld clean-up
• Very Easy to Use – Practically welds by itself with little or no-spatter
• Tensile Strength: Up to 83,000 PSI/572 Mpa
• Yield Strength: 69,000 PSI/476 Mpa
• Elongation: 25%
• Machinability: Excellent
• Hardness: 85 Rb
• Impact: 20 ft.-lbs.
• Current: DC or AC
Technical Specifications
| Item#: | EG1067000G |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Diameter | 1/16 " |
| Tensile Strength | 83,000 PSI |
| Elongation | 25 % |
| Base Metal | Mild And Medium Carbon Steel |
| Hardness | 85 HRB |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 15.34 lb |
