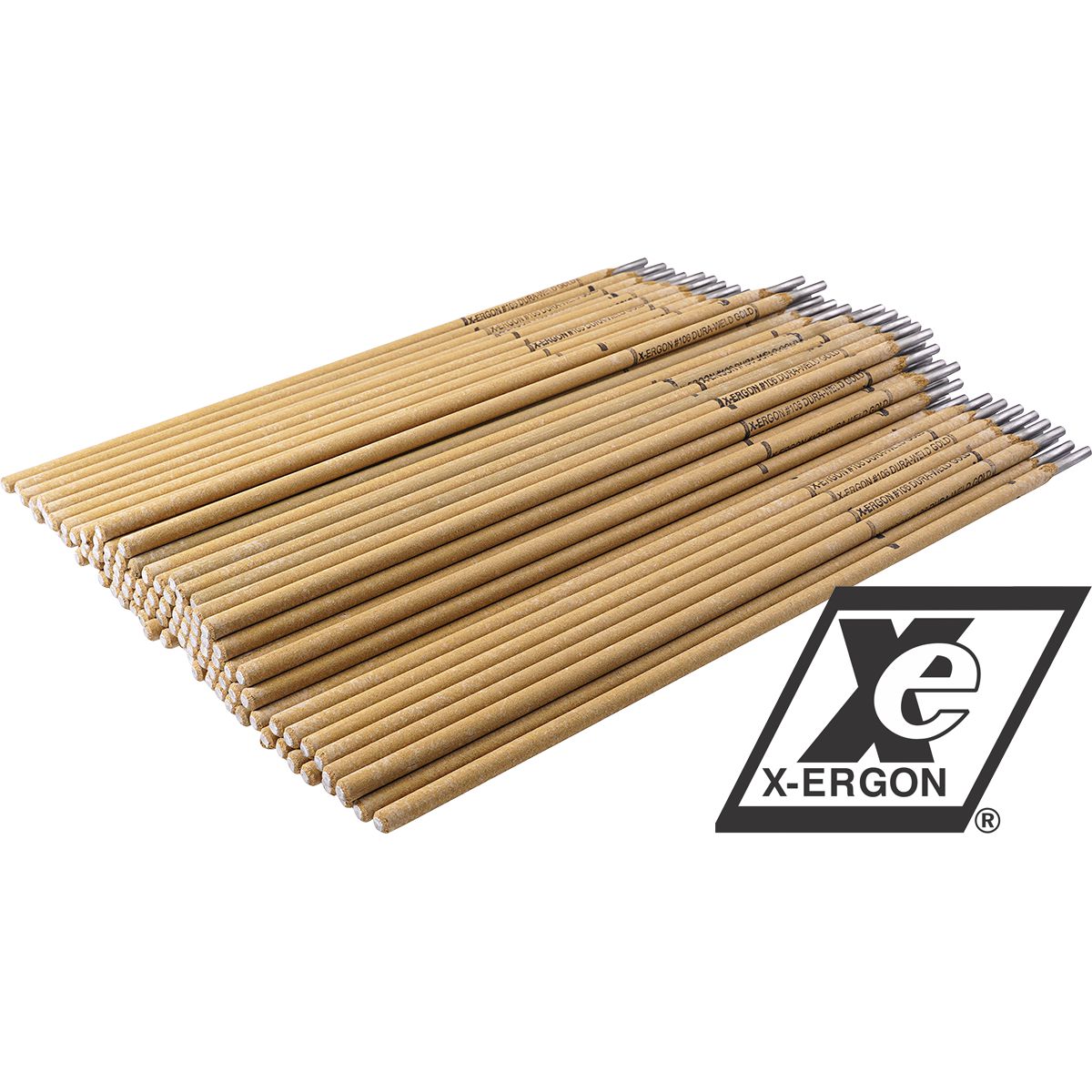

106 Mild Steel All Purpose Electrode 1/16
106 Mild Steel All Purpose Electrode 1/16

Mild Steel Stick Electrode Chematized Flux / Moisture Proof/Polarity Dc Or Ac 1/8"
(Pack of 15)

Item#: EG1064000G

Lawson Products

A special Chem-A-Tized2 flux coating that provides the best all-position performance of any steel electrode and allows it to operate at lower amperages. The flux has cleaning agents that remove oxides and contaminates from the weld, including rust, grease and paint. Even welds through water.
• Moisture Proof Flux – Guaranteed to never go bad when stored
• Superior all-position weldability with the exclusive Chem-A-Tized2 process
• Welds Contaminated Steel – Less pre-cleaning and weld clean-up
• Very Easy to Use – Practically welds by itself with little or no-spatter
• Tensile Strength: Up to 83,000 PSI/572 Mpa
• Yield Strength: 69,000 PSI/476 Mpa
• Elongation: 25%
• Machinability: Excellent
• Hardness: 85 Rb
• Impact: 20 ft.-lbs.
• Current: DC or AC

Read More
Check Availability

California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov

Catalog page#: LE-127

Frequently Bought Together

AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035

AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 2lb

Item#: 1693502
311 Mild and Carbon Steel MIG Welding Wire 0.035

311 Mild and Carbon Steel MIG Welding Wire 0.035"

Item#: CW1763
360 Mild and Carbon Steel Stick Rod Electrode 1/8

360 Mild and Carbon Steel Stick Rod Electrode 1/8"

Item#: CW3330
Hex Nut Grade 8 Alloy Steel 1-8, ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/2

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511
Rosin Core Solder 1/16

Rosin Core Solder 1/16"

Item#: 20543
Rosin Core Solder 1/16

Rosin Core Solder 1/16"

Item#: 20545
331 Mild and Carbon Steel MIG Welding Wire 0.030

331 Mild and Carbon Steel MIG Welding Wire 0.03"

Item#: CW5130
163 Arc-Cut Synthetic Carbon Arc Electrode

163 Arc-Cut Synthetic Carbon Arc Electrode

Item#: EG16300375
345 Tool Steel TIG Wire 0.035

345 Tool Steel TIG Wire 0.035"

Item#: CW1983
510 Aluminum TIG Wire 1/16

510 Aluminum TIG Wire 1/16"

Item#: CW1016

Product Description

A special Chem-A-Tized2 flux coating that provides the best all-position performance of any steel electrode and allows it to operate at lower amperages. The flux has cleaning agents that remove oxides and contaminates from the weld, including rust, grease and paint. Even welds through water.
• Moisture Proof Flux – Guaranteed to never go bad when stored
• Superior all-position weldability with the exclusive Chem-A-Tized2 process
• Welds Contaminated Steel – Less pre-cleaning and weld clean-up
• Very Easy to Use – Practically welds by itself with little or no-spatter
• Tensile Strength: Up to 83,000 PSI/572 Mpa
• Yield Strength: 69,000 PSI/476 Mpa
• Elongation: 25%
• Machinability: Excellent
• Hardness: 85 Rb
• Impact: 20 ft.-lbs.
• Current: DC or AC

Technical Specifications

Item#: EG1064000G
Welding Process Stick
Type Stick
Diameter 1/8 "
Tensile Strength 83,000 PSI
Yield Strength 69,000 PSI
Base Metal Mild & Carbon Steel
Hardness 85 HRB
Polarity 25 %
Size 1/8 "
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 30.49 lb
