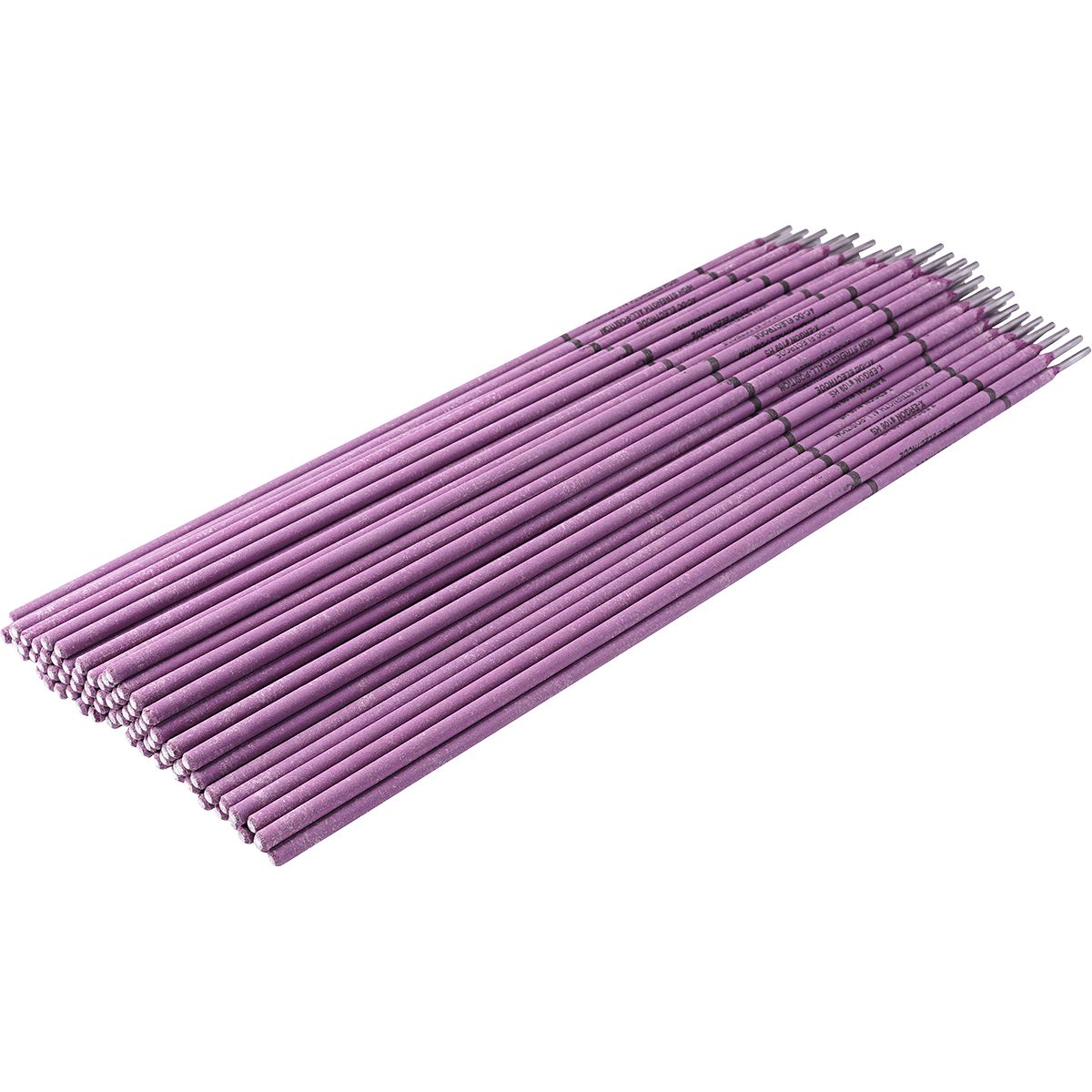

109Hs All Position/Minimal Pre Cleaning/ High Strength/ Polarity Dc/Ac 13%Elongation / Tensile 103000
(Pack of
5)
SKU:EG10950000 Item#: EG10950000
Excellent for thick-to-thin joints with superior all-position welding characteristics when compared to most alloy steel electrodes.
• Minimal Precleaning – Welds through grease, rust, paint, and even steels that have moisture on them
• Dual-Phase – Welding characteristics will change depending on the current used, allowing the welder complete control over the joining process
• Excellent for small AC machines
• Penetrating arc on DC, but soft on AC
• Easy slag removal
• Tensile Strength: 103,000 PSI/710 Mpa
• Yield Strength: 87,000 PSI/600 Mpa
• Hardness: 96 Rb
• Elongation: 13%
• Current: DC or AC
• Machinability: Good
Remove cracked or fatigued metal by grinding or gouging with Arc-Prep #161 electrode. Bevel heavy sections before welding. Use AC or DC current. Use a contact or a minimum arc length with a weave or stringer bead technique. Pass-over-pass can be used without chipping slag in multi-pass welds. Allow to cool slowly.
Frequently Bought Together
106 Mild Steel All Purpose Electrode 3/16
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode 5/64
Couldn't load pickup availability
103 The Ultimate Low Hydrogen Mild Steel Electrode 5/32
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
345 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
163 Arc-Cut Synthetic Carbon Arc Electrode
Couldn't load pickup availability
E6011 Mild/Carbon Steel Stick Electrode 5/32"
Couldn't load pickup availability
606 Duraweld M Mig Wire Maintenance Grade Mild Steel Solid Mig Wire
Couldn't load pickup availability
Product Description
Excellent for thick-to-thin joints with superior all-position welding characteristics when compared to most alloy steel electrodes.• Minimal Precleaning – Welds through grease, rust, paint, and even steels that have moisture on them
• Dual-Phase – Welding characteristics will change depending on the current used, allowing the welder complete control over the joining process
• Excellent for small AC machines
• Penetrating arc on DC, but soft on AC
• Easy slag removal
• Tensile Strength: 103,000 PSI/710 Mpa
• Yield Strength: 87,000 PSI/600 Mpa
• Hardness: 96 Rb
• Elongation: 13%
• Current: DC or AC
• Machinability: Good
Remove cracked or fatigued metal by grinding or gouging with Arc-Prep #161 electrode. Bevel heavy sections before welding. Use AC or DC current. Use a contact or a minimum arc length with a weave or stringer bead technique. Pass-over-pass can be used without chipping slag in multi-pass welds. Allow to cool slowly.
Technical Specifications
| Item#: | EG10950000 |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Diameter | 3/32 " |
| Tensile Strength | 103,000 PSI |
| Elongation | 13 % |
| Base Metal | Mild And Medium Carbon Steel |
| Hardness | 96 HRB |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.0 lb |
