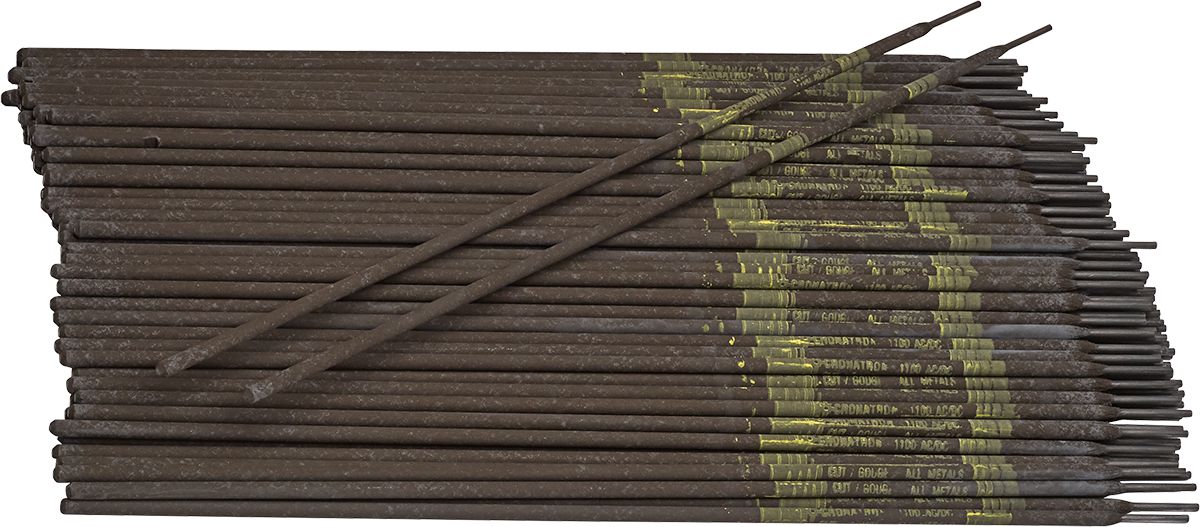

1100 Gouging and Cutting Stick Rod Electrode, 100 to 170 Amps, DCSP/AC Polarity, Smooth Cuts and Efficient Metal Removal, 3/32"
(Pack of
10)
The ultimate cutting, gouging, piercing, chamfering and grooving electrodes for any type of metal, including stainless steel, Monel®, cast iron and aluminum. Completely outclasses ordinary gouging and cutting electrodes.
Superior Advantages
• Provides straight, smooth cuts and efficient metal removal
• Prevents slag pileup and sticking
• Produces a ready-to-weld, clean, carbon-free surface
• Operates with standard welding machines
Polarity: AC or DC Straight
The Ultimate Disintegrator Alloy
Typical Applications
• Cast iron preparation
• Frozen bearing removal
• Vee out cracks
• Pierce and align holes
• Bevel corners, chamfer edges
• Remove old welds
Usage ProcedureUse AC or DC straight polarity only. Point the electrode in the direction of travel and ignite the arc. For shallow chamfers, move quickly along line of cut. To obtain a deeper groove, make successive passes 1/2 the diameter of the electrode. For piercing, place rod in desired position and allow the blasting effect of electrode to penetrate metal.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Catalog page#: 13-3
Frequently Bought Together
701 Mild and Carbon Steel Stick Rod Electrode
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
E6010 3/16 Mild Steel Electrode
Couldn't load pickup availability
3" Pneumatic Cut-Off Tool
Couldn't load pickup availability
1/4" Right Angle Die Grinder
Couldn't load pickup availability
1/2" Drive Air Impact Wrench- Pistol Grip
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Non-Chlorinated Brake Parts Cleaner 14oz
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
45 Silver Bare Brazing Rod 1/8"
Couldn't load pickup availability
H3 Martensitic Hard Facing MIG Welding Wire 0.045"
Couldn't load pickup availability
Self Ignighting Propane Torch Head
Couldn't load pickup availability
375 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
Dissimilar Steel Stick Rod Electrode Kit
Couldn't load pickup availability
Product Description
The ultimate cutting, gouging, piercing, chamfering and grooving electrodes for any type of metal, including stainless steel, Monel®, cast iron and aluminum. Completely outclasses ordinary gouging and cutting electrodes.Superior Advantages
• Provides straight, smooth cuts and efficient metal removal
• Prevents slag pileup and sticking
• Produces a ready-to-weld, clean, carbon-free surface
• Operates with standard welding machines
Polarity: AC or DC Straight
The Ultimate Disintegrator Alloy
Typical Applications
• Cast iron preparation
• Frozen bearing removal
• Vee out cracks
• Pierce and align holes
• Bevel corners, chamfer edges
• Remove old welds
Usage ProcedureUse AC or DC straight polarity only. Point the electrode in the direction of travel and ignite the arc. For shallow chamfers, move quickly along line of cut. To obtain a deeper groove, make successive passes 1/2 the diameter of the electrode. For piercing, place rod in desired position and allow the blasting effect of electrode to penetrate metal.
Technical Specifications
| Item#: | CW1907 |
|---|---|
| Welding Process | Stick |
| Type | Cutting/Gouging |
| Diameter | 3/32 " |
| Length | 14 " |
| Base Metal | Mild & Carbon Steel |
| Polarity | DCSP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.5 lb |
