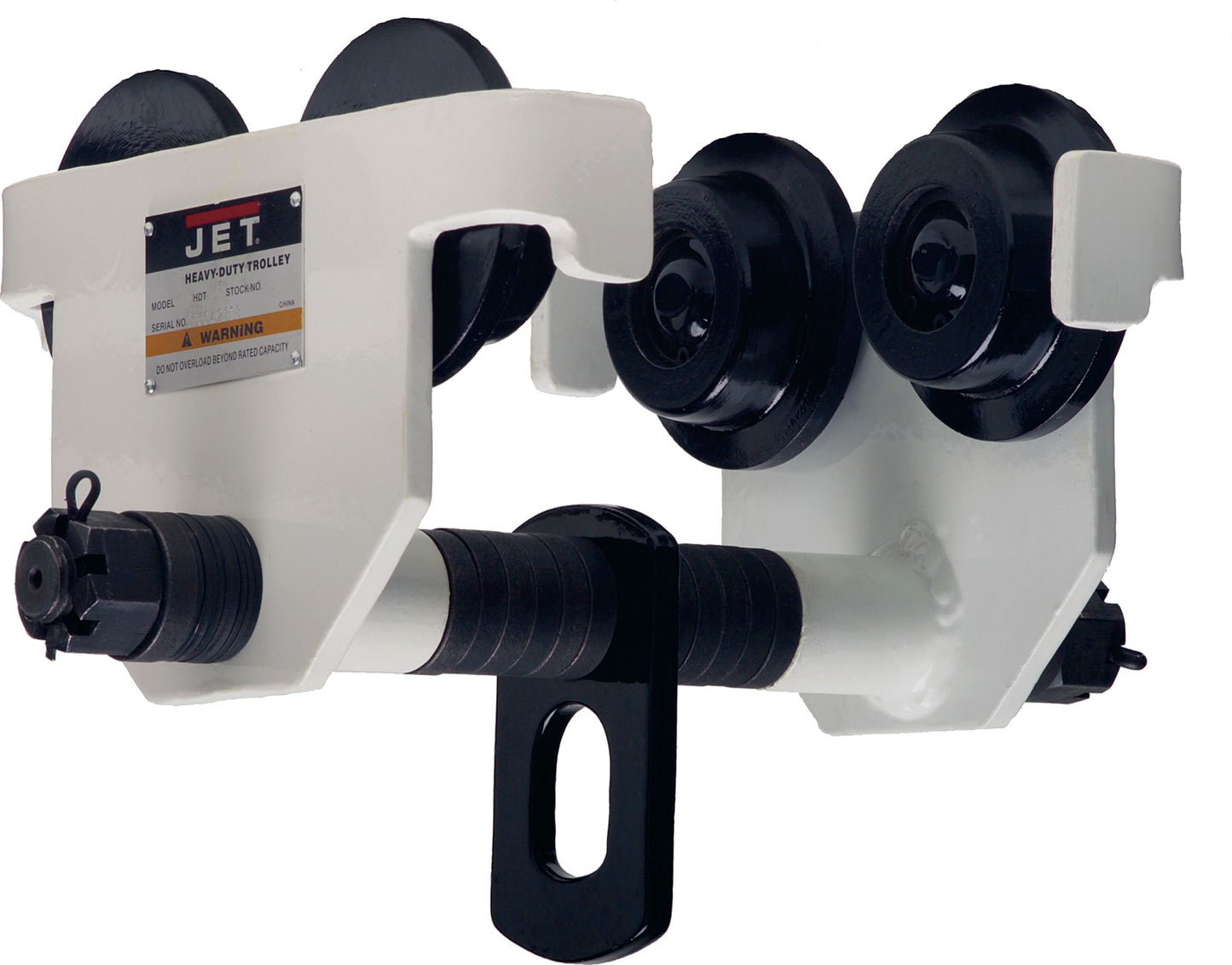

2 Ton Hd Manual Trolley
(Pack of
1)
SKU:ZZ25019H25 Item#: ZZ25019H25
Available up to 5 ton capacities, the HDT Series is a solid design for multiple beam types and widths.
• Welded all-steel frame and powder coat finish provide maximum durability and protection
• Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
• Built-in bumper guards increase user safety and extend the life of the trolley
• Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers
• Complies with OSHA regulations, ANSI / ASME B30.11 and B30.17 standards
• Certification- Load tested to 125% of capacity with certificate
Frequently Bought Together
Series 622 Hand Chain Hoist, 1/2 Ton, 15' Lift
Couldn't load pickup availability
Mini Lever-Action Chain Hoist/Puller
Couldn't load pickup availability
1Ton,1Ph,15"Lift 230V Chain Hoist
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 50
Couldn't load pickup availability
Tarp Strap Epdm Rubber with Hooks 35" Long
Couldn't load pickup availability
Tuff-Edge® Web Sling, Polyester, Silver, 4' Length
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
1/2 Ton Hd Manual Trolley
Couldn't load pickup availability
H.D.Plain Trolley,1-1/2Ton Cpcty
Couldn't load pickup availability
1 Ton Hd Manual Trolley
Couldn't load pickup availability
Product Description
Available up to 5 ton capacities, the HDT Series is a solid design for multiple beam types and widths.• Welded all-steel frame and powder coat finish provide maximum durability and protection
• Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
• Built-in bumper guards increase user safety and extend the life of the trolley
• Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers
• Complies with OSHA regulations, ANSI / ASME B30.11 and B30.17 standards
• Certification- Load tested to 125% of capacity with certificate
Technical Specifications
| Item#: | ZZ25019H25 |
|---|---|
| Manufacturer Model #: | 2-HDT |
| Style | Manual |
| Series | HDT |
| Load Capacity | 4,400 lb |
| Beam Flange Width | 3-1/4 - 8 " |
| Beam Height | 6 - 24-1/2 " |
| Curve Radius Min. | 43 " |
| UNSPSC #: | 27000000 |
| TAA Compliant: | No |
