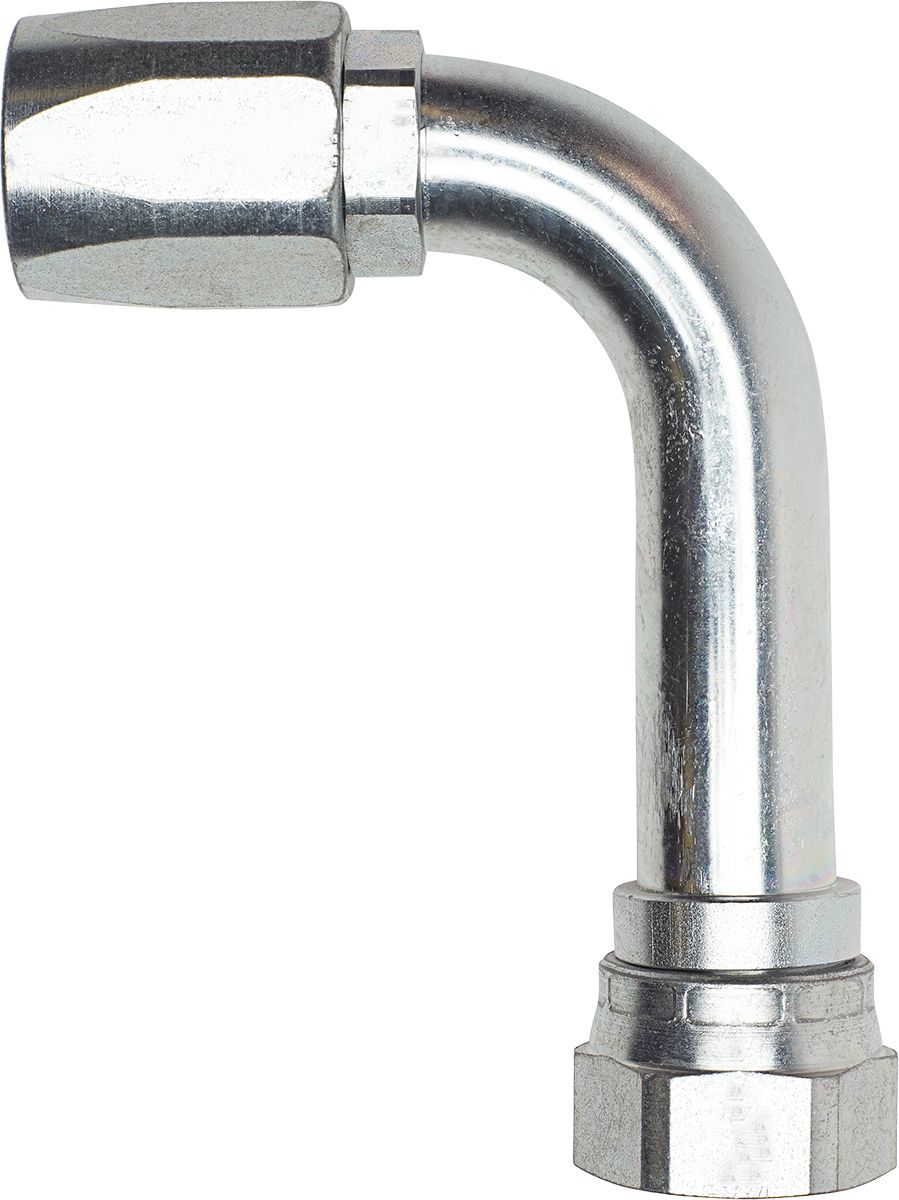

247N Series Field Attachable Elbow, Carbon Steel, Female JIC 37°, Flare 90°, 1/2" (-10) x 7/8-14 (-10)
(Pack of
1)
SKU:82856 Item#: 82856
Power Steering Fittings – Special SAE Male Inverted Flares
• Fittings are mandrelless-type
82853 through 82856 – Universal (SAE 45° or JIC 37°)82857 and 82858 – SAE 45°82859 through 82861 – JIC 37°
• For use with General-Purpose Truck and Hydraulic Hose H069 (Lawson 64470 Series)
Couldn't load pickup availability
Catalog page#: 8-119
Frequently Bought Together
Z Series Crimp-On Hose End 1/4" x 7/16-20
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/4" x 1-1/16-12
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 7/16-20
Couldn't load pickup availability
Hydraulic Cap Nut, 3/4-16"(08) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
Couldn't load pickup availability
Hex Head Plug Brass 3/8-18 Male NPT
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Product Description
Power Steering Fittings – Special SAE Male Inverted Flares• Fittings are mandrelless-type
82853 through 82856 – Universal (SAE 45° or JIC 37°)82857 and 82858 – SAE 45°82859 through 82861 – JIC 37°
• For use with General-Purpose Truck and Hydraulic Hose H069 (Lawson 64470 Series)
Technical Specifications
| Item#: | 82856 |
|---|---|
| Manufacturer Model #: | 24710N-650 |
| Manufacturer Series Number | 247 N Series |
| Attachment Method | Field Attachable |
| Fitting Dimension A (Hose) | 1/2 (-10) " |
| Dash Size | -10 |
| Gender | Female |
| Fitting End Style | JIC 37 Degree Flare |
| Fitting End Type | Swivel |
| Fitting Angle | 90 ° |
| Fitting Drop Length | Long |
| Fitting Dimension B (Working End) | 7/8-14 (-10) |
| O.D. Tube Size | 5/8 " |
| Size | (-10)X(-10) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.48 lb |
