263 Low Temperature Cadium Free Easy Flowing Silver Alloy High Strength Tensile 70000 19.4% Iacs 22% Elongation
(Pack of
1)
SKU:EG26370001 Item#: EG26370001

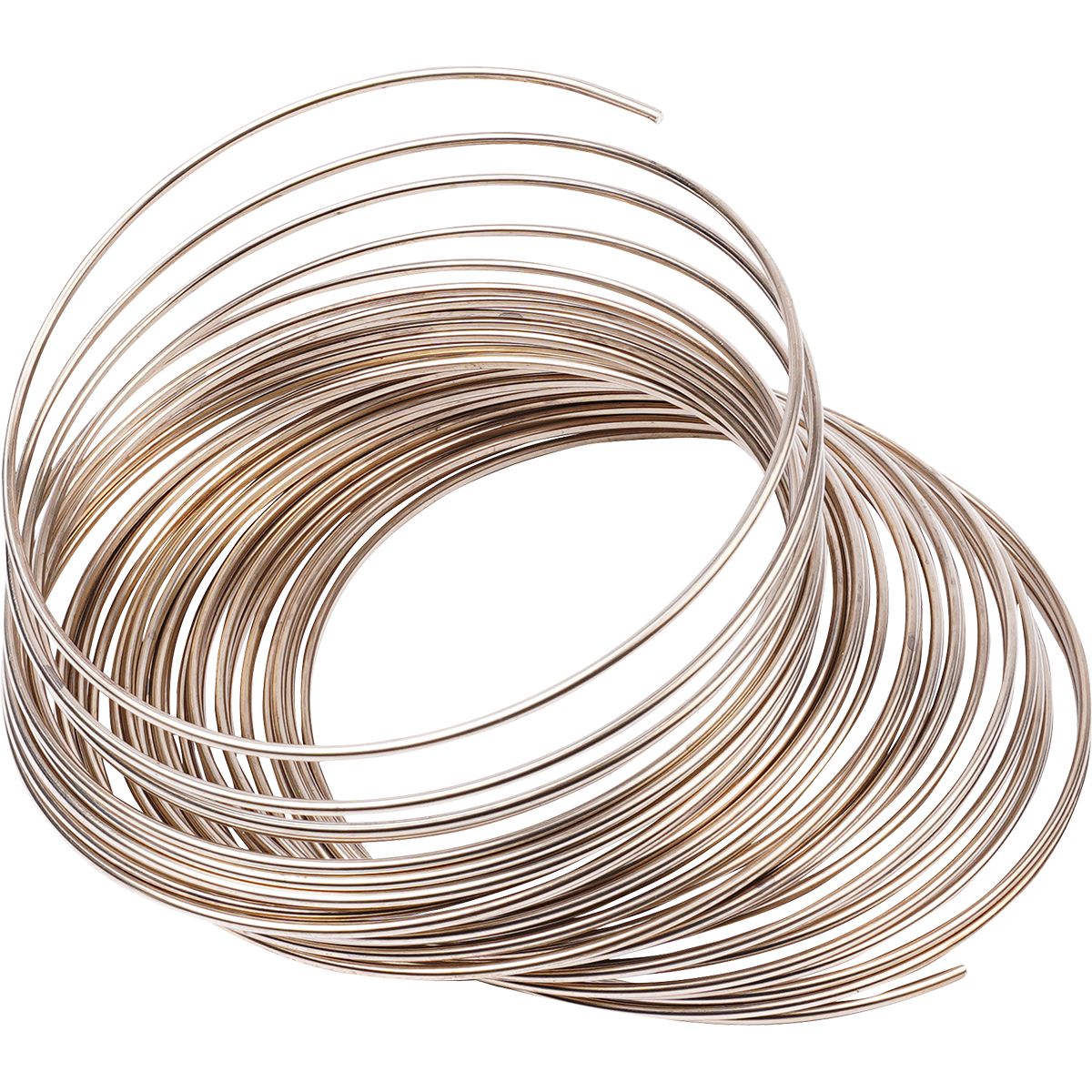

A cadmium-free bare wire silver alloy designed for silver brazing on all ferrous and non-ferrous metals (except white metals).
• Low Temperature – Easy flowing
• High-strength
• Good ductility
• Joint Strength: Up to 70,000 PSI/482 Mpa
• Elongation: 22%
• Working Temperature: 1375°F/746°C
• Electrical Conductivity: 19.4% IACS
• Feet per pound: - 1/16'': 87 ft. - 1/32'': 343 ft.
Frequently Bought Together
202Xl Red Flux Coated Brazing Alloy 3/16
Couldn't load pickup availability
30 Copper and Steel Flux Coated Brazing Rod 1/8"
Couldn't load pickup availability
266 Pink Flux Coated Super Fast Flowing Silver Brasing Alloy 3/64X18
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
41 Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
46 Sil-Phos Bare Brazing Rod 1/8"
Couldn't load pickup availability
54 Medium Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
176 Extreme Abrasion With Impact 1/4X18IN
Couldn't load pickup availability
ER4043 Aluminum MIG Welding Wire 0.035"
Couldn't load pickup availability
Rosin Core Solder 0.032"
Couldn't load pickup availability
Product Description
A cadmium-free bare wire silver alloy designed for silver brazing on all ferrous and non-ferrous metals (except white metals).• Low Temperature – Easy flowing
• High-strength
• Good ductility
• Joint Strength: Up to 70,000 PSI/482 Mpa
• Elongation: 22%
• Working Temperature: 1375°F/746°C
• Electrical Conductivity: 19.4% IACS
• Feet per pound: - 1/16'': 87 ft. - 1/32'': 343 ft.
Technical Specifications
| Item#: | EG26370001 |
|---|---|
| Welding Process | Brazing |
| Type | Bare Brazing Rod |
| Diameter | 1/16 " |
| Length | 6 ft |
| Tensile Strength | 70,000 PSI |
| Melting Temperature | 1,375 °F |
| Color | Shiny Grey |
| Base Metal | All Metals Except White Metals |
| Recommended Flux | 361 |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 0.075 lb |
