Home Tools Cutting Tools Drill Bits Silver & Deming Drills 3/4" Dia. Fractional Drill Bit with Reduced 1/2" Shank, 118o Point
Cutting Tools
1-3/4
1-3/4

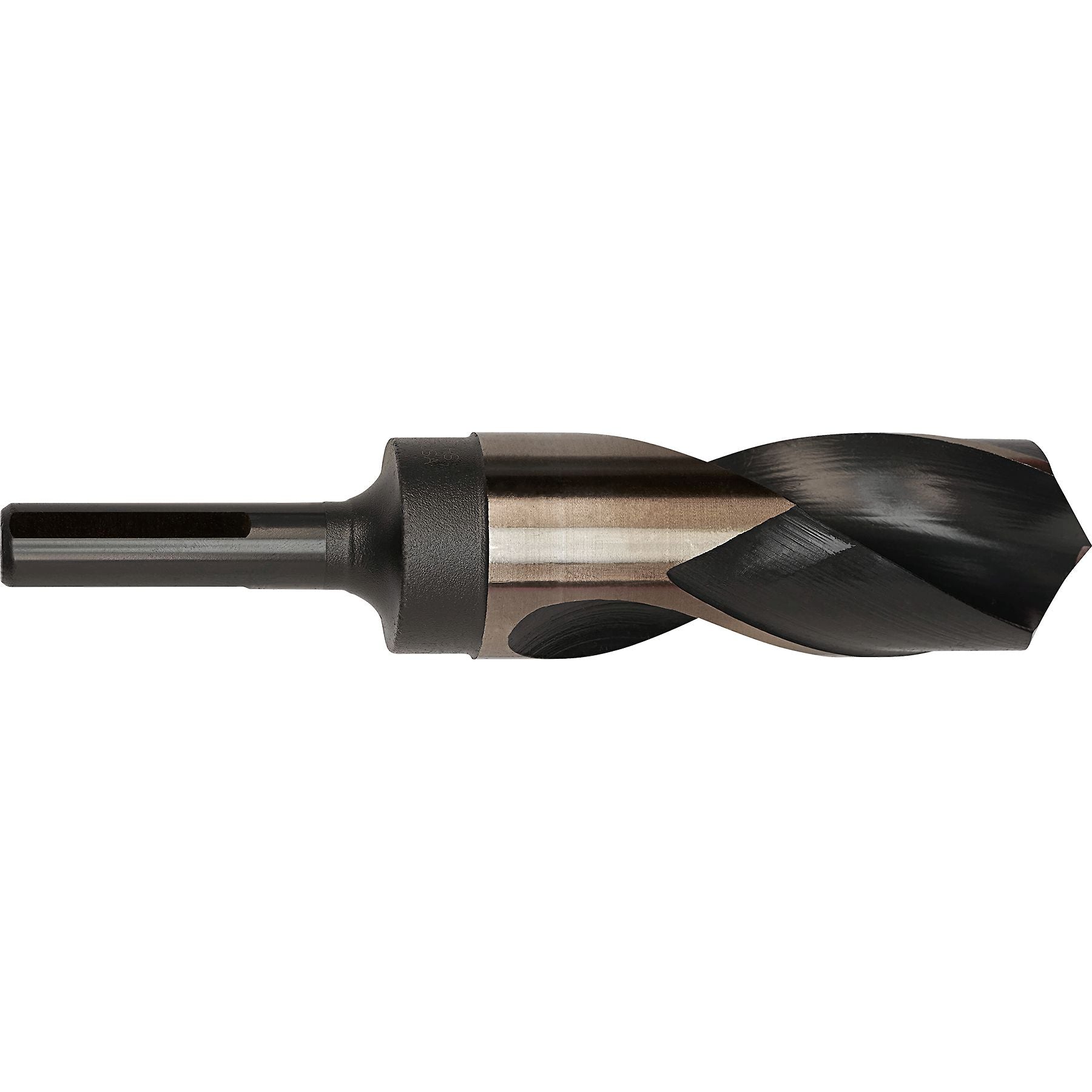

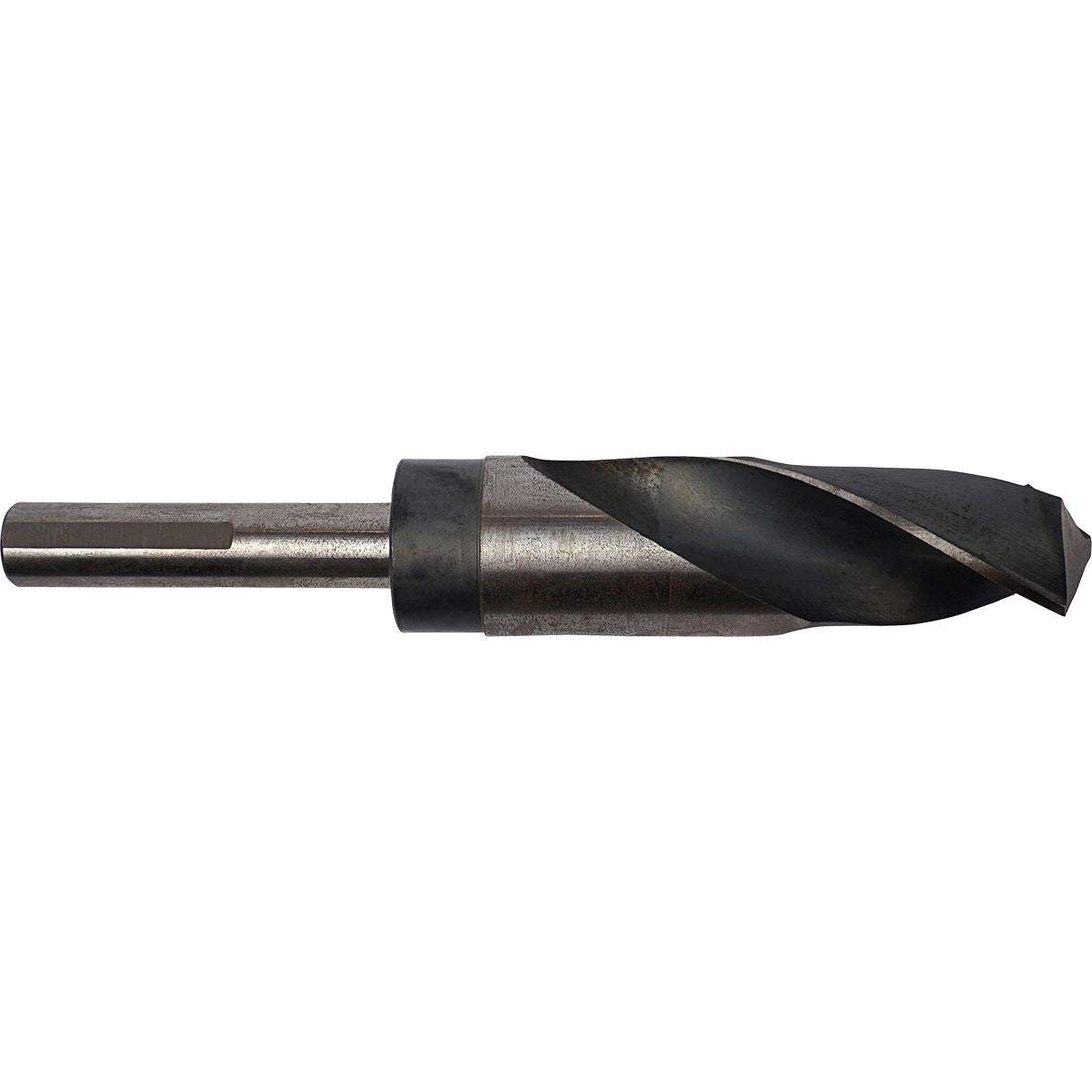

3/4" Dia. Fractional Drill Bit with Reduced 1/2" Shank, 118o Point, W/Flats, 6" Overall Length, Silver & Black
(Pack of 1)

Item#: PM08200370

Lawson Products

• Manufactured from molybdenum high speed tool steel for long life
• 1/2" reduced shank with flats - can be used in keyed or keyless chucks without slipping
• Silver with black-oxide flutes to hold lubricant at the cutting surface
• 118° point for fast cutting
• Available in an eight piece assortment for sizes 9/16" to 1" in. 1/16" increments
Specifications
• Material: Molybdenum high speed steel
• Finish: Silver and black-oxide
• Point: 118° standard
• Overall Length: 6"
• Max. Depth of Cut: 2.1"
• Length of Flats on Shank: 1"
• Shank Diameter: 1/2"
Applications
Steel, aluminum, cast steel, copper, brass, malleable iron, bronze, cast iron
Note: A pilot hole is recommended when using reduced shank bits
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together

Premium Grinding Wheel 4-1/2

Premium Grinding Wheel 4-1/2"

Item#: 89443
Mounted Flap Wheel 2

Mounted Flap Wheel 2" 60 Grit

Item#: 92019
Jobber Length Drill Bit HSS 31/64

Jobber Length Drill Bit HSS 17/64"

Item#: 84734M06
Cryoboost Drill Bit, 15/32

Cryoboost Drill Bit, 1/4" Dia. W/Flats

Item#: DY83601664
Jobber Length Drill Bit HSS 31/64

Jobber Length Drill Bit HSS 1/2"

Item#: 84749M06
Jobber Length Drill Bit HSS 31/64

Jobber Length Drill Bit HSS 7/64"

Item#: 84724M06
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511
Superbutt Connector 16 to 14 AWG Blue, Superbutt Connector, Extended Barrel, Blue, 16 to 14 AWG, 1.075

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728
Self-Drilling Screw Hex Head #6-20 x 1/2

Self-Drilling Screw Hex Head #10-16 x 3/4"

Item#: 84931
Cryoboost 11/16

Cryoboost 15/16" Reduced Shank, Stepped Split Point

Item#: DY83636064
Silver and Deming Drill Bit HSS 51/64

Silver and Deming Drill Bit HSS 5/8"

Item#: 1191299
1-3/4

17/32" Dia. Fractional Drill Bit with Reduced 1/2" Shank, 118o Point

Item#: PM08200356
Nutsetter & Bit Set, Magnetic, 22pc, Magnetic Nutsetter and Bit Set, 22 Piece, Storage Case

Nutsetter & Bit Set, Magnetic, 22pc

Item#: FA5737
Jobber Length Drill Bit HSS 31/64

Jobber Length Drill Bit HSS 11/64"

Item#: 84728
Scotch-Brite Roloc Surface Conditioning Disc 3

Scotch-Brite Roloc Surface Conditioning Disc 2"

Item#: 95710
7Pc 1/4Dr Gorilla Extractor Set, Impact Grade Gorilla Extractor Set, 1/4Dr SAE/Metric, 15/64

7Pc 1/4Dr Gorilla Extractor Set

Item#: DY89320100
Nut Torq Tite Hex Flange, #8-32, Nut Torq Tite Hex Flange, Grade 2, Serrated, Coarse, Steel, Zinc Finish, #8-32

Nut Torq Tite Hex Flange, 7/16-14

Item#: DY02552500
Right Dress Stainless Steel Cleaner and Polish, White, Pleasant Fragrance, 18oz Aerosol

Right Dress Stainless Steel Cleaner and Polish

Item#: DA6200
7Pc 1/4Dr Gorilla Extractor Set, Impact Grade Gorilla Extractor Set, 1/4Dr SAE/Metric, 15/64

7Pc 1/4Dr Gorilla Extractor Set

Item#: DY89320100
Nut Torq Tite Hex Flange, #8-32, Nut Torq Tite Hex Flange, Grade 2, Serrated, Coarse, Steel, Zinc Finish, #8-32

Nut Torq Tite Hex Flange, 7/16-14

Item#: DY02552500
Right Dress Stainless Steel Cleaner and Polish, White, Pleasant Fragrance, 18oz Aerosol

Right Dress Stainless Steel Cleaner and Polish

Item#: DA6200

Product Description

• Manufactured from molybdenum high speed tool steel for long life
• 1/2" reduced shank with flats - can be used in keyed or keyless chucks without slipping
• Silver with black-oxide flutes to hold lubricant at the cutting surface
• 118° point for fast cutting
• Available in an eight piece assortment for sizes 9/16" to 1" in. 1/16" increments
Specifications
• Material: Molybdenum high speed steel
• Finish: Silver and black-oxide
• Point: 118° standard
• Overall Length: 6"
• Max. Depth of Cut: 2.1"
• Length of Flats on Shank: 1"
• Shank Diameter: 1/2"
Applications
Steel, aluminum, cast steel, copper, brass, malleable iron, bronze, cast iron
Note: A pilot hole is recommended when using reduced shank bits
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.

Technical Specifications

Item#: PM08200370
Drill Length Silver & Deming
Drill Type Fractional
Type General Purpose
Material High Speed Steel
Finish Silver & Black
Diameter 3/4 "
Decimal Equivalent 0.7500 "
Point 118 °
Shank Size 1/2 "
Flats 3
Overall Length 6 "
UNSPSC #: 23241636
TAA Compliant: No
Weight: 0.46 lb
