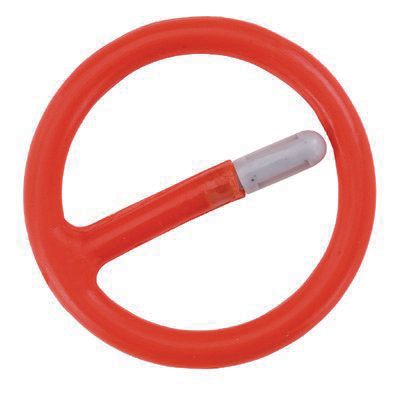

3/4" Dr Retaining Ring Cush Gauge 1-5/8"
(Pack of 1)

SKU:1225104 Item#: 1225104

Proto®

• Cracked sockets and or worn drive tools cause each other to turn excessively in relation to each other
• Designed with a resin crush gauge to help identify when to replace worn sockets
• Drive tool and socket should line up when in use and should not pinch the crush gauge
• One piece construction, no loose parts
• Pin is made of resin which allows the material to compress without breaking
• Retaining rings are used to help secure sockets onto drive tools
• The resin crush gauge on the pin helps indicate when a socket is excessively worn and should be replaced
• The rotational forces are between the drive tool and the socket
• They are not intended to bear any load
• This action pinches the small fin or the crush gauge on these retaining rings. If the crush gauge is pinched, it is an indication that the socket and or the drive tool need to be replaced

Quantity

Frequently Bought Together

Razor Blade, Single Edge, High Carbon Steel

3Pc Auto-Adjust Pliers Set

Item#: DY89310300

1000V Insulated Screwdriver Quick Disconnect Set 13 piece

Item#: DY81100600

Impact Retaining Ring, 3/4" Drive, 3/16" to 1-3/4"

Impact Retaining Ring, 3/4" Drive, 3/16" to 1-3/4"

Impact Retaining Ring, 3/4" Drive, 1-5/8"

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

USS Flat Washer Thru-Hardened Steel 1/4"

Flat Washer Grade 12 Thru-Hardened Steel M8

1/2" Drive, Cross-Over Deep Socket, 5/8''

Item#: DY89312752

33-Piece 1/4 and 3/8" Drive Bit Socket Set

Item#: ZZ20546F64

Flexible Universal Joint 1/2 Dr

Item#: DY89285303

Twist-On Surface Conditioning Disc 2" Brown

Jobber Length Drill Bit HSS 1/2"

Jobber Length Drill Bit HSS 5/32"

Product Description

• Cracked sockets and or worn drive tools cause each other to turn excessively in relation to each other
• Designed with a resin crush gauge to help identify when to replace worn sockets
• Drive tool and socket should line up when in use and should not pinch the crush gauge
• One piece construction, no loose parts
• Pin is made of resin which allows the material to compress without breaking
• Retaining rings are used to help secure sockets onto drive tools
• The resin crush gauge on the pin helps indicate when a socket is excessively worn and should be replaced
• The rotational forces are between the drive tool and the socket
• They are not intended to bear any load
• This action pinches the small fin or the crush gauge on these retaining rings. If the crush gauge is pinched, it is an indication that the socket and or the drive tool need to be replaced

Technical Specifications

Item#:	1225104
Type	Retaining Ring
Drive Size	3/4 "
Length	1.812 "
UPC	662679978020
Socket Groove Diameter	1 5/8 "
UNSPSC #:	27000000
TAA Compliant:	Yes
