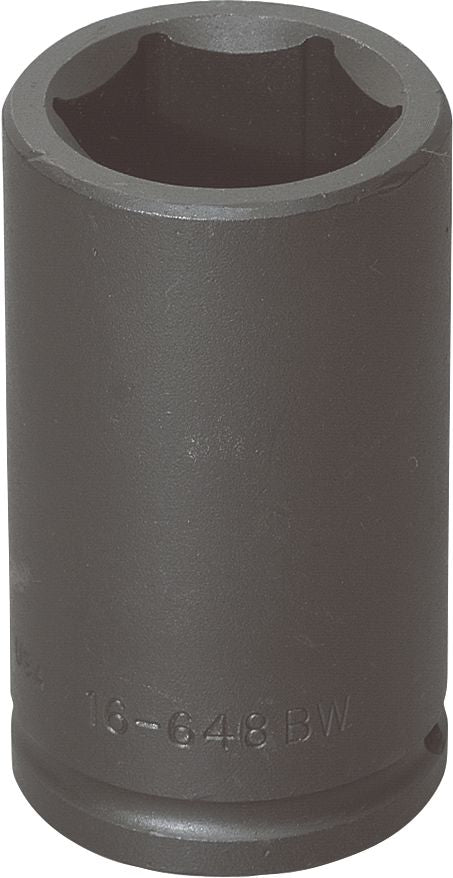

3/4" Drive, 6 Point, Budd Impact Socket, 1-1/2" x 13/16"
(Pack of
1)
SKU:19264 Item#: 19264
Individual Impact Sockets
• Black industrial finish
• SUPERTORQUE® lobular openings for greater turning power without deforming the fastener
• Designed for maximum engagement on 6 point fasteners
• Suitable for use with pneumatic and electric impact wrenches
• Specially heat-treated for impact use to provide long life, safety and durability
• Made in USA
Dual opening socket. Square (13/16") opening threads shaft onto wheel; then hex (1-1/2") opening engages and tightens nut.
Frequently Bought Together
Dispenser, Utility Blade, Quickblade®
Couldn't load pickup availability
12" Constant Contact Pipe Wrench
Couldn't load pickup availability
3/8" Drive, Cross-Over Socket, 7/8''
Couldn't load pickup availability
3/8" Drive, Cross-Over Socket, 18mm
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
1/4'' Drive, Deep Socket, 1/2"
Couldn't load pickup availability
3/8" Drive, Cross-Over Deep Socket, 15mm
Couldn't load pickup availability
1/4" Cordless Impact Hex Driver Charging Bundle
Couldn't load pickup availability
Index-Tend Demo Wrecking Bar
Couldn't load pickup availability
Product Description
Individual Impact Sockets• Black industrial finish
• SUPERTORQUE® lobular openings for greater turning power without deforming the fastener
• Designed for maximum engagement on 6 point fasteners
• Suitable for use with pneumatic and electric impact wrenches
• Specially heat-treated for impact use to provide long life, safety and durability
• Made in USA
Dual opening socket. Square (13/16") opening threads shaft onto wheel; then hex (1-1/2") opening engages and tightens nut.
Technical Specifications
| Item#: | 19264 |
|---|---|
| Manufacturer Model #: | 16-648BW |
| Measuring System | SAE |
| Socket Depth | Budd |
| Drive Type | Square |
| Drive Size | 3/4 " |
| Style | Standard |
| Number of Points | 6 |
| Type | Impact |
| Wrench Style | SUPERTORQUE® |
| Overall Length | 4 " |
| Drive End Diameter | 1.75 " |
| Working End Diameter | 2.25 " |
| Broach Depth | 1.4375 " |
| Bolt Clearance Depth | 2.25 " |
| Bolt Clearance Diameter | 1.25 " |
| Finish | Black Oxide |
| Locking Type | Pin |
| Use O-RING / Pin | 19258/19260 |
| Uses RET RING® Number | 19261 |
| UNSPSC #: | 27112828 |
| TAA Compliant: | Yes |
| Weight: | 2.0 lb |
