3/4" Drive Standard Impact Socket, 2-1/16"
(Pack of
1.0)

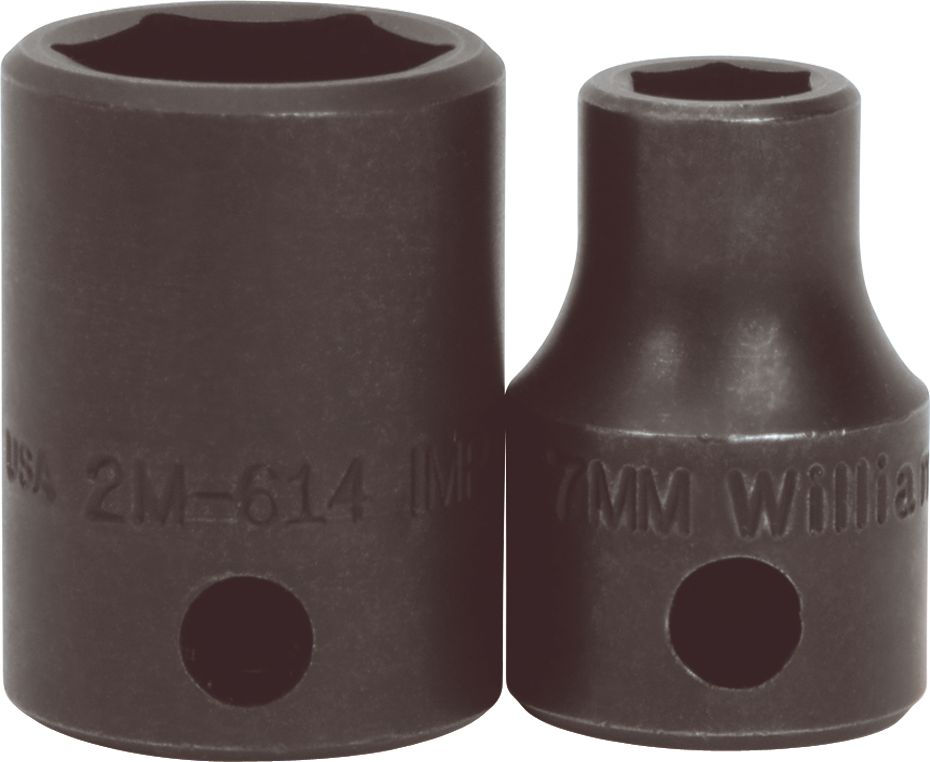

Individual Impact Sockets
• Black industrial finish
• SUPERTORQUE® lobular openings for greater turning power without deforming the fastener
• Designed for maximum engagement on 6 point fasteners
• Suitable for use with pneumatic and electric impact wrenches
• Specially heat-treated for impact use to provide long life, safety and durability
• Made in USA
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 14-19
Frequently Bought Together
Flexible Universal Joint 1/4 Dr
Couldn't load pickup availability
1/4X38mm 3/8 Nut Driver
Couldn't load pickup availability
8 Pc. Drive Pin Punch Set
Couldn't load pickup availability
3/4" Drive Standard Impact Socket, 1-9/16"
Couldn't load pickup availability
3/8" Drive Standard Impact Socket, 19mm
Couldn't load pickup availability
1/2" Drive Standard Impact Socket, 7/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
1/2 Drive Bi-Pos Swivel Impact Socket, 24mm
Couldn't load pickup availability
1/2" Drive Deep Impact Socket, 14mm
Couldn't load pickup availability
3/4" Drive Standard Impact Socket, 1-13/16"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 17/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/4"
Couldn't load pickup availability
25/64" Fractional Drill Bit, Jobber Length, W/Flats
Couldn't load pickup availability
Product Description
Individual Impact Sockets• Black industrial finish
• SUPERTORQUE® lobular openings for greater turning power without deforming the fastener
• Designed for maximum engagement on 6 point fasteners
• Suitable for use with pneumatic and electric impact wrenches
• Specially heat-treated for impact use to provide long life, safety and durability
• Made in USA
Technical Specifications
| Item#: | 19309 |
|---|---|
| Measuring System | SAE |
| Socket Depth | Standard |
| Drive Type | Square |
| Drive Size | 3/4 " |
| Style | Standard |
| Number of Points | 6 |
| Type | Impact |
| Wrench Style | SUPERTORQUE® |
| Overall Length | 2.875 " |
| Drive End Diameter | 1.75 " |
| Working End Diameter | 2.875 " |
| Bolt Clearance Depth | 1.8125 " |
| Bolt Clearance Diameter | 1.4375 " |
| Nose Length /Length to Shoulder | 2.1875 " |
| Finish | Black Oxide |
| Locking Type | Pin |
| Use O-RING/Pin | 19258/19260 |
| Uses RET RING® Number | 19261 |
| UNSPSC #: | 27112828 |
| TAA Compliant: | Yes |
| Weight: | 2.43 lb |
