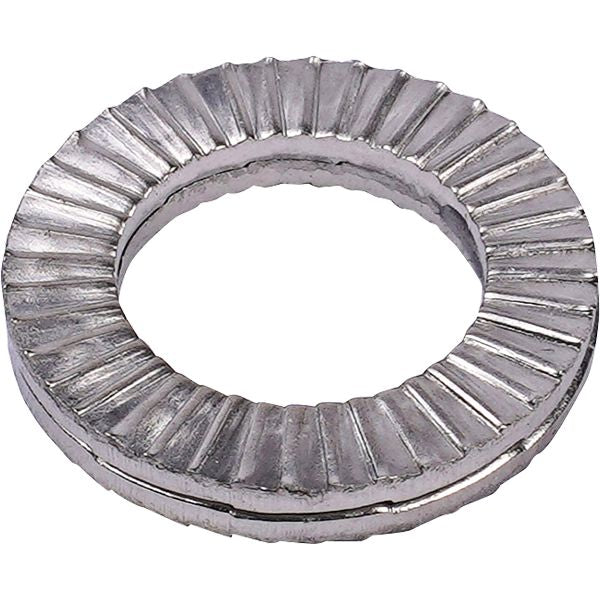

3/8 Standard 316 SS Anti-Vibration Serated Self Lock Washer
(Pack of
4)
SKU:DY10342100 Item#: DY10342100
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration
• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• 316L Stainless Steel
Couldn't load pickup availability
Catalog page#: LE-3
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Lock Washer 316 Stainless Steel 3/8"
Couldn't load pickup availability
Lock Washer 316 Stainless Steel 1/4"
Couldn't load pickup availability
Lock Washer Alloy Steel 7/16"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Universal Socket Set, SAE, 1/2" Drive, 6pc
Couldn't load pickup availability
9Pc Metric Mini Combination Wrench Set
Couldn't load pickup availability
Heavy-Duty Chain Lubricant 12oz
Couldn't load pickup availability
Universal Socket Set, SAE, 1/2" Drive, 6pc
Couldn't load pickup availability
9Pc Metric Mini Combination Wrench Set
Couldn't load pickup availability
Heavy-Duty Chain Lubricant 12oz
Couldn't load pickup availability
Product Description
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• 316L Stainless Steel
Technical Specifications
| Item#: | DY10342100 |
|---|---|
| Nominal Size | 3/8 " |
| Type | Serrated Self Lock Washers |
| Material | Stainless Steel |
| I.D. | 0.41 " |
| O.D. | 0.65 " |
| Thickness | 0.08 " |
| Grade | 316L |
| Quantity Per Package | 4.0000 |
| UNSPSC #: | 31161801 |
| TAA Compliant: | No |
| Weight: | 0.025 lb |
