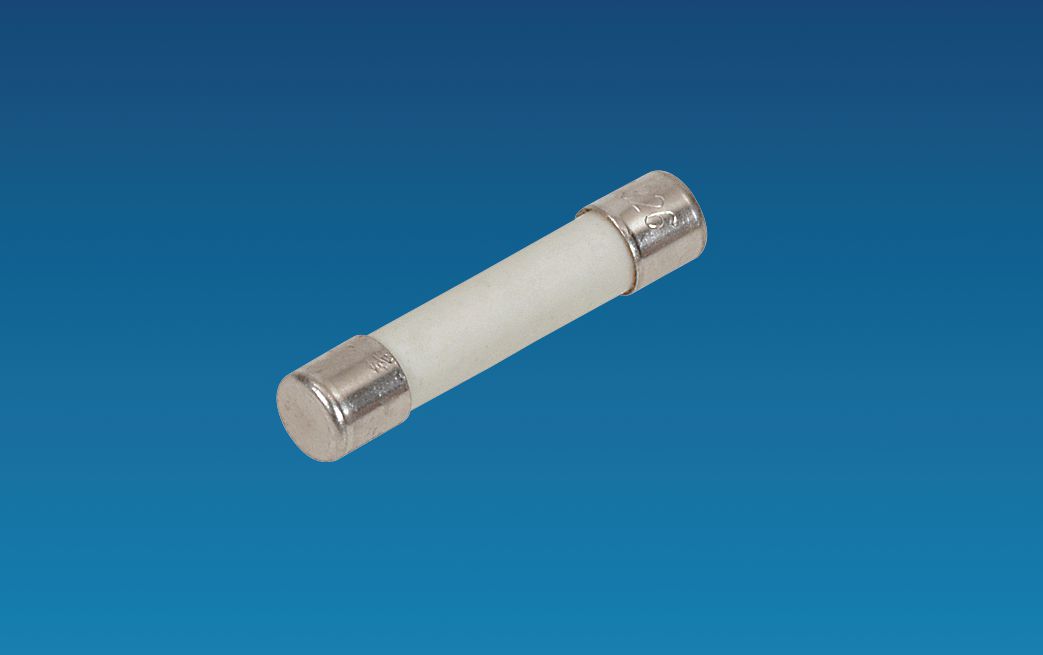

326 Series Ceramic Body Fuse 20A
(Pack of
5.0)
• Voltage rating: 1/8 to 20A – 250V; 25 to 30A – 125V
• 1-1/4" long, 1/4" dia.
• UL listed and CSA certified 1/4A to 10A
• UL recognized from 12A to 30A
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 17-120
Frequently Bought Together
ATO/ATC Fuse 15A Blue
Couldn't load pickup availability
MINI Fuse 20A Yellow
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
ATO/ATC In-Line Fuse Holder with Cap 32V 1-20A
Couldn't load pickup availability
MICRO2 Series Blade Fuse 20A Yellow
Couldn't load pickup availability
ATO/ATC Fuse 5A Tan
Couldn't load pickup availability
312 Series Glass Body Fuse 1/10A
Couldn't load pickup availability
523 Series Midget Fuse 1.4A
Couldn't load pickup availability
FLSR Series Class RK5 Indicator Fuse 3-1/2A
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• Voltage rating: 1/8 to 20A – 250V; 25 to 30A – 125V• 1-1/4" long, 1/4" dia.
• UL listed and CSA certified 1/4A to 10A
• UL recognized from 12A to 30A
Technical Specifications
| Item#: | 56525 |
|---|---|
| Style | 326 Series Slow Blow Type Fuses |
| Amperage | 20 A |
| Diameter | 1/4 " |
| Length | 1-1/4 " |
| Rating | 1/100 to 20A - 250V; 25 to 30A - 125V V |
| Approvals | UL, CSA, UR |
| Type | Fuses |
| Bussman Number | MDA-20 |
| Littelfuse Fuse Type | 326020 |
| UNSPSC #: | 39121627 |
| TAA Compliant: | No |
| Weight: | 0.04 lb |
