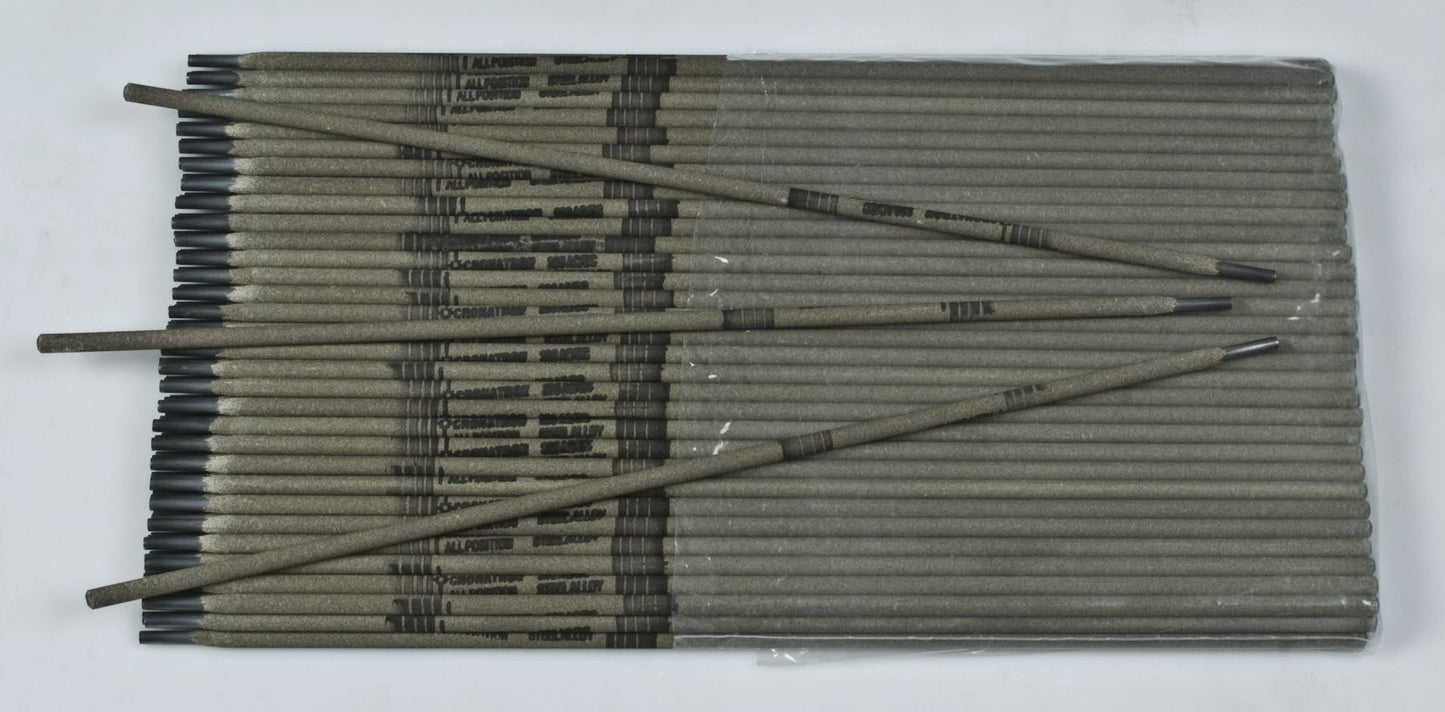

338 Mild and Carbon Steel Stick Rod Electrode, Flux Coated, 95 to 170 Amps, 29% Elongation, DCRP/AC Polarity, 5/32"
(Pack of
10)
SKU:CW1057 Item#: CW1057
The E-Z Alloy Electrode. Safe, simple, all-position mild steel alloy. No preparations, just strike an arc and the electrode does all the work.
• Moisture-Resistant Coating
Tensile Strength: 80,000 PSI
Yield Strength: 70,000 PSI
Elongation: 29%
Polarity: AC or DC Reverse
Usage ProcedureOperates equally well with any power source or polarity. Excellent results with small, portable, low open-circuit voltage AC welders (“buzz boxes”). Use low amperage for thin metals; increase for thicker types or high-speed operations.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Catalog page#: 13-6
Frequently Bought Together
1100 Gouging and Cutting Stick Rod Electrode 3/16"
Couldn't load pickup availability
E6010 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
E6011 Mild/Carbon Steel Stick Electrode 5/32"
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Oxy-Therm Cutting Rod 3/8 x 36"
Couldn't load pickup availability
281 High Strength Silver Bearing Solder .031DIA 19G TUBE
Couldn't load pickup availability
24A-62 MIG Welding Nozzle 5/8"
Couldn't load pickup availability
333 Dissimilar Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
3880 Stainless Steel TIG Wire 3/32"
Couldn't load pickup availability
375 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
Product Description
The E-Z Alloy Electrode. Safe, simple, all-position mild steel alloy. No preparations, just strike an arc and the electrode does all the work.• Moisture-Resistant Coating
Tensile Strength: 80,000 PSI
Yield Strength: 70,000 PSI
Elongation: 29%
Polarity: AC or DC Reverse
Usage ProcedureOperates equally well with any power source or polarity. Excellent results with small, portable, low open-circuit voltage AC welders (“buzz boxes”). Use low amperage for thin metals; increase for thicker types or high-speed operations.
Technical Specifications
| Item#: | CW1057 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 5/32 " |
| Tensile Strength | 80,000 PSI |
| Yield Strength | 70,000 PSI |
| Elongation | 29 % |
| Base Metal | Mild & Carbon Steel |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 11.0 lb |
