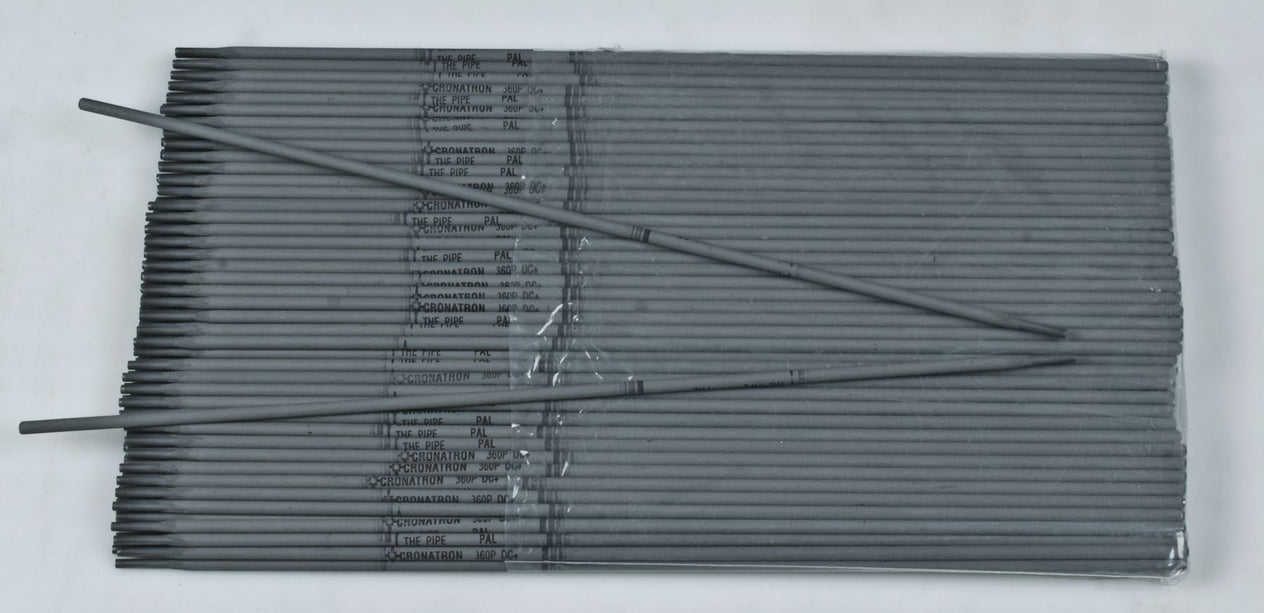

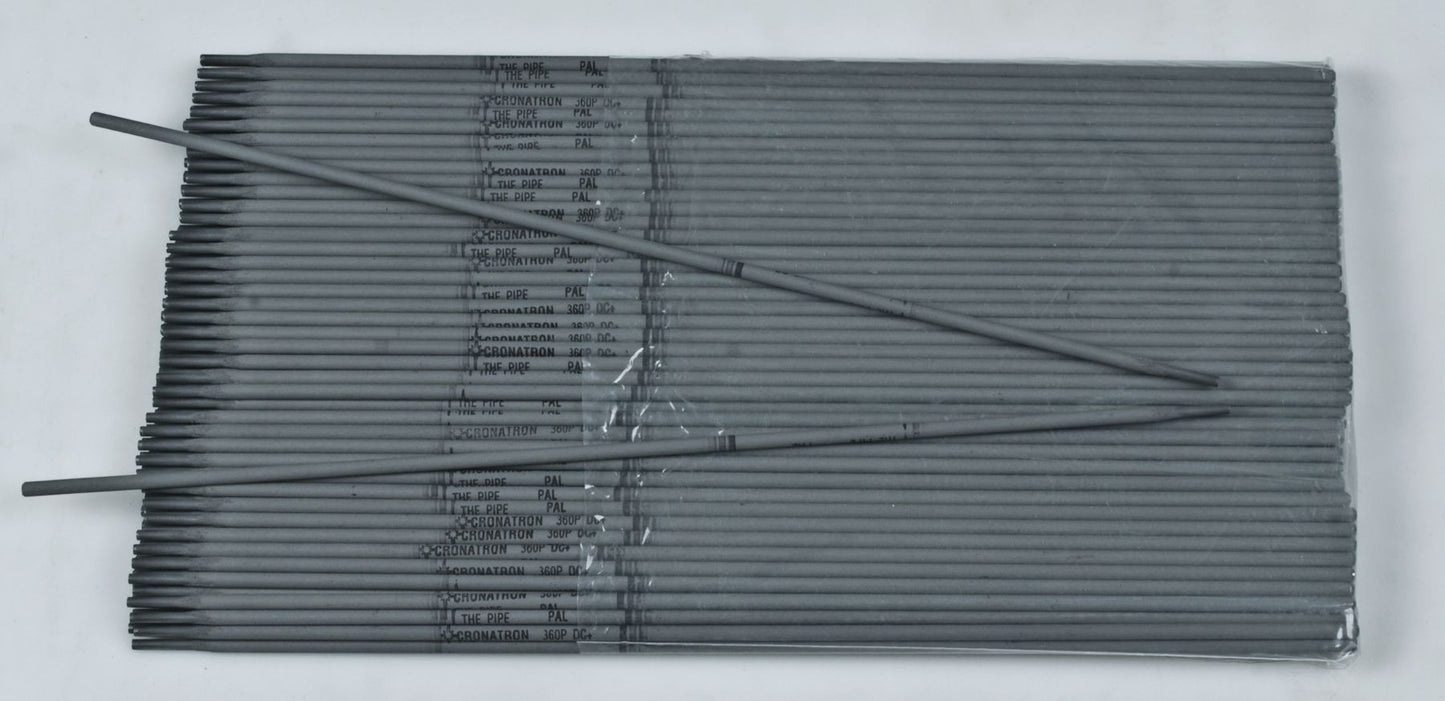

360 Mild and Carbon Steel Stick Rod Electrode, Flux Coated, 80 to 140 Amps, 29% Elongation, DCRP Polarity, 1/8"
(Pack of
10)
SKU:CW3330 Item#: CW3330
Formulated to cut through rust and other contaminants, providing solid, sound and dense weld deposits on all types of mild steel.
Superior Advantages
• Saves time – welds through all types of contaminants
• Deep penetrating for pipe root passes
• Produces strong, dense weld deposits
The Pipe Pal
Tensile Strength: 79,500 PSIYield Strength: 67,000 PSIElongation: 29%Polarity: DC Reverse
Cronaweld 360P is ideally suited for depositing open root passes where good interior bead appearance and complete penetration are required.
Applications
• Sheet, plates, angles, beams, channels and joining of all mild steel structures
• Galvanized sheet
• Machinery and machine parts
• Automotive and truck bodies
• Pipes, tanks, containers
Usage ProcedureMaintain a short arc but do not contact the molten puddle. A slight oscillating motion is recommended for flat and horizontal positions. Use a slight weave for vertical and overhead welding. Vertical-down welds should be made at approximately the same amperages as recommended for the flat position.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Replacement AC Charger For 80000202
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 5/8-18 x 1-1/2"
Couldn't load pickup availability
Premium Ceramic Grinding Disk 4-1/2"
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
102 Tuff Plus High Strength Mild Steel Electrode 1/8
Couldn't load pickup availability
606 Duraweld M Mig Wire Maintenance Grade Mild Steel Solid Mig Wire
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
Carbon Air Arc Stick Rod Electrode 1/4"
Couldn't load pickup availability
11-45 MIG Welding Contact Tip 0.045"
Couldn't load pickup availability
701 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
321 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
Oxy-Therm Collet Grommet 1/4"
Couldn't load pickup availability
Product Description
Formulated to cut through rust and other contaminants, providing solid, sound and dense weld deposits on all types of mild steel.Superior Advantages
• Saves time – welds through all types of contaminants
• Deep penetrating for pipe root passes
• Produces strong, dense weld deposits
The Pipe Pal
Tensile Strength: 79,500 PSIYield Strength: 67,000 PSIElongation: 29%Polarity: DC Reverse
Cronaweld 360P is ideally suited for depositing open root passes where good interior bead appearance and complete penetration are required.
Applications
• Sheet, plates, angles, beams, channels and joining of all mild steel structures
• Galvanized sheet
• Machinery and machine parts
• Automotive and truck bodies
• Pipes, tanks, containers
Usage ProcedureMaintain a short arc but do not contact the molten puddle. A slight oscillating motion is recommended for flat and horizontal positions. Use a slight weave for vertical and overhead welding. Vertical-down welds should be made at approximately the same amperages as recommended for the flat position.
Technical Specifications
| Item#: | CW3330 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 1/8 " |
| Base Metal | Mild & Carbon Steel |
| Polarity | DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 11.0 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
