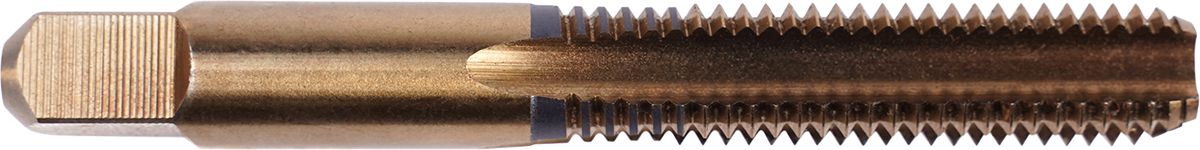

4-Flute HSS Hand Tap Kit M16 x 2
(Pack of
1.0)
Lawson Tap Sets include Taper, Plug and Bottoming Style Taps; replacement taps are available in each style.
Taper Style
8 to 10 threads chamfered. For easy thread starting in tough materials.
Plug Style
3 to 5 threads chamfered. For general use when tapping to bottom of hole is not critical.
Bottoming Style
1-1/2 threads chamfered. Use after threads have been started for tapping to bottom of hole.
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Gold oxide finish enhances chip flow
• Minimizes seizing and binding
• Requires less torque
• Produces a more accurate hole
• Sizes permanently marked on all taps
• Manufactured from high-speed steel
• Wear-resistant
• Used in general tapping operations of ferrous and non-ferrous materials
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
Catalog Page#: 11-45
Frequently Bought Together
Stemmed Crimped Wire Wheel 2"
Couldn't load pickup availability
Shoe Plastic Handle Scratch Brush
Couldn't load pickup availability
5/16" Fractional Drill Bit, Jobber Length, W/Flats
Couldn't load pickup availability
Cryotap M10 x 1.5 Metric Bottoming Hand Tap
Couldn't load pickup availability
Cryotap #4-40 Plug Hand Tap
Couldn't load pickup availability
Cryotap 1/4"-20 Tri-Pak
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
PTFE Pipe Thread Seal White 1/2 x 520"
Couldn't load pickup availability
12" Auto-Adjust Pliers
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap 9/16-18
Couldn't load pickup availability
HSS Combination Drill-Tap 10-24
Couldn't load pickup availability
HSS Combination Drill-Tap 10-24
Couldn't load pickup availability
Jobber Length Drill Bit HSS 11/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 15/64"
Couldn't load pickup availability
Stemmed Crimped Wire Wheel 2"
Couldn't load pickup availability
Product Description
Lawson Tap Sets include Taper, Plug and Bottoming Style Taps; replacement taps are available in each style.Taper Style
8 to 10 threads chamfered. For easy thread starting in tough materials.
Plug Style
3 to 5 threads chamfered. For general use when tapping to bottom of hole is not critical.
Bottoming Style
1-1/2 threads chamfered. Use after threads have been started for tapping to bottom of hole.
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Gold oxide finish enhances chip flow
• Minimizes seizing and binding
• Requires less torque
• Produces a more accurate hole
• Sizes permanently marked on all taps
• Manufactured from high-speed steel
• Wear-resistant
• Used in general tapping operations of ferrous and non-ferrous materials
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 1391949 |
|---|---|
| Type | Metric |
| Style | Set |
| Material | High Speed Steel |
| Diameter | M16 |
| Pitch | 2.0 mm |
| Flutes | 4 |
| Thread Length | 1-13/16 " |
| Number of Pieces | 3 |
| Recommended Drill Size | 14.0 |
| Description | One each of Taper, Plug and Bottoming Style Taps |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
