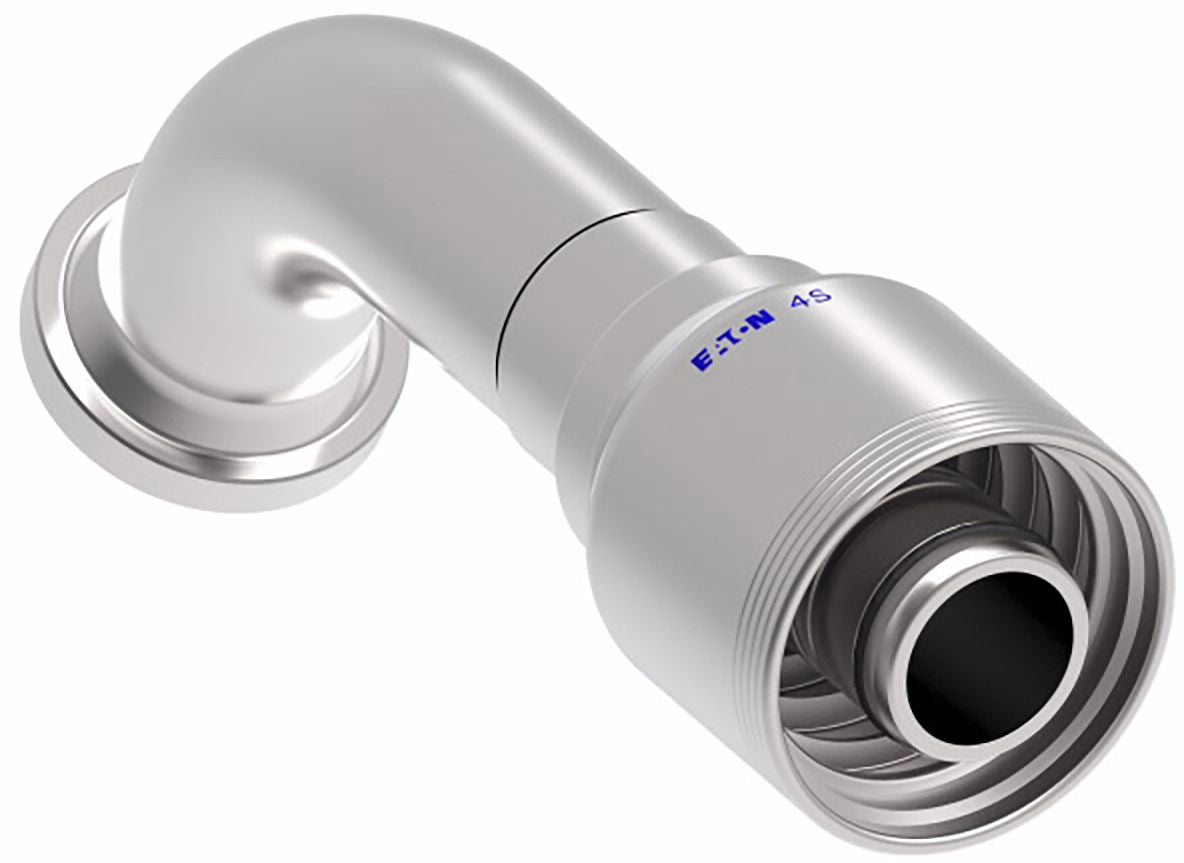

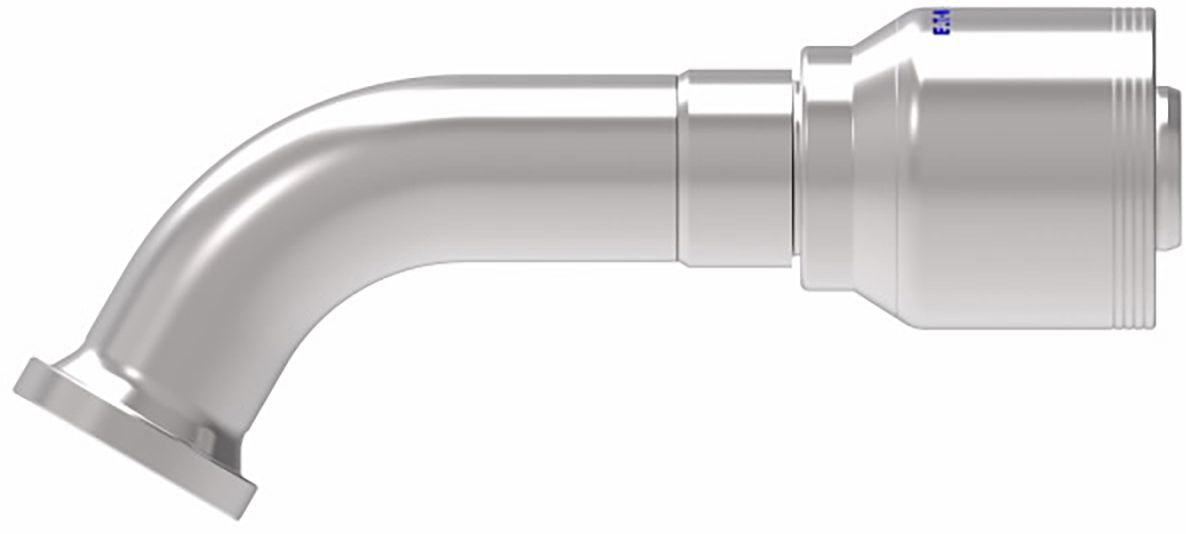

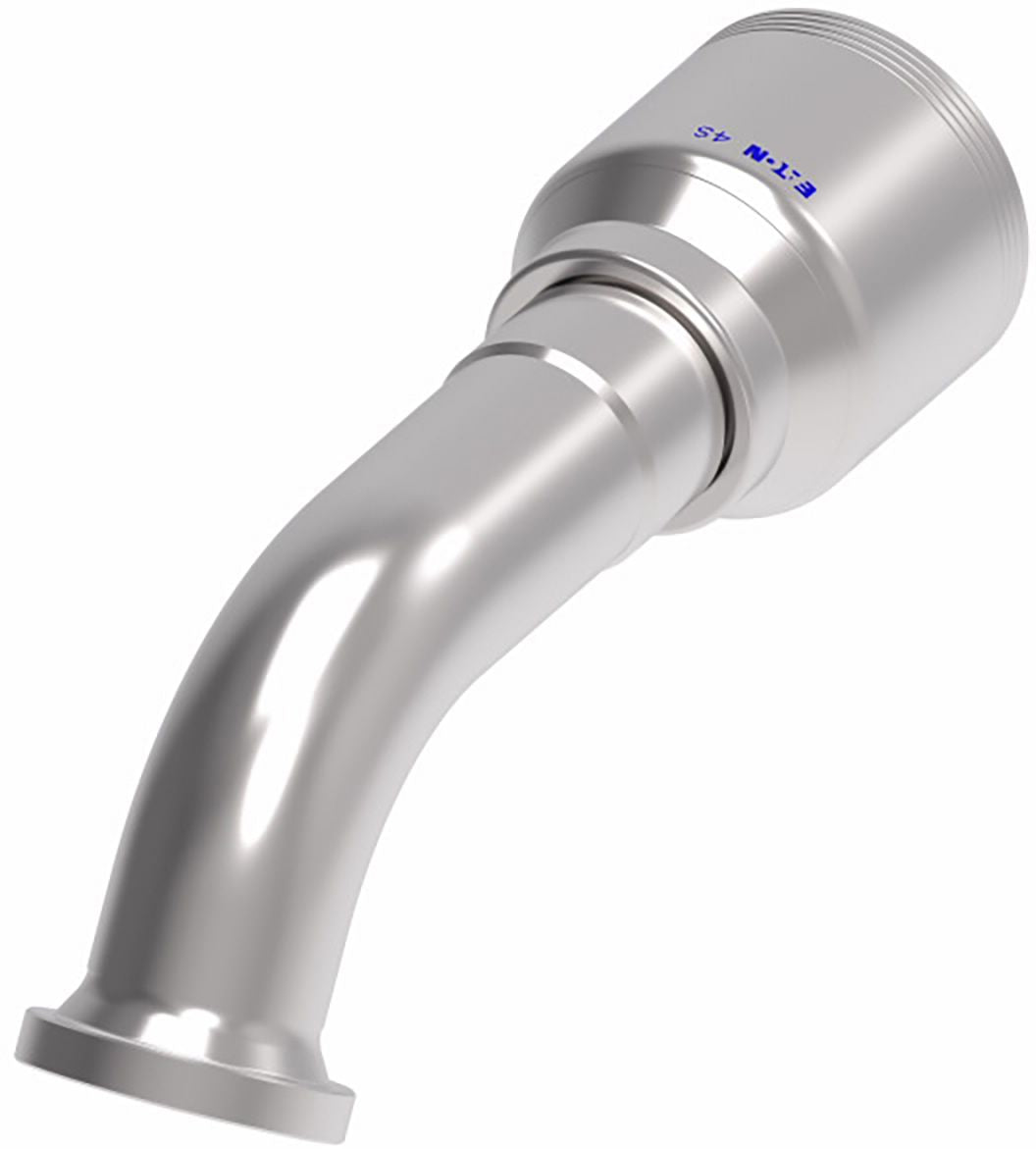

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 60°, SAE 61, 1-1/4 (-20) x 2" (-20)
(Pack of
1)
SKU:1542991 Item#: 1542991
Compatible Hoses:
• 4S: H430 (-12 through -32)
• H430R (-12 through -32)
• EC525 (-12 through -32)
• H471 (-12 through -24)
• H464 (-12 through -32)
• EC810 (-12, -16)
• 6S: H471 (-32)
• EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Couldn't load pickup availability
Catalog page#: 8-27
Frequently Bought Together
Z Series Crimp-On Hose End 3/4" x 1-1/16-12
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 7/8-14
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 7/16-20
Couldn't load pickup availability
Hydraulic Cap Nut, 3/4-16"(08) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/4" x 1-1/16-12
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
Couldn't load pickup availability
Hex Head Plug Brass 3/8-18 Male NPT
Couldn't load pickup availability
DOT Union Brass 1/2 x 1/2"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Product Description
Compatible Hoses:• 4S: H430 (-12 through -32)
• H430R (-12 through -32)
• EC525 (-12 through -32)
• H471 (-12 through -24)
• H464 (-12 through -32)
• EC810 (-12, -16)
• 6S: H471 (-32)
• EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1542991 |
|---|---|
| Manufacturer Model #: | 4S20FLG20 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/4 (-20) " |
| Dash Size | -20 |
| Fitting End Type | Flanged |
| Fitting Angle | 60 ° |
| Fitting Dimension B (Working End) | 2.00 (-20) |
| Weatherhead No. | 4S20FLG20 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 5.7 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 2.75 lb |
