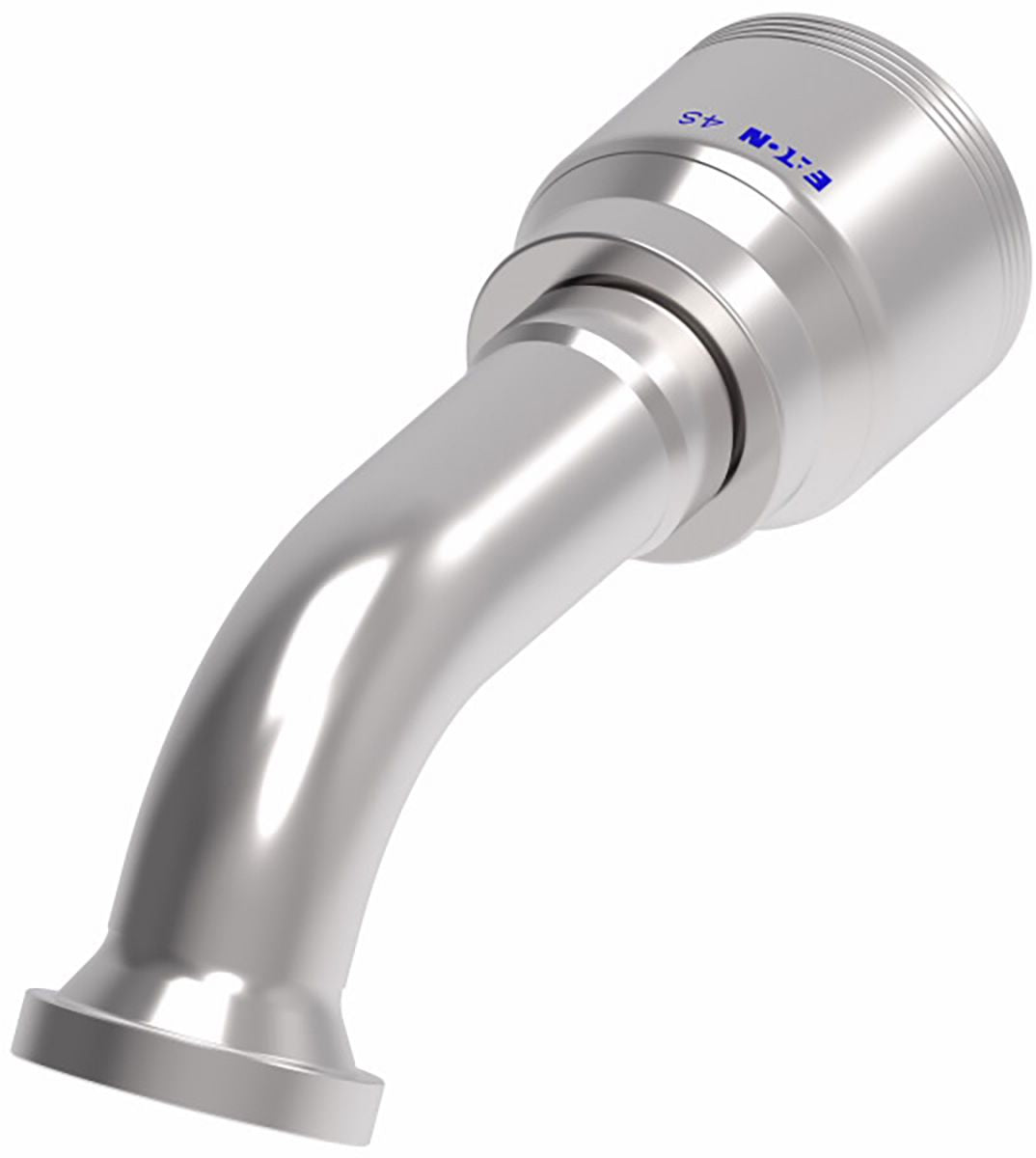

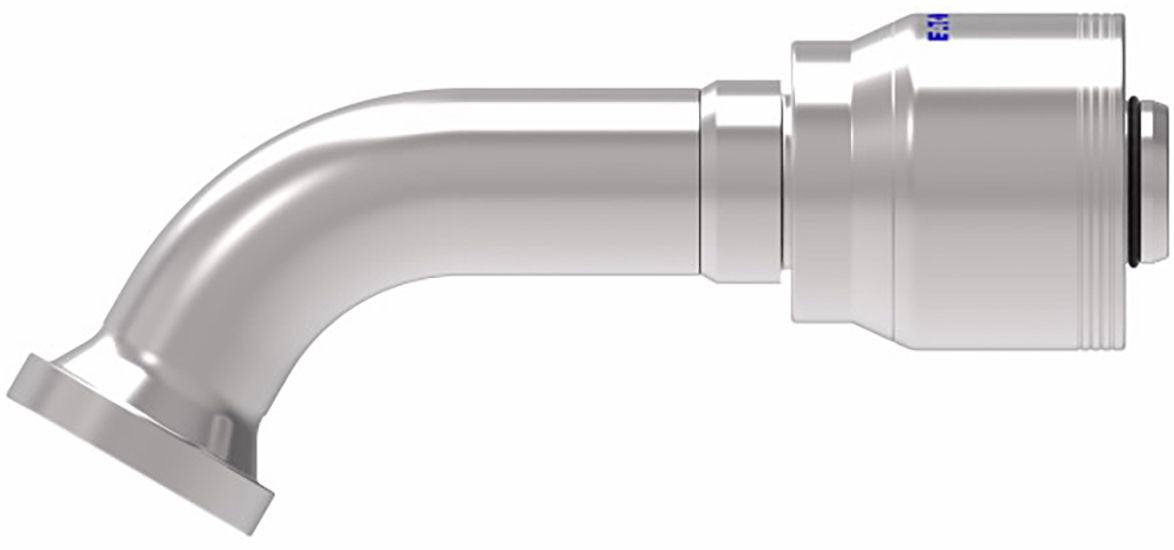

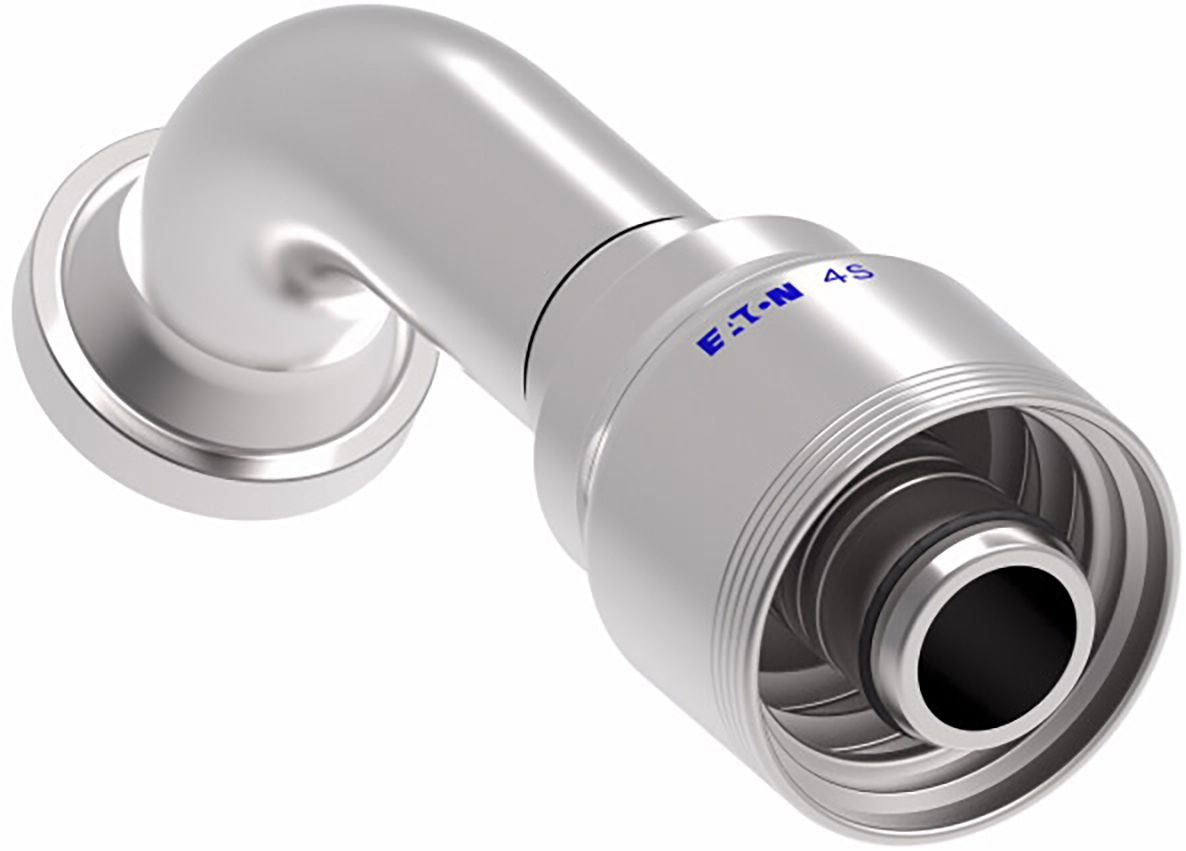

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 60°, SAE Code 61, 1 (-16) x 1.75" (-16)
(Pack of
1)
SKU:1543071 Item#: 1543071
Compatible Hoses:
• 4S: H430 (-12 through -32)
• H430R (-12 through -32)
• EC525 (-12 through -32)
• H471 (-12 through -24)
• H464 (-12 through -32)
• EC810 (-12, -16)
• 6S: H471 (-32)
• EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-27
Frequently Bought Together
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
DOT Union Nylon 1/4 x 1/4"
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Product Description
Compatible Hoses:• 4S: H430 (-12 through -32)
• H430R (-12 through -32)
• EC525 (-12 through -32)
• H471 (-12 through -24)
• H464 (-12 through -32)
• EC810 (-12, -16)
• 6S: H471 (-32)
• EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543071 |
|---|---|
| Manufacturer Model #: | 4S16FLG16 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1 (-16) " |
| Dash Size | -16 |
| Fitting End Type | Flanged |
| Fitting Angle | 60 ° |
| Fitting Dimension B (Working End) | 1.75 (-16) |
| Weatherhead No. | 4S16FLG16 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 4.59 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.61 lb |
