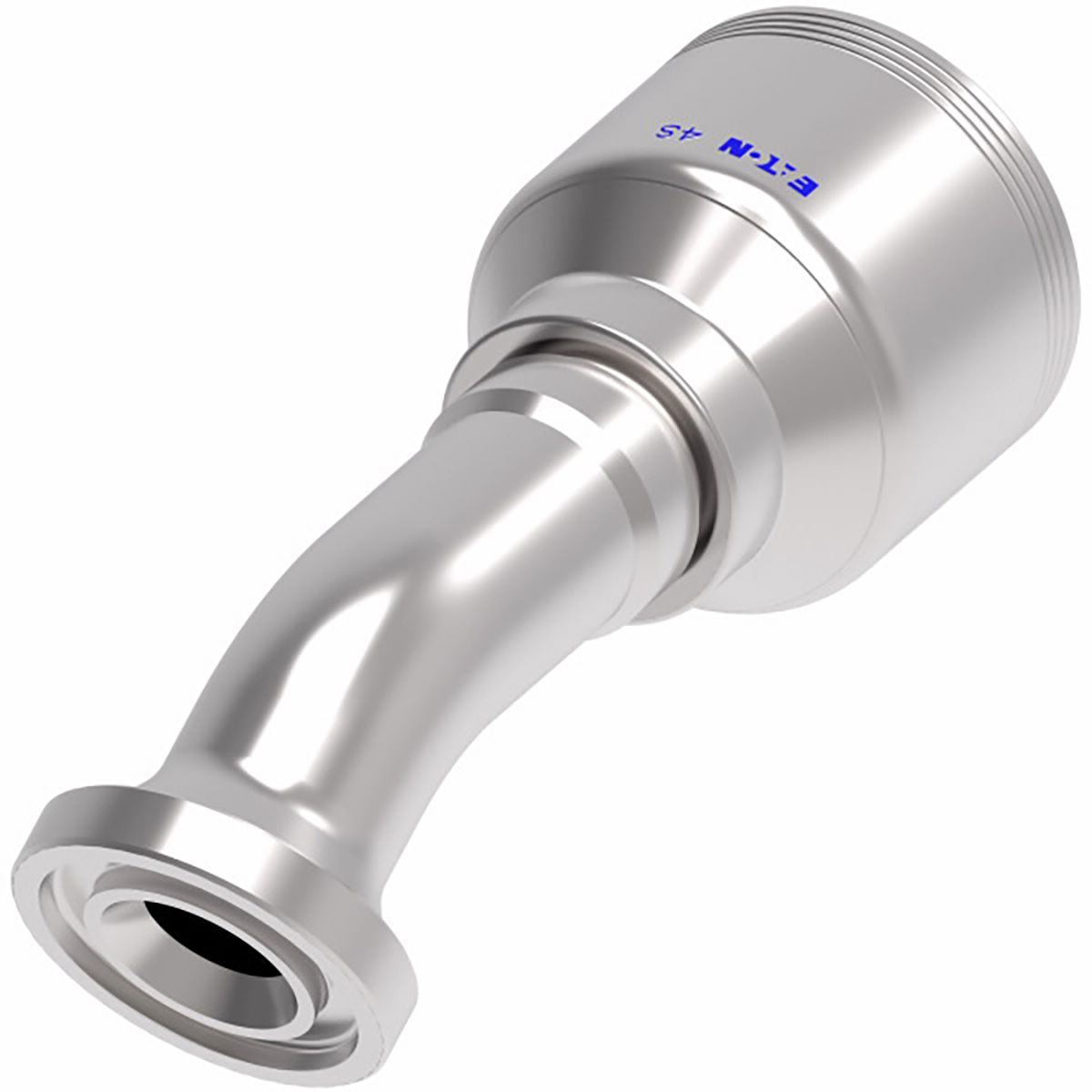

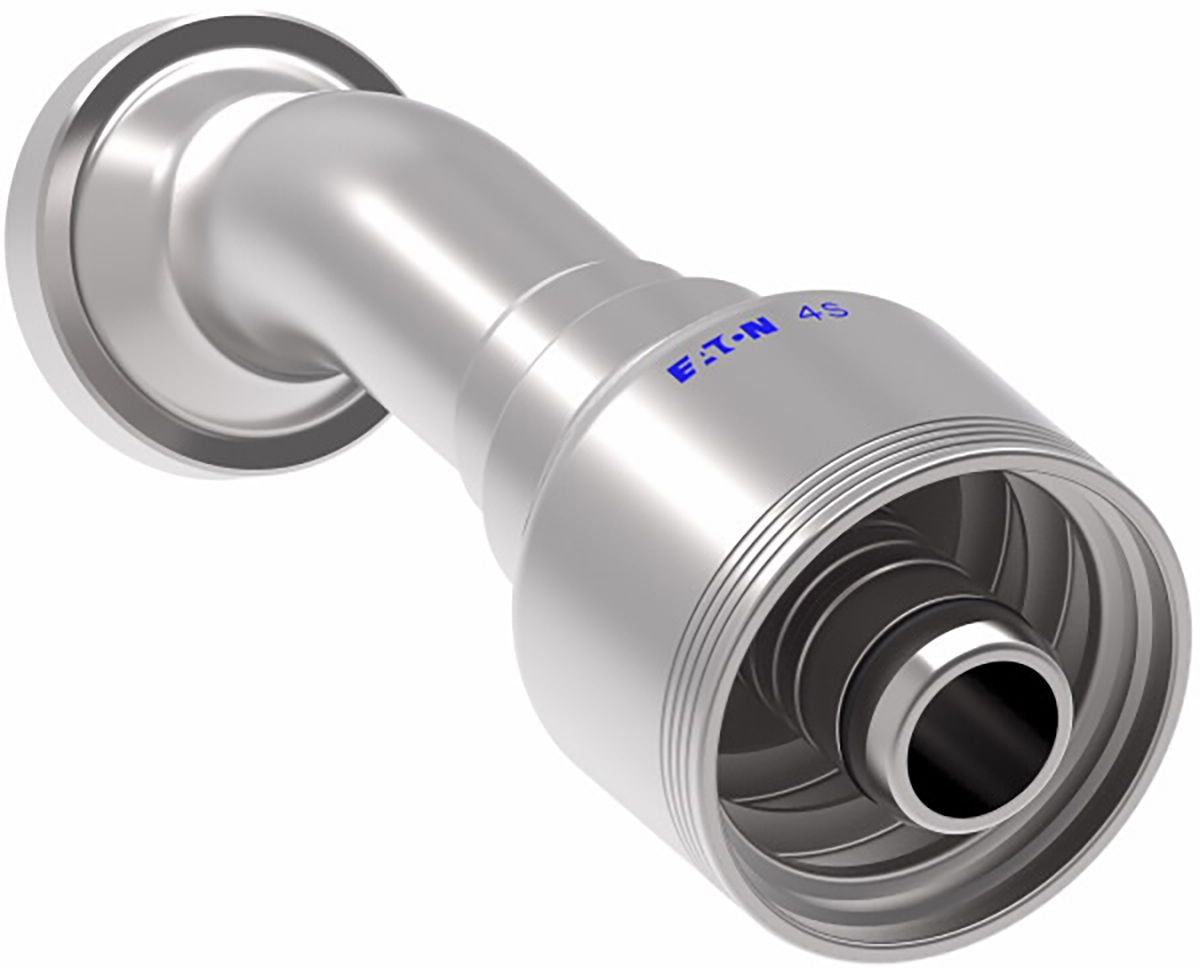

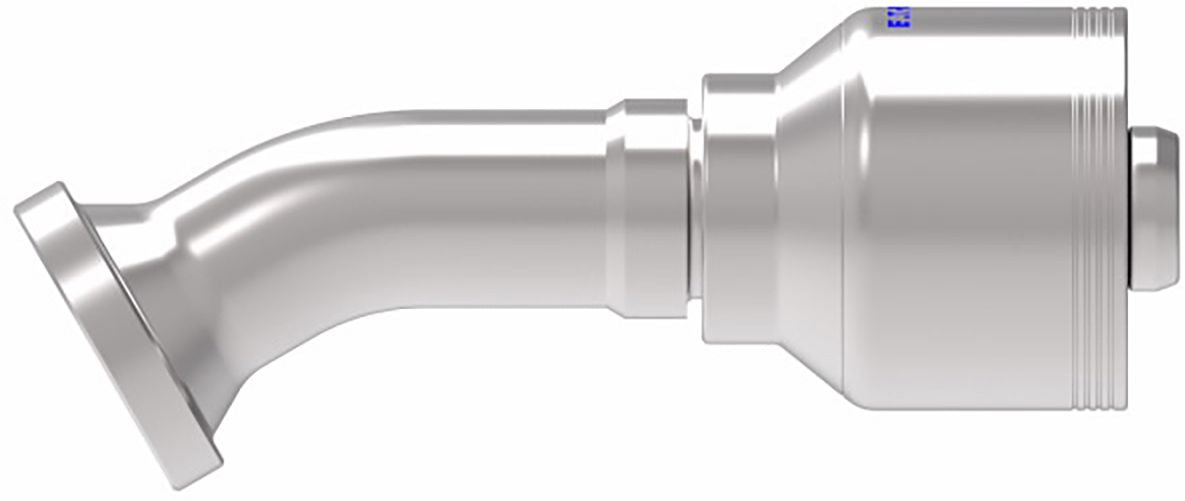

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 30°, SAE 61, 3/4 (-12) x 1.5" (-12)
(Pack of 2)

Item#: 1543039

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 8-27

Frequently Bought Together


Z Series Crimp-On Hose End 1/2" x 1/2-14

Item#: 16584

Crimp-On Hose Coupling 1/2" x 7/8-14

Item#: 88365KH

Crimp-On Hose Coupling 3/8" x 3/4-16

Item#: 88361KH

Hydraulic Cap Nut, 7/8-14"(10) Female JIC SAE 37 Degree Flare

Item#: 86152

Hydraulic Cap Nut, 1-1/16-12"(12) Female JIC SAE 37 Degree Flare

Item#: 86153

Straight Thread O-Ring Buna-N 0.644 x 0.087"

Item#: 93617

DOT Union Nylon 3/8 x 3/8"

Item#: 91820

Hex Head Plug Brass 1/4-18 Male NPT

Item#: 5363

Hex Head Plug Brass 1/2-14 Male NPT

Item#: 5365

Waterproof Work Aqua Light 66 LED

Item#: DY80000105

Butt Connector 22 to 18 AWG Red

Item#: 92822

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Item#: DA6152

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1543039
Manufacturer Model #: 4S12FLF12
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 3/4 (-12) "
Dash Size -12
Fitting End Type Flanged
Fitting Angle 30 °
Fitting Dimension B (Working End) 1.50 (-12)
Weatherhead No. 4S12FLF12
SAE Code J1176
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 3.28 "
UNSPSC #: 27121707
TAA Compliant: No
Weight: 1.7 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
