End Fittings

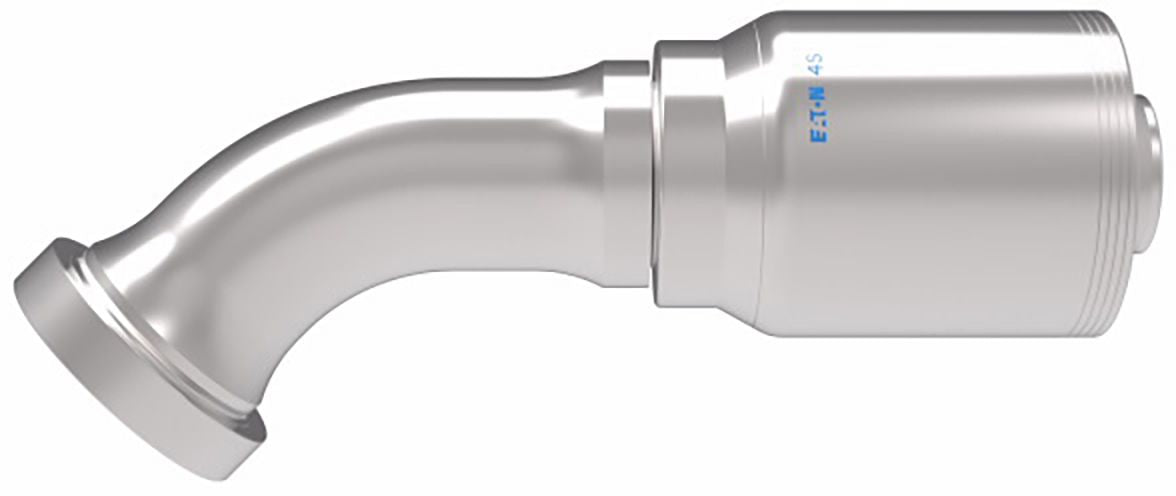

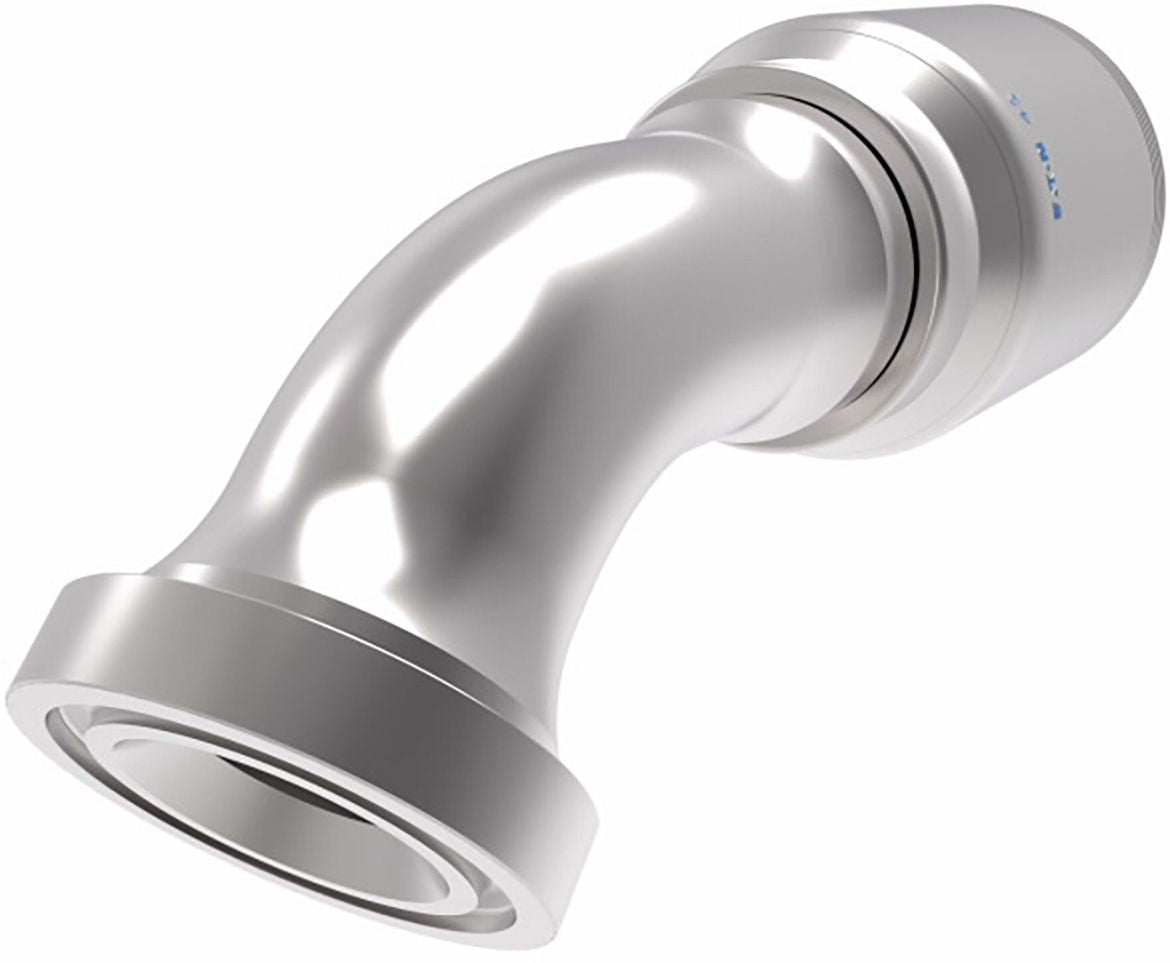

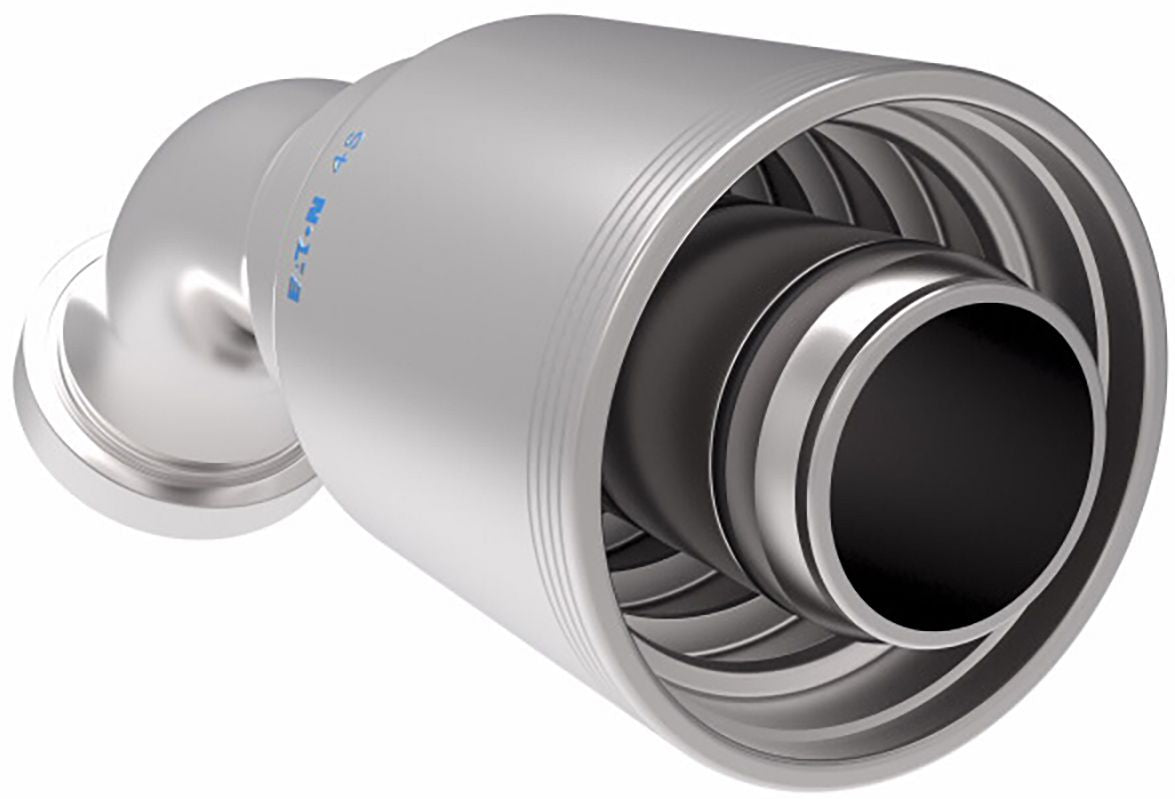

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 45°, SAE 62, 1-1/2 (-24) x 2.5" (-24)
(Pack of 1)

Item#: 1542982

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-28

Frequently Bought Together


Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16

Item#: 16649

KH Series Crimp-On Coupling 1/2" x 1-1/16-12

Item#: 88292KH

MegaCrimp Crimp-On Coupling 3/4" x 1-1/16-12

Item#: 62893

Hydraulic Cap Nut, 1-5/16-12"(16) Female JIC SAE 37 Degree Flare

Item#: 86154

MegaCrimp Crimp-On Coupling 1/2" x 3/4-16

Item#: 62885

Hydraulic Plug, 7/8-14"(10) Male JIC SAE 37 Degree Flare

Item#: 86201

DOT Connector Male Brass 1/4 x 1/4-18

Item#: 57505

Z Series Crimp-On Hose End 3/8" x 9/16-18

Item#: 16613

DOT Elbow Male Nylon 3/8 x 1/4-18

Item#: 91797

Vision Pro Super

Item#: DY21061040

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: 88435

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1542982
Manufacturer Model #: 4S24FHA24
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 1-1/2 (-24) "
Dash Size -24
Fitting End Type Flanged
Fitting Angle 45 °
Fitting Dimension B (Working End) 2.50 (-24)
Weatherhead No. 4S24FHA24
SAE Code J1176
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 5.36 "
UNSPSC #: 27121707
TAA Compliant: No
Weight: 4.38 lb
