Home Hydraulics Hydraulic End Fittings 4S Series Crimp-On Elbow 90° 3/4 x 1.63"
End Fittings

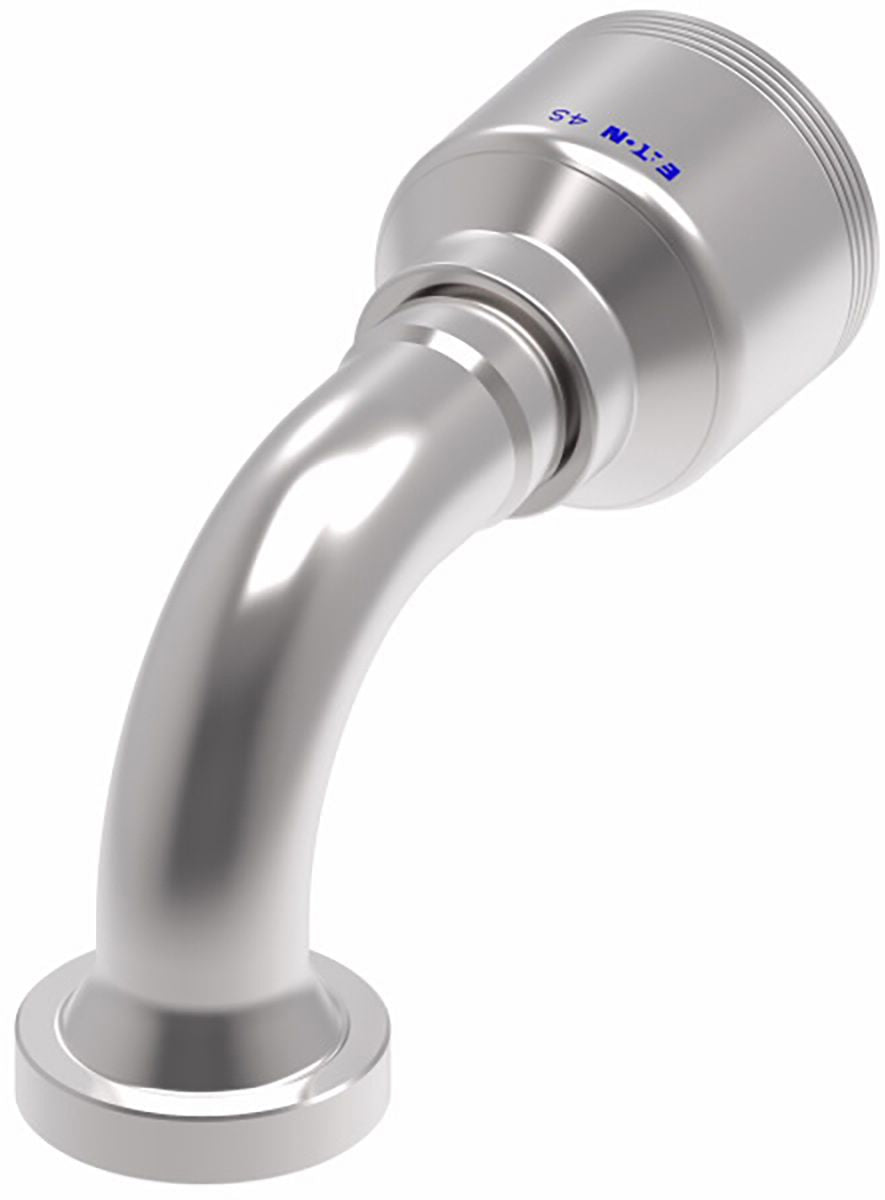

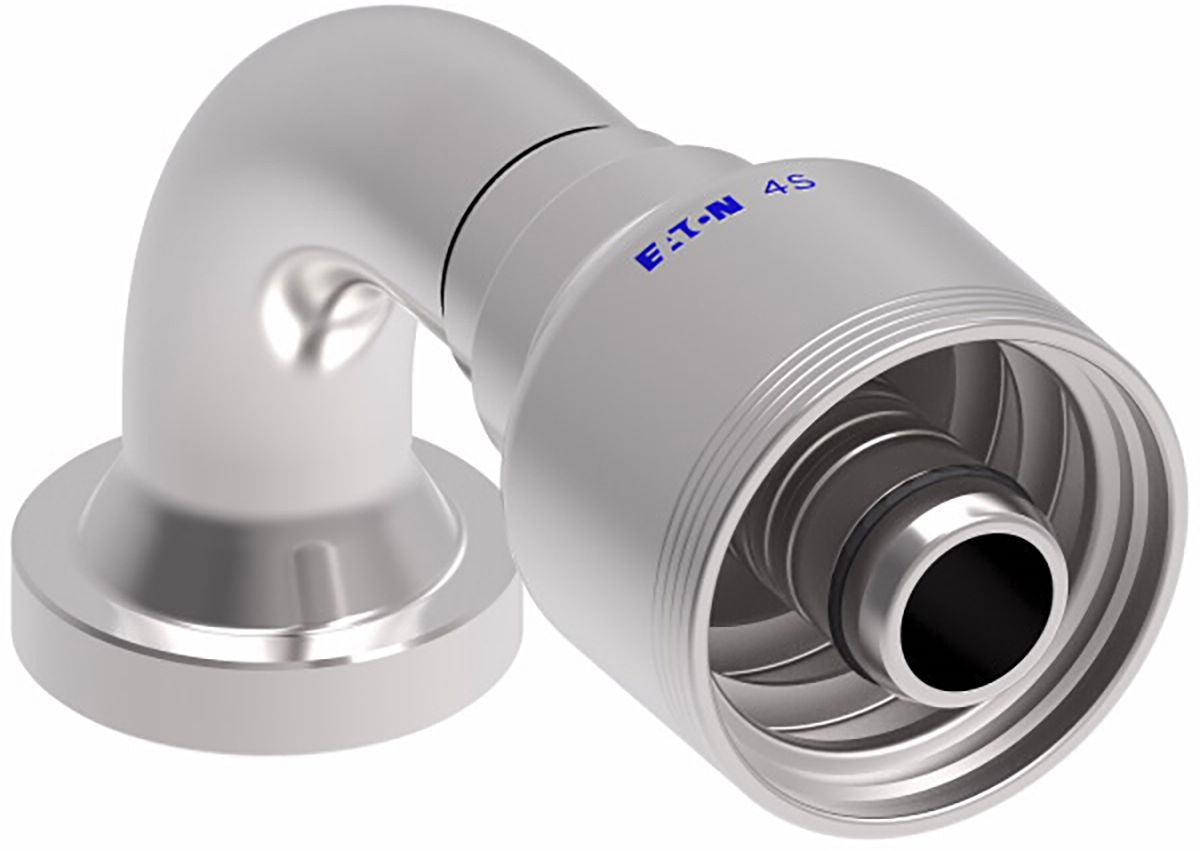

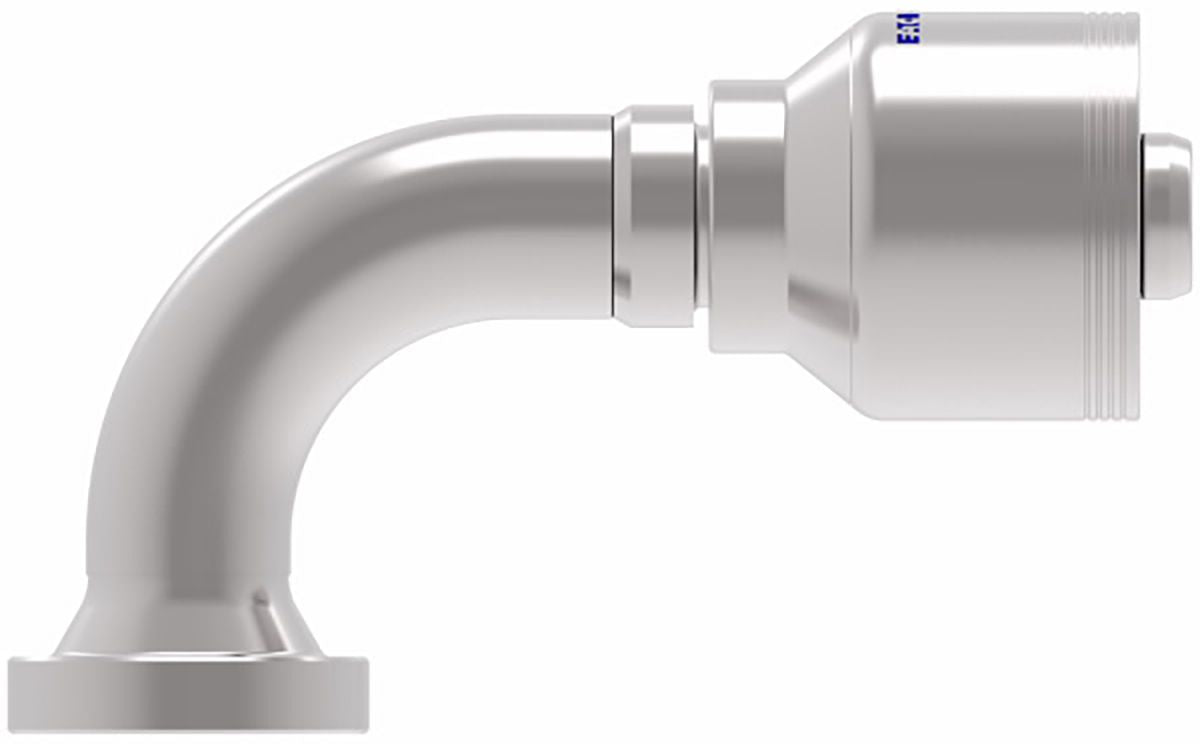

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 90°, SAE 62, 3/4 (-12) x 1.63" (-12)
(Pack of 1)

Item#: 1542978

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-28

Frequently Bought Together


Z Series Crimp-On Hose End 1/4" x 9/16-18

Item#: 16703

Z Series Crimp-On Hose End 1/2" x 7/8-14

Item#: 16616

Z Series Crimp-On Hose End 1/2" x 13/16-16

Item#: 16709

Hydraulic Cap Nut, 3/4-16"(08) Female JIC SAE 37 Degree Flare

Item#: 86151

Z Series Crimp-On Hose End 3/4" x 1-1/16-12

Item#: 16623

Z Series Crimp-On Hose End 1/4" x 9/16-18

Item#: 16703

Hex Head Plug Brass 3/8-18 Male NPT

Item#: 5364

DOT Union Brass 1/2 x 1/2"

Item#: 57501

Hose Clamp 304 SS 9/16 to 1-1/16"

Item#: 86725

Nylon Cable Tie 4" Black

Item#: 94609

180-degree Wide Beam Head Light with Side Light

Item#: 1639013

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: 88446

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1542978
Manufacturer Model #: 4S12FHB12
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 3/4 (-12) "
Dash Size -12
Fitting End Type Flanged
Fitting Angle 90 °
Fitting Dimension B (Working End) 1.63 (-12)
Weatherhead No. 4S12FHB12
SAE Code J1176
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 2.85 "
UNSPSC #: 27121707
TAA Compliant: No
Weight: 1.04 lb
