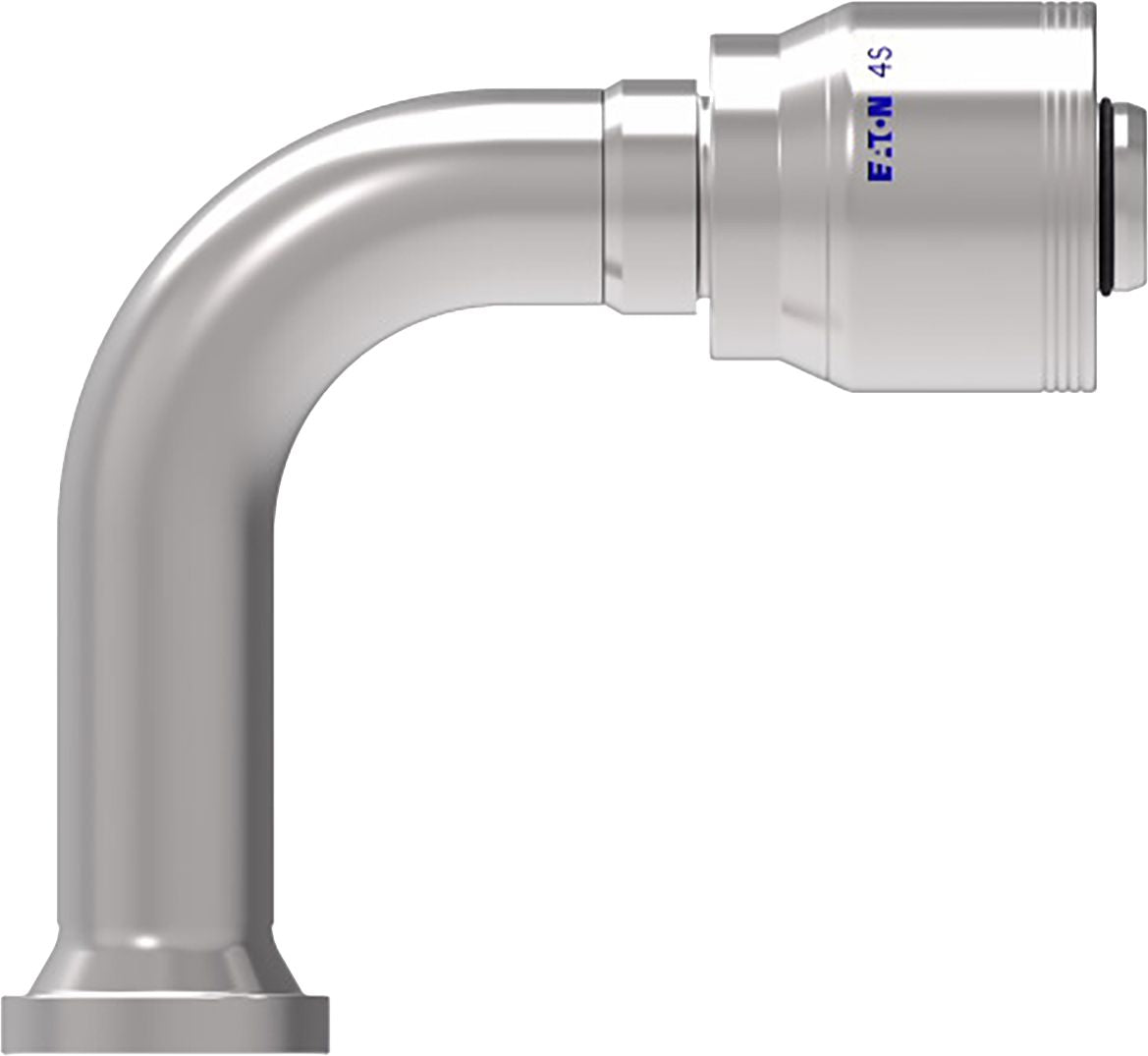

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 90°, SAE 61, 5/8" (-10) x 1-1/2 (-12)
(Pack of
1)
SKU:1173305 Item#: 1173305
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Item#: DA6152
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Item#: DY89320050
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Item#: 53979
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1173305 |
|---|---|
| Manufacturer Model #: | 4S12FLB10 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 5/8 (-10) " |
| Dash Size | -10 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Code 61 |
| Fitting End Type | Code 61 |
| Fitting Angle | 90 Degrees |
| Fitting Dimension B (Working End) | 1/2 (-12) |
| Flange Diameter | 1.50 " |
| Weatherhead No. | 4S12FLB10 |
| Size | (-10)X(-12) |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
