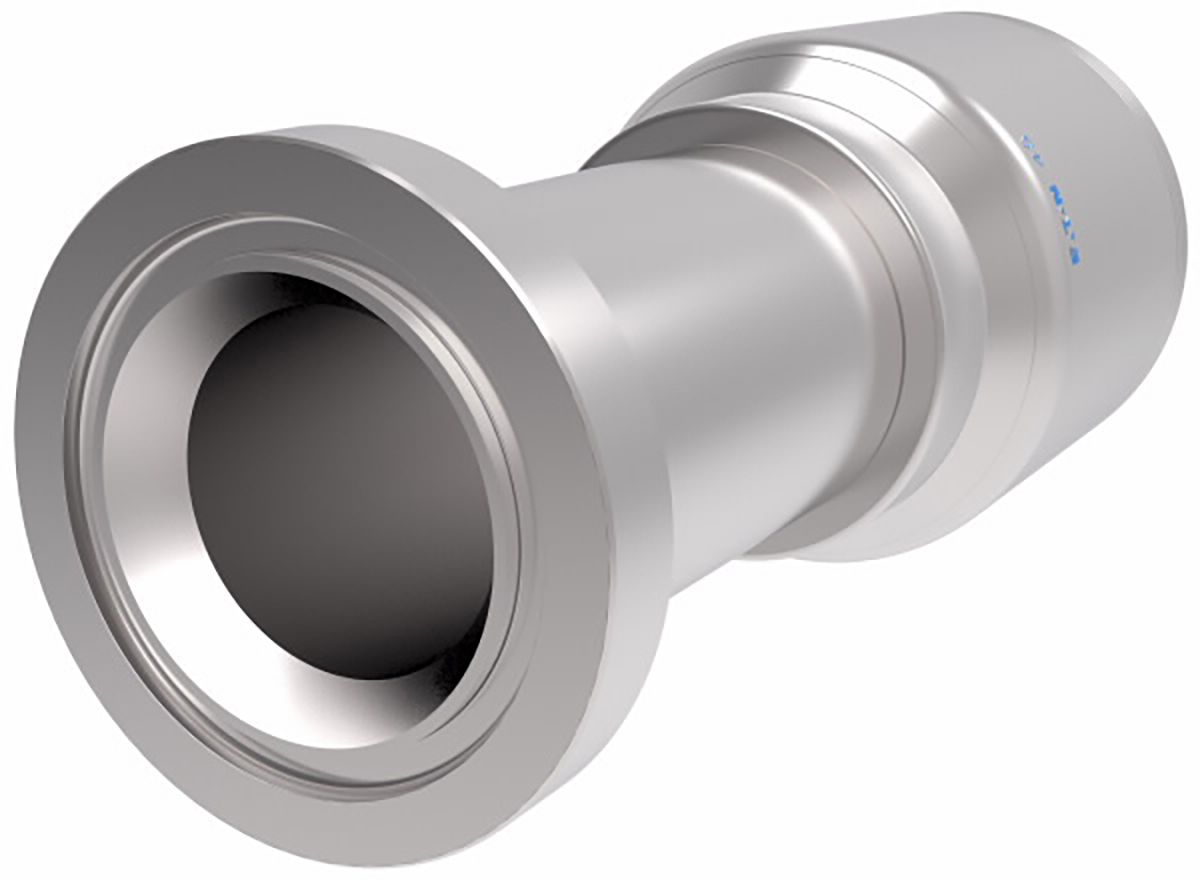

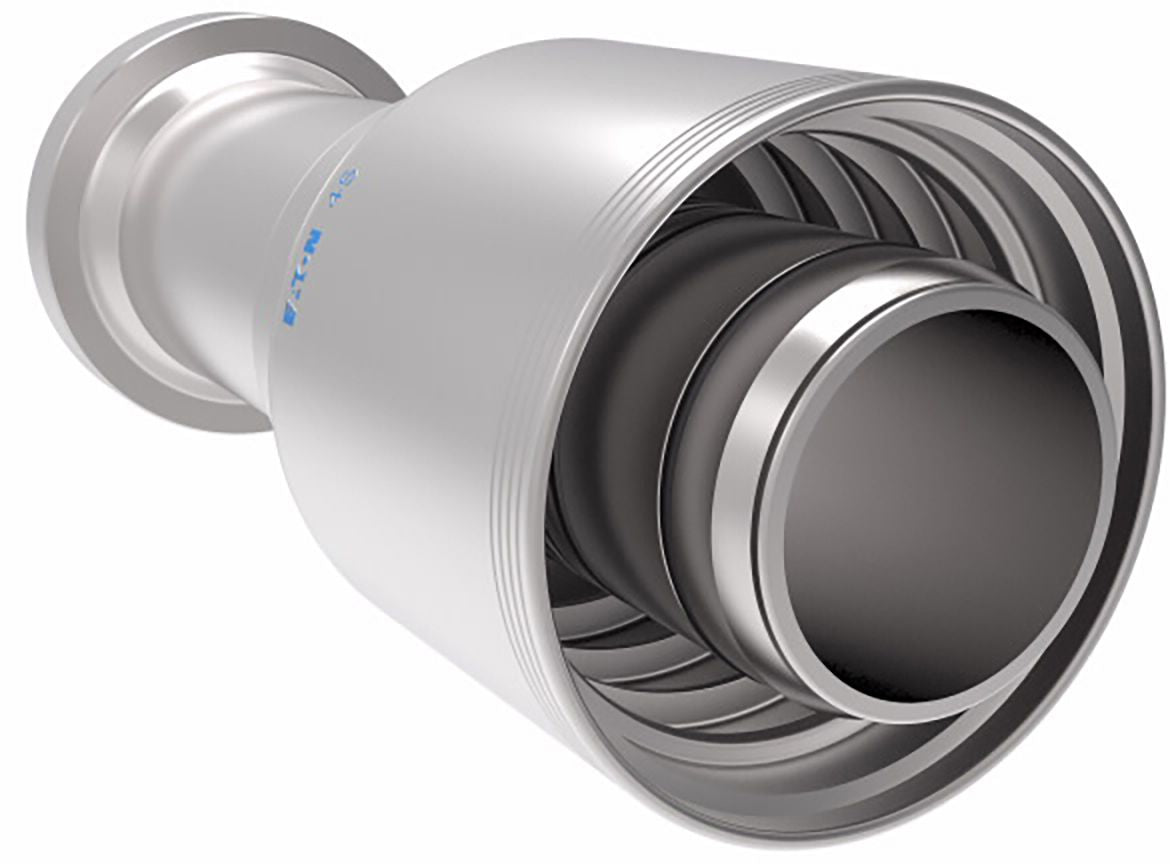

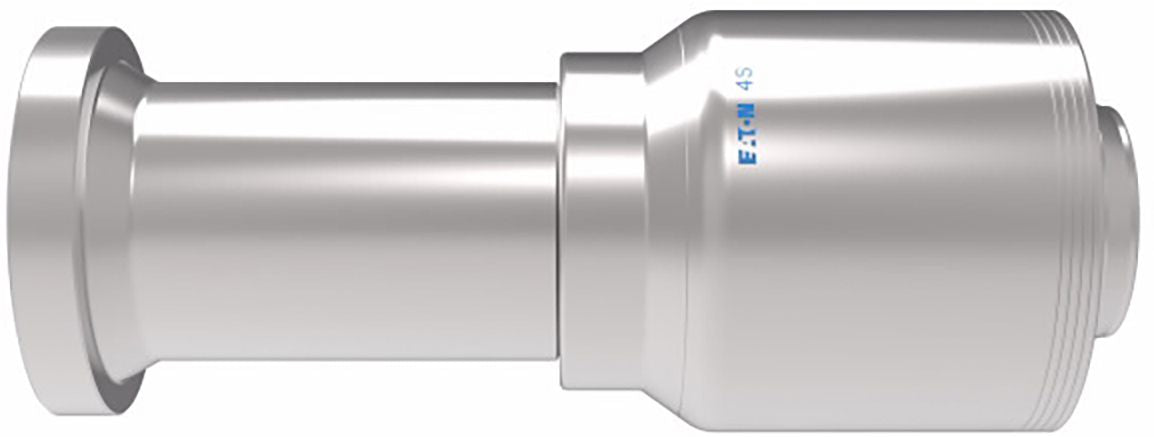

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Flanged SAE Code 62, 2 (-32) x 3.13 (-32)
(Pack of 1)

Item#: 1542984

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-28

Frequently Bought Together


KH Series Crimp-On Elbow Flare 90° 3/8" x 9/16-18

Item#: 88380KH

Crimp-On Hose Coupling 1/4" x 7/16-20

Item#: 88357KH

Z Series Crimp-On Hose End 1/2" x 1/2-14

Item#: 16604

Weatherhead H280 Hydraulic Hose Rubber 0.81" x 50'

Item#: 50799 08

Push On Tapered Cap/Plug Polyethylene 1/4"

Item#: 90791

Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16

Item#: 16649

Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"

Item#: 97564

Z Series Crimp-On Hose End 1/2 x 3/4-16"

Item#: 16615

Non-Perforated Clamp 316 SS #4 7/16 to 11/16"

Item#: 58832

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1542984
Manufacturer Model #: 4S32FH32
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 2 (-32) "
Dash Size -32
Fitting End Type Flanged
Fitting Angle Straight
Fitting Dimension B (Working End) 3.13 (-32)
Weatherhead No. 4S32FH32
SAE Code J1176
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 4.91 "
UNSPSC #: 27121707
TAA Compliant: No
Weight: 5.94 lb
