Home Hydraulics Hydraulic End Fittings 4S Series Crimp-On Hose End 3/4" x 1-5/16-12
End Fittings

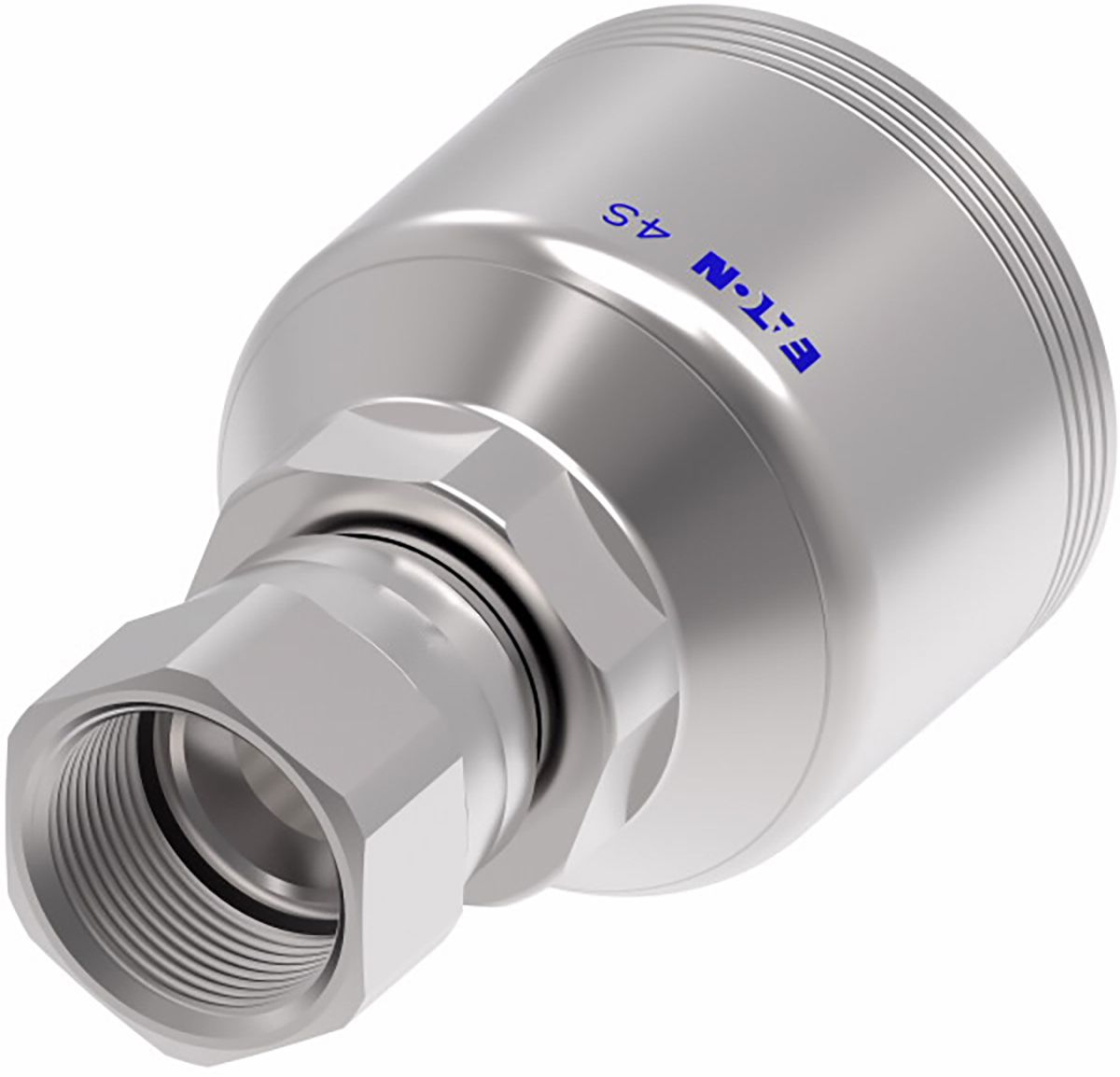

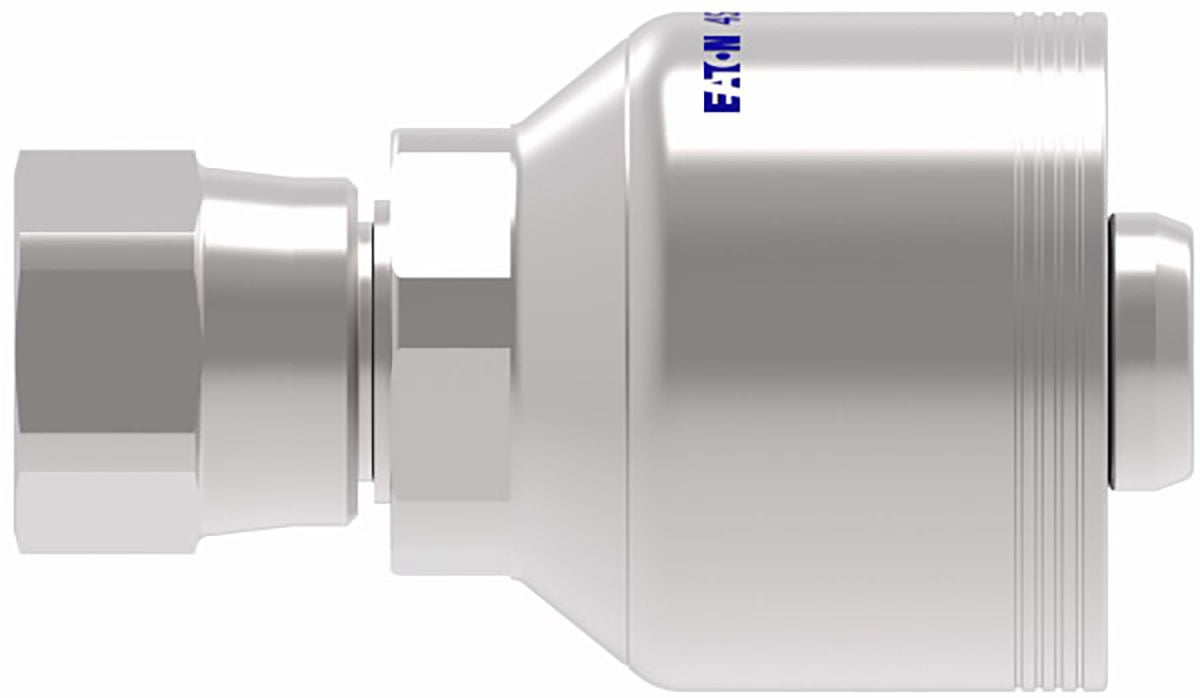

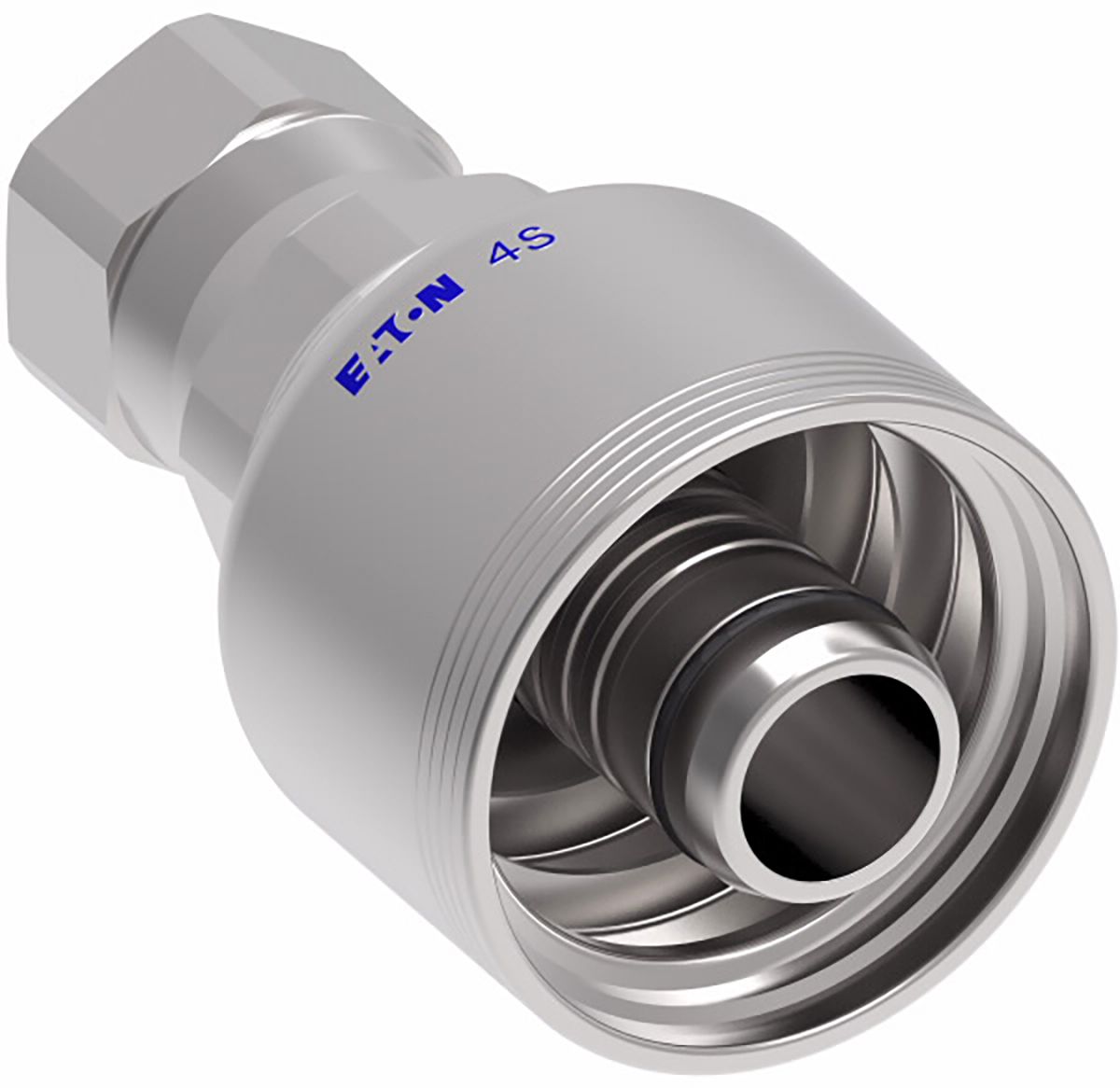

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel JIC 37°, 3/4 (-12) x 1-5/16-12 (-16)
(Pack of 2)

Item#: 1543126

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-24

Frequently Bought Together


Crimp-On Hose Coupling 1/2" x 7/8-14

Item#: 88365KH

Crimp-On Hose Coupling 3/8" x 3/4-16

Item#: 88361KH

MegaCrimp Crimp-On Coupling 1/2" x 3/4-16

Item#: 62885

Hydraulic Cap Nut, 1-1/16-12"(12) Female JIC SAE 37 Degree Flare

Item#: 86153

Straight Thread O-Ring Buna-N 0.644 x 0.087"

Item#: 93617

Z Series Crimp-On Hose End 1/2" x 13/16-16

Item#: 16709

Hex Head Plug Brass 1/4-18 Male NPT

Item#: 5363

Hex Head Plug Brass 1/2-14 Male NPT

Item#: 5365

Hose Clamp 304 SS 9/16 to 1-1/4"

Item#: 86726

Butt Connector 22 to 18 AWG Red

Item#: 92822

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Item#: DA6152

Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece

Item#: DY89320050

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1543126
Manufacturer Model #: 4SA16FJ12
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 3/4 (-12) "
Dash Size -12
Gender Female
Fitting End Type JIC 37
Fitting Angle Straight
Fitting Dimension B (Working End) 1-5/16-12 (-16)
Weatherhead No. 4SA16FJ12
SAE Code J1176
Hex Size 1.1875 "
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 1.73 "
UNSPSC #: 27121707
TAA Compliant: No
Weight: 1.53 lb
