Home End Fittings 4S Series Crimp-On Hose Fitting 1" x 1-7/16-12
End Fittings

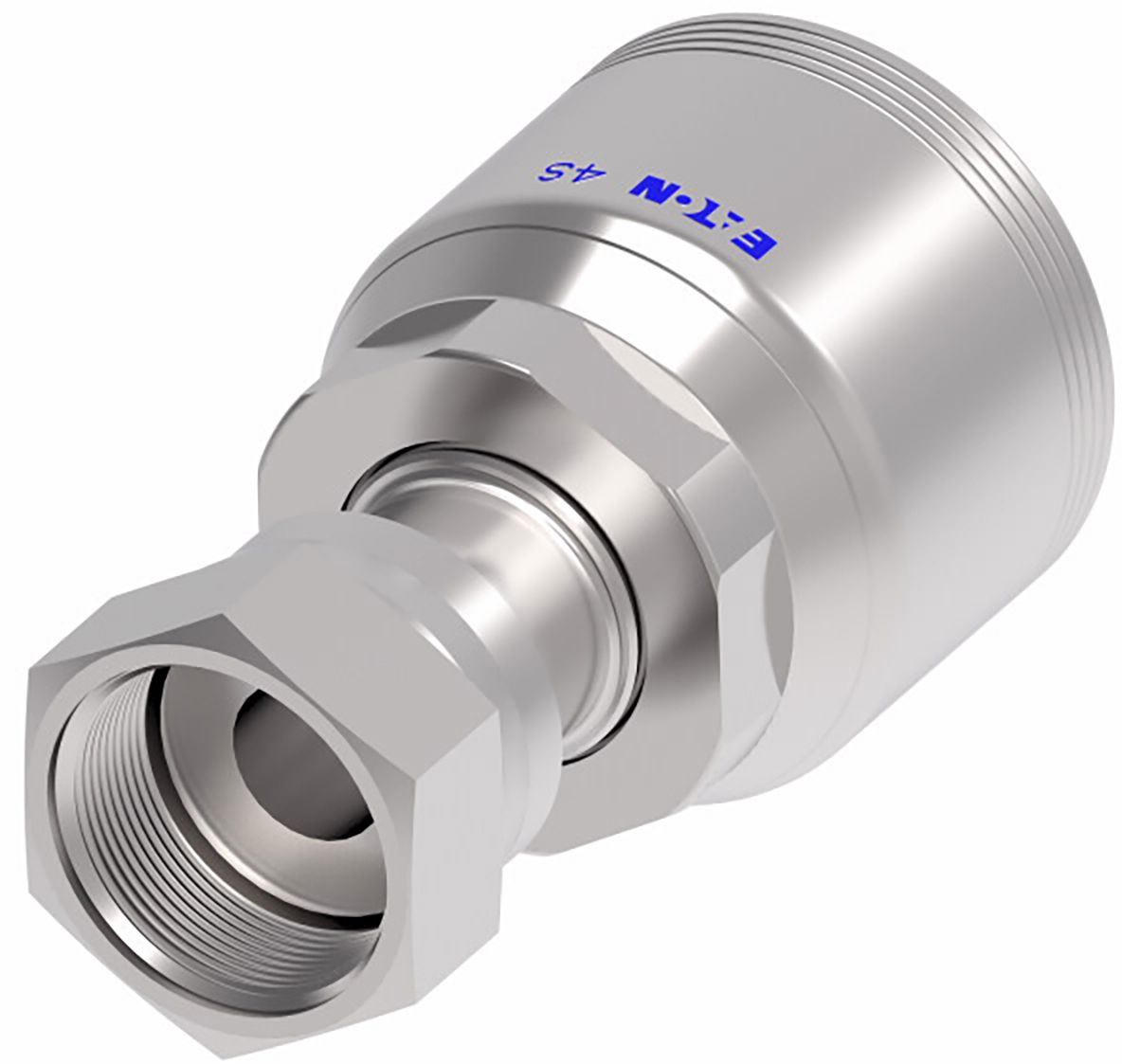

4S Series Crimp-On Hose End Fitting, Carbon Steel, Female Swivel O Ring Seal, Straight, 1" (-16) x 1-7/16-12 (-16)
(Pack of 1)

Item#: 1543119

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-25

Frequently Bought Together


Z Series Crimp-On Hose End 3/4" x 1-3/16-12

Item#: 16716

Crimp-On Coupling 1/4" x 9/16-18

Item#: 51140KH

Z Series Crimp-On Hose End 1/4" x 11/16-16

Item#: 16704

Hydraulic Hose Protector 4 x 2-1/2" Yellow

Item#: 62379

Crimp-On Hose Coupling 1/2" x 1/2-14

Item#: 88314KH

Straight Thread O-Ring Buna-N 0.468 x 0.078"

Item#: 93616

Miniature Clamp SS 5/16 to 7/8"

Item#: 86723

DOT Compression Union Brass 1/4"

Item#: 84253

Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18

Item#: 5317

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

PTO Pin Lock 1/4 x 2-1/2"

Item#: 64348

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: FA88447

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1543119
Manufacturer Model #: 4SA16FR16
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 1 (-16) "
Dash Size -16
Gender Female
Fitting End Type Rigid
Fitting Angle Straight
Fitting Dimension B (Working End) 1-7/16-12 (-16)
Weatherhead No. 4SA16FR16
SAE Code J1176
Hex Size 1.625 "
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 1.68 "
UNSPSC #: 27121707
TAA Compliant: No
Weight: 1.2 lb
