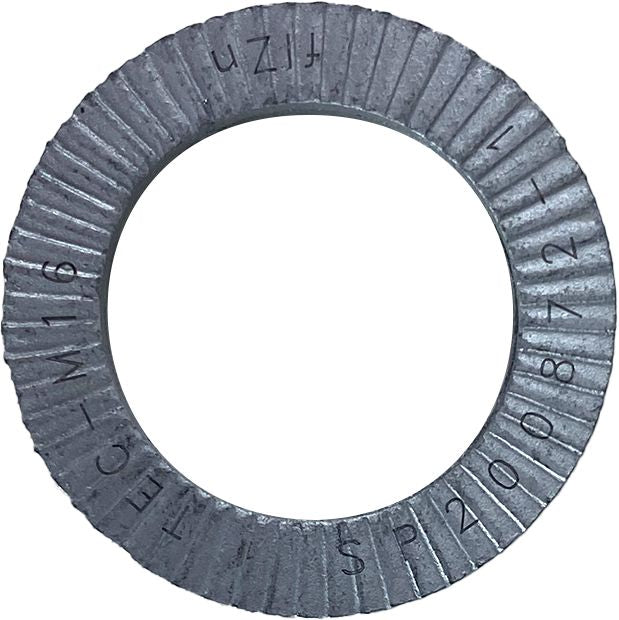

5/8 16mm Standard Self Lock Washer
(Pack of
4.0)
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration
• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• Special Delta Protekt® coating is RoHS compliant and provides better corrosion resistance than traditional zinc
• For use with up to Grade 8, Class 12.9 fasteners
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Hex Nut Grade 5 Steel 1/2-13
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Steel 3/8-16
Couldn't load pickup availability
DIN 127B Standard Lock Washer M4
Couldn't load pickup availability
DIN 127B Lock Washer A2 Stainless Steel M5
Couldn't load pickup availability
Lock Washer Non-Linking Steel 1"
Couldn't load pickup availability
Cross Linked Primary Wire 20 AWG 100' White
Couldn't load pickup availability
Cross Linked Primary Wire 20 AWG 100' Green
Couldn't load pickup availability
Cross Linked Primary Wire 18 AWG 100' Brown
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
11Pc Lock and Load Hammer Set
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Lock Washer Non-Linking Steel 3/8"
Couldn't load pickup availability
Fender Washer Standard Steel 1"
Couldn't load pickup availability
Fender Washer Standard Steel 1-1/4"
Couldn't load pickup availability
Product Description
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• Special Delta Protekt® coating is RoHS compliant and provides better corrosion resistance than traditional zinc
• For use with up to Grade 8, Class 12.9 fasteners
Technical Specifications
| Item#: | DY03683100 |
|---|---|
| Nominal Size | 5/8" (M16) |
| Type | Self-Locking Lock Washer |
| Material | Carbon Steel |
| I.D. | 0.67 " |
| O.D. | 1.00 " |
| Finish | Delta Protekt® |
| Thickness | 0.13 " |
| UNSPSC #: | 31161801 |
| TAA Compliant: | No |
| Weight: | 0.09 lb |
