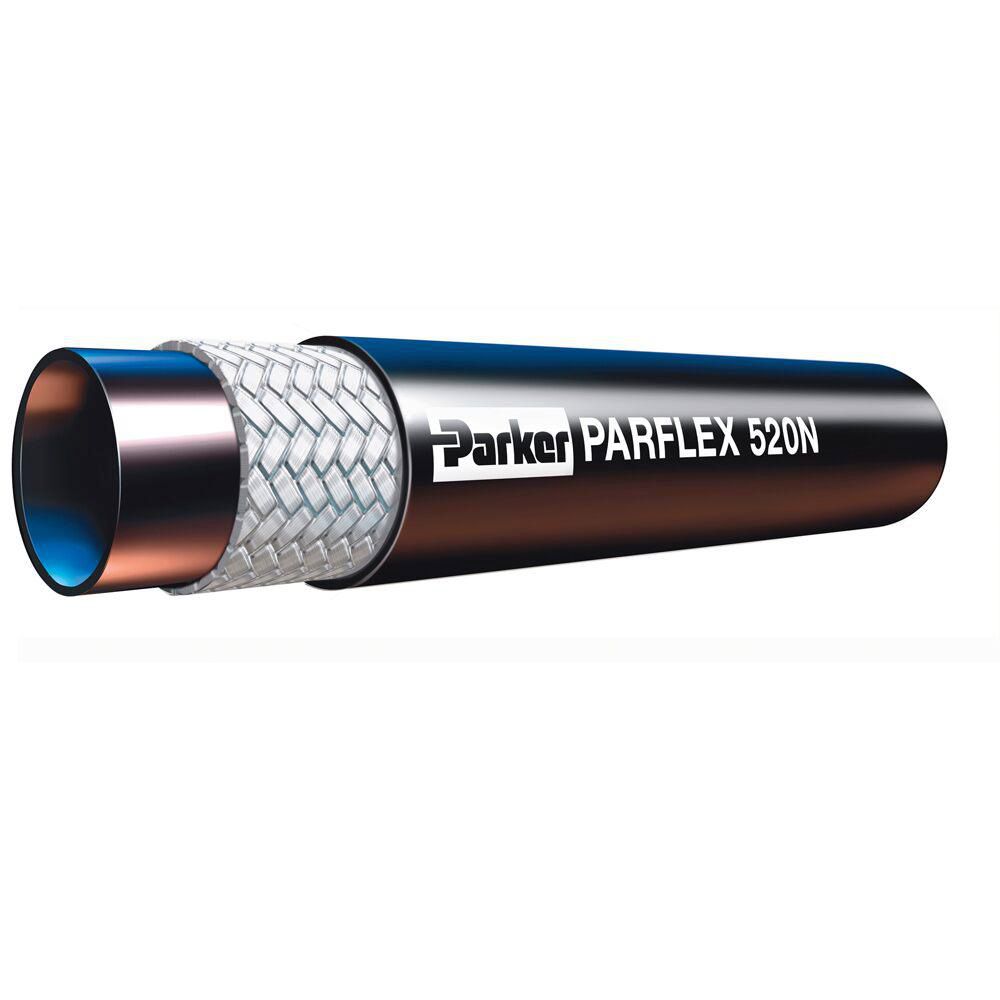

520N Hydraulic Hose, Urethane, 1-Steel Braided, 3/16" ID, 0.43" OD, 50' Length, 5000PSI, SAE 100R8
(Pack of
50)
SKU:88643 Item#: 88643
Lighter weight and smaller O.D. than 100R2 rubber hose, this hose is well-suited for hydraulic and pneumatic circuits and systems; replaces 100R2 hose whenever greater flexibility, fluid compatibility and cover durability are required.
• Polymeric core tube, aramid reinforcement, abrasion-resistant black perforated urethane cover• Not recommended for over-sheave (pulley) applications
SAE 100R8
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R8 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Frequently Bought Together
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Product Description
Lighter weight and smaller O.D. than 100R2 rubber hose, this hose is well-suited for hydraulic and pneumatic circuits and systems; replaces 100R2 hose whenever greater flexibility, fluid compatibility and cover durability are required.• Polymeric core tube, aramid reinforcement, abrasion-resistant black perforated urethane cover• Not recommended for over-sheave (pulley) applications
SAE 100R8
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R8 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Technical Specifications
| Item#: | 88643 |
|---|---|
| Manufacturer Model #: | 520N-3 |
| Type | Thermoplastic Hose |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R8 |
| Manufacturer Series Number | 520N |
| Manufacturer Series Name | Parflex |
| Dash Size | -3 |
| Working Pressure | 5,000 PSI |
| Burst Pressure | 20,000 PSI |
| Minimum Bend Radius | 1-1/2 " |
| Inner Tube Material | Nylon |
| Hose Reinforcement | Aramid Fiber |
| Hose Cover Material | Perforated Urethane |
| Fitting Series | 55 |
| Temperature | -40F to +212F |
| Color | Black |
| Size | 3/16 (-3) |
| Parker Crimp Fitting Series | 55 |
| Swage Die Selection | 88802 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 3.4 lb |
