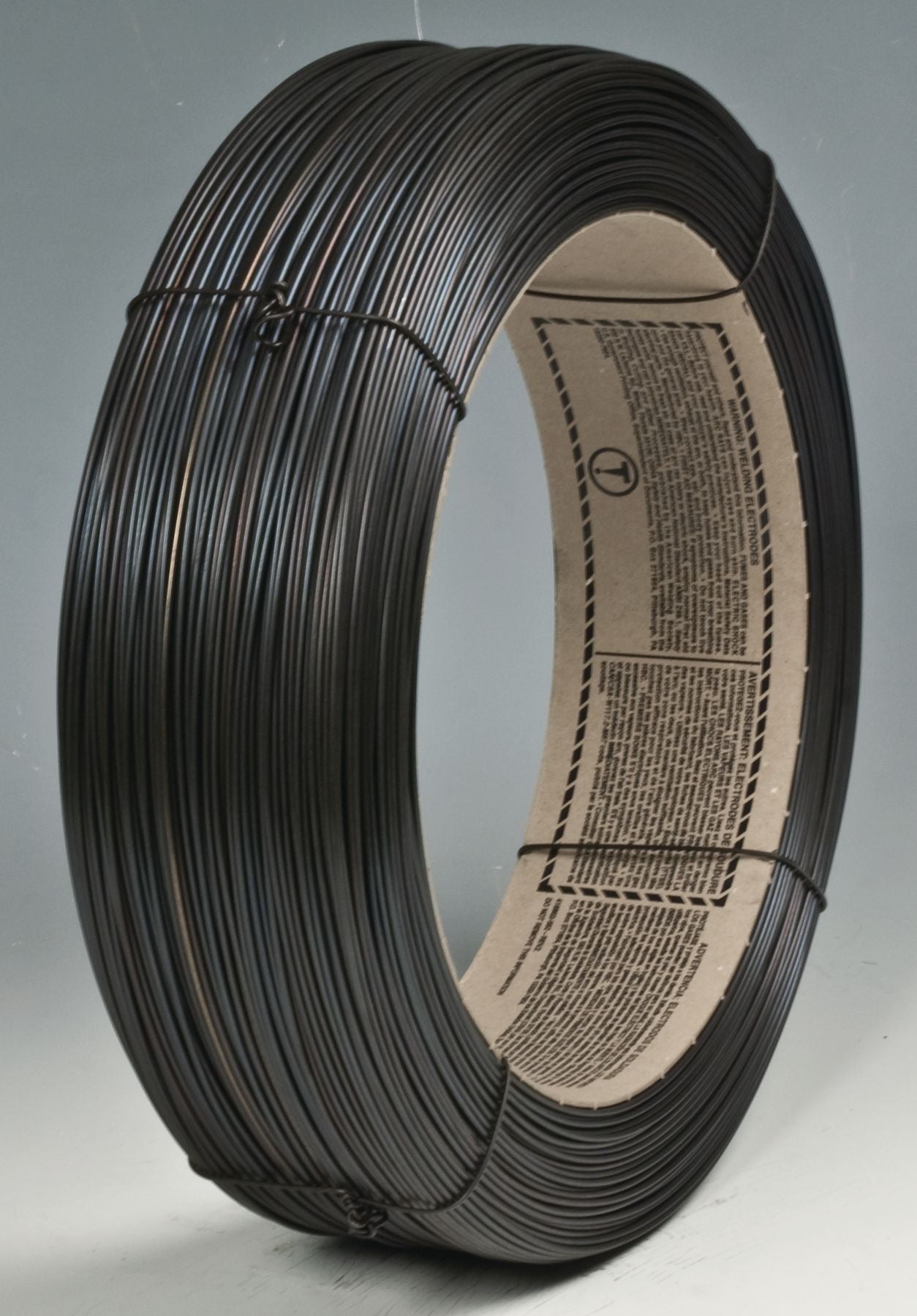

7109 Austenitic Hardfacing MIG Welding Wire 7/64"
(Pack of
60)
SKU:CW1929 Item#: CW1929
Designed for low abrasion resistance and high impact situations.
Superior Advantages
• Work hardens under heavy impact conditions
• Unlimited pass-over-pass applications
• High operator appeal – smooth running, quiet and minimal sparks
Buildup and joining of manganese steels and carbon steels
Hardness: Up to Rc 54 (3rd pass)No. of Passes: Up to threePolarity: DC ReverseGas: None or 75% Ar, 25% CO2
Typical Applications
• Bucket teeth
• Hammer mill and mill swing hammers
• Tampers and jackhammers
• Impactor crusher bars
Usage ProcedureWhen CRONALLOY EAGLE 7109M-FC is applied via the open arc method, high deposition rates are possible. Weld current of 28-30V/250A will give a deposition of approximately 12lbs./hr.DC current, reverse polarity is preferred for better arc stability. For general hardfacing, wire stickout may vary from 3/4" to 1-1/2". On low current applications (175 – 240 amps), approximately 1" stickout should be maintained.The hardness figures shown are typical, and variations, higher or lowe
Frequently Bought Together
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Product Description
Designed for low abrasion resistance and high impact situations.Superior Advantages
• Work hardens under heavy impact conditions
• Unlimited pass-over-pass applications
• High operator appeal – smooth running, quiet and minimal sparks
Buildup and joining of manganese steels and carbon steels
Hardness: Up to Rc 54 (3rd pass)No. of Passes: Up to threePolarity: DC ReverseGas: None or 75% Ar, 25% CO2
Typical Applications
• Bucket teeth
• Hammer mill and mill swing hammers
• Tampers and jackhammers
• Impactor crusher bars
Usage ProcedureWhen CRONALLOY EAGLE 7109M-FC is applied via the open arc method, high deposition rates are possible. Weld current of 28-30V/250A will give a deposition of approximately 12lbs./hr.DC current, reverse polarity is preferred for better arc stability. For general hardfacing, wire stickout may vary from 3/4" to 1-1/2". On low current applications (175 – 240 amps), approximately 1" stickout should be maintained.The hardness figures shown are typical, and variations, higher or lowe
Technical Specifications
| Item#: | CW1929 |
|---|---|
| Welding Process | MIG |
| Type | Flux Cored |
| Diameter | 7/64 " |
| Base Metal | Austenitic |
| Hardness | 45-54 (WH) HRC |
| Shielding Gas | No Gas |
| Polarity | DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 60.5 lb |
