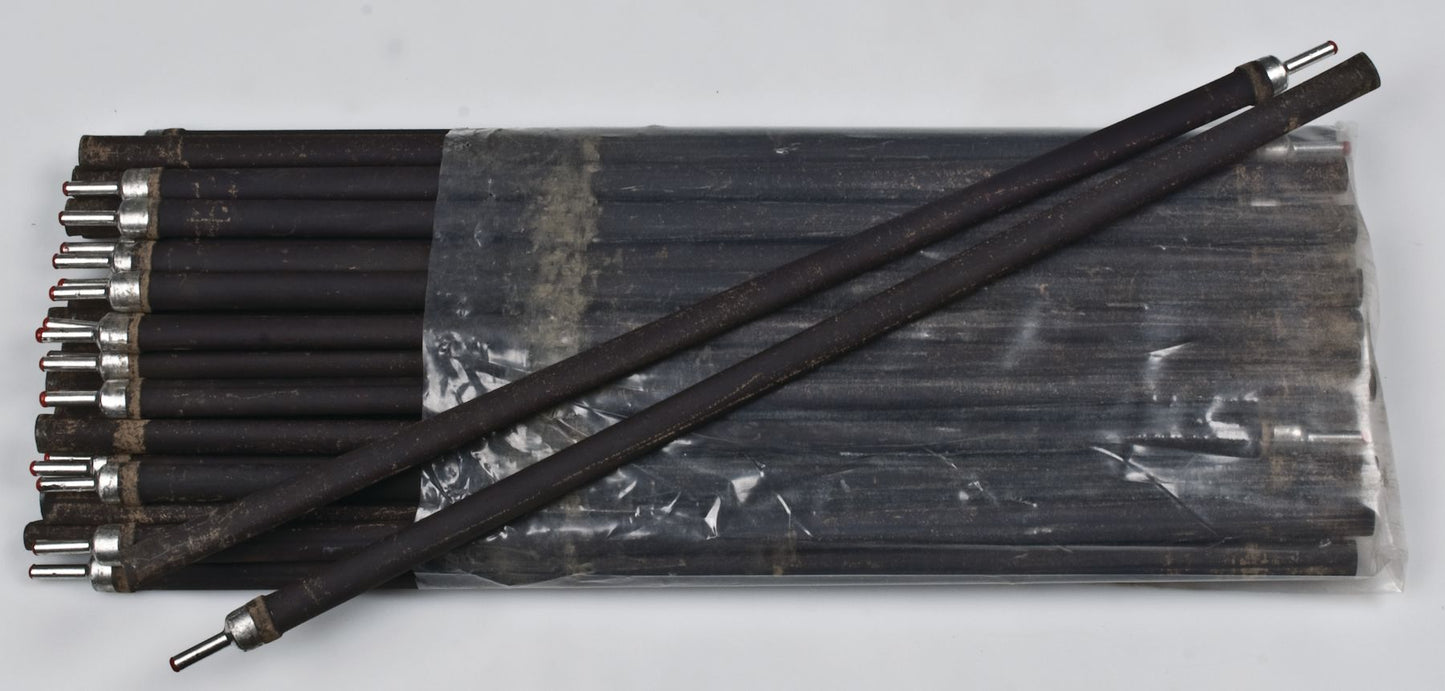

7370 Carbide Hardfacing Stick Rod Electrode 1/2 "
(Pack of
25)
SKU:CW1920 Item#: CW1920
Designed for high abrasion resistance in low to moderate impact situations.
Superior Advantages
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
Corrosion-resistant stabilized chrome carbide
Hardness: Rc 64 (2nd pass)Polarity: AC or DC Reverse
Not recommended for manganese steel
Typical Applications
• Dredge pumps
• Screw conveyors
• Chutes for transporting sand and gravel
• Bucket lips
• Skid pads
Usage ProcedureUse AC or DC reverse polarity. Outstanding tribological particle metal transfer allows for both flat and out-of-position welding.
High Abrasion, Moderate Impact Resistance
Technical TipRelief checks are normal. Finish by grinding if necessary.
Frequently Bought Together
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Product Description
Designed for high abrasion resistance in low to moderate impact situations.Superior Advantages
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
Corrosion-resistant stabilized chrome carbide
Hardness: Rc 64 (2nd pass)Polarity: AC or DC Reverse
Not recommended for manganese steel
Typical Applications
• Dredge pumps
• Screw conveyors
• Chutes for transporting sand and gravel
• Bucket lips
• Skid pads
Usage ProcedureUse AC or DC reverse polarity. Outstanding tribological particle metal transfer allows for both flat and out-of-position welding.
High Abrasion, Moderate Impact Resistance
Technical TipRelief checks are normal. Finish by grinding if necessary.
Technical Specifications
| Item#: | CW1920 |
|---|---|
| Welding Process | Stick |
| Type | Tubular |
| Diameter | 1/2 " |
| Length | 18 " |
| Base Metal | Carbide |
| Carbide Type | Corrosion Resistant Complex |
| Hardness | 61-64 HRC |
| Polarity | AC/DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 25.85 lb |
