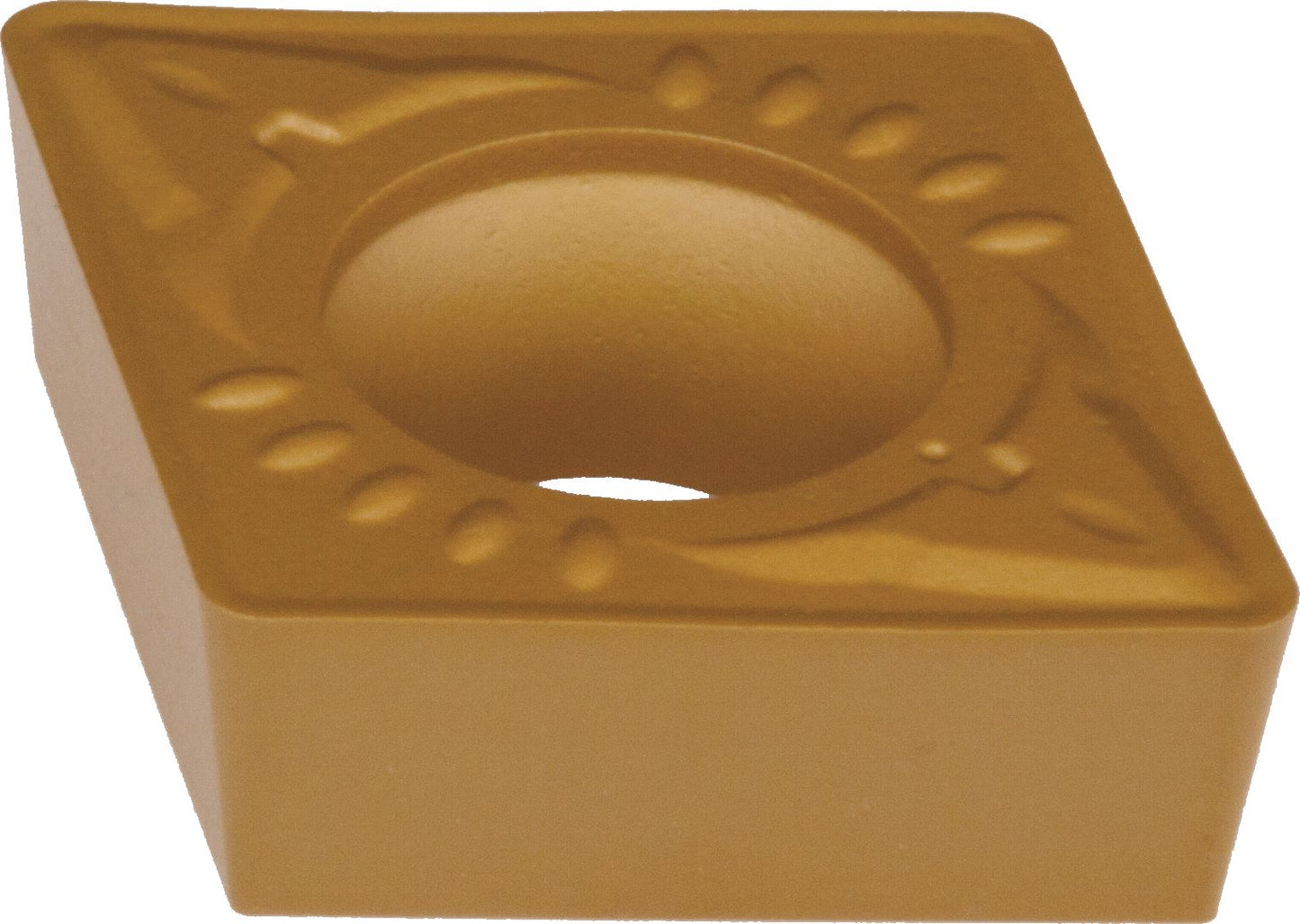

80° Diamond Positive Turning Insert 0.354"
(Pack of
10)
Best for Alloy Steel - Universal
Frequently Bought Together
Curved Wood Handle Scratch Brush
Item#: 92035
Couldn't load pickup availability
Jobber Length Drill Bit HSS 19/64"
Item#: 84736
Couldn't load pickup availability
Jobber Length Drill Bit Kit 29 Pcs
Item#: 84750A
Couldn't load pickup availability
60° Triangle Positive Turning Insert 0.629"
Item#: 1353743
Couldn't load pickup availability
60° Triangle Positive Turning Insert 0.629"
Item#: 1353752
Couldn't load pickup availability
Turning Tool Milling Insert TORX Screw
Item#: 1353876
Couldn't load pickup availability
Triangle Insert Boring Bar Right Hand 0.500"
Item#: 1353438
Couldn't load pickup availability
Integral Shank Toolholder Steel 1.531"
Item#: 1353623
Couldn't load pickup availability
60° Triangle Positive Turning Insert 0.629"
Item#: 1353752
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Item#: 94728
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Item#: 94727
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Item#: A100
Couldn't load pickup availability
Cut-Off Wheel for Right Angle Grinder 4-1/2"
Item#: 60773M12
Couldn't load pickup availability
Mounted Flap Wheel 2"
Item#: 83834
Couldn't load pickup availability
Jobber Length Drill Bit HSS 9/32"
Item#: 84735
Couldn't load pickup availability
Product Description
Best for Alloy Steel - UniversalTechnical Specifications
| Item#: | 1353737 |
|---|---|
| Type | Insert |
| Insert | CCMT |
| Chip Breaker Code | PEM |
| Compatible Materials | Stainless Steel,Carbon & Alloy Steel |
| Shape | 80° Diamond |
| Direction | Neutral |
| Clearance Angle | 7° Positive |
| Grade | DPC25UT |
| Material | Carbide |
| Coating | CVD |
| Effective Cutting Edge Length | 0.236 " |
| Length | 0.354 " |
| Depth of Cut | 0.118 " |
| Feed Rate | 0.2 |
| Surface Feet Per Minute | 950 |
| Thickness | 0.1562 " |
| I.C. (Inscribed Circle) | 0.375 " |
| Insert Tip Radius | 0.0312 " |
| UNSPSC #: | 27111701 |
| TAA Compliant: | Yes |
