Swivel Anchor Concrete Bolt, Steel, D-Ring, 5000 lbs. Breaking Strength, Gold
(Pack of
1)
SKU:1648235 Item#: 1648235

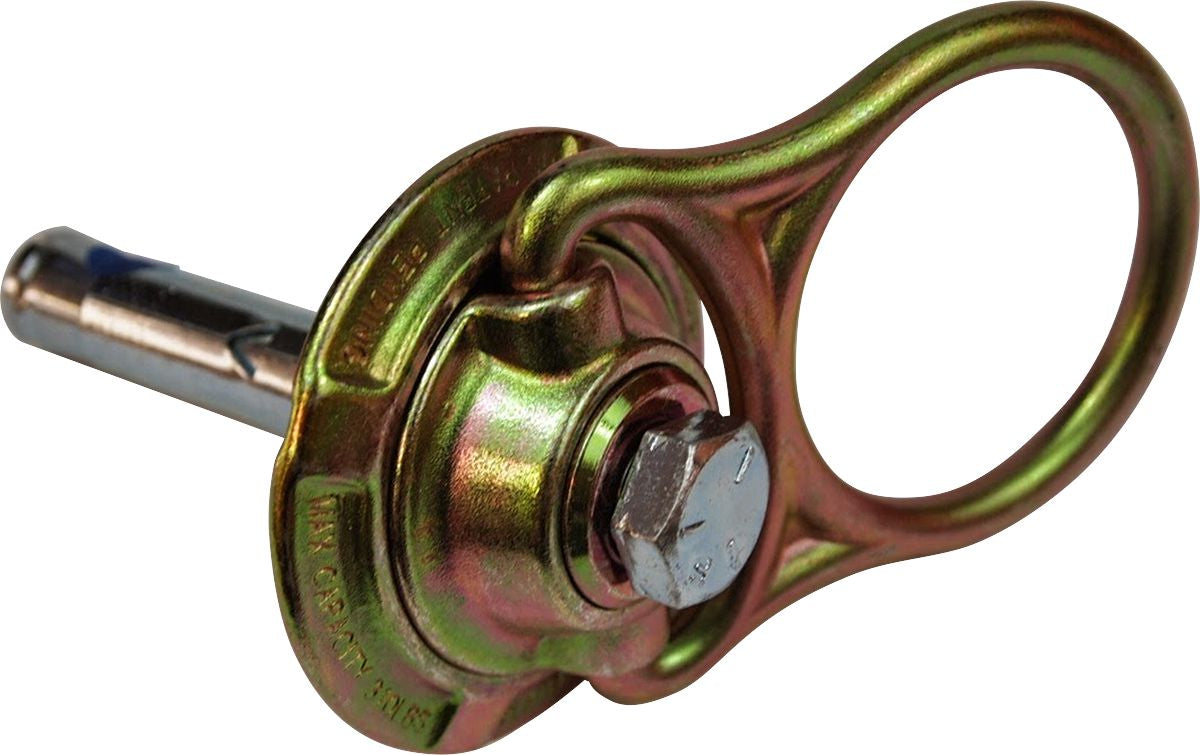

The Werner 5K Mega-Swivel Concrete Anchor is a robust anchorage bolt for use in concrete applications. The bolt requires a pre-drilled hole of 1/2 inch and 4.5 inches depth in 3000 psi concrete with minimum concrete thickness of 7 inches.
• Robust steel design with 360 degree swivel of the forged D-ring
• Drill hole of 1/2 inch with 4.5 inch depth
• Minimum 3000 psi concrete and 7 inch thickness
• Minimum Breaking Strength (MBS): 5,000 pounds
• Meets ANSI and OSHA Standards
Frequently Bought Together
Tool Tethering Kit, Grn, OS, 10 lb Max Load Lmit, Incl Single Leg Lanyard/Tool Connectors/Tool Tape
Couldn't load pickup availability
Webbing Tool Connector, Green, One Size, 3 lb Maximum Load Lmit, 5.5" Length, Swivel Head D-Ring
Couldn't load pickup availability
Tool Tethering Utility Pouch, Green, One Size, Nylon and Elastic Webbing, 5 lb Maximum Load Lmit
Couldn't load pickup availability
HRC Kit Back Pack, Orange, One Size, 600D Polyester
Couldn't load pickup availability
Caiman Tool Bag, Black, One Size, Ballistic Nylon, 13-External & 10-Internal Pockets
Couldn't load pickup availability
Arc Shield Storage Bag, Blue, One Size, Cotton, Fleece Lined, Drawstring Closure
Couldn't load pickup availability
CL1 Checklite Safety Glasses
Couldn't load pickup availability
Diamond-Textured Nitrile Gloves, Orange, 6 Mil, Large, 100/Box
Couldn't load pickup availability
Baseball Style Bump Cap with HDPE Protective Liner and Adjustable Back
Couldn't load pickup availability
LCT Lens Cleaning Towelettes
Couldn't load pickup availability
Premium Nitrile Gloves, Black, 6 Mil, Medium, 100/Box
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Asst
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Product Description
The Werner 5K Mega-Swivel Concrete Anchor is a robust anchorage bolt for use in concrete applications. The bolt requires a pre-drilled hole of 1/2 inch and 4.5 inches depth in 3000 psi concrete with minimum concrete thickness of 7 inches.• Robust steel design with 360 degree swivel of the forged D-ring
• Drill hole of 1/2 inch with 4.5 inch depth
• Minimum 3000 psi concrete and 7 inch thickness
• Minimum Breaking Strength (MBS): 5,000 pounds
• Meets ANSI and OSHA Standards
Technical Specifications
| Item#: | 1648235 |
|---|---|
| Manufacturer Model #: | A510011 |
| Length | 5.5 " |
| Material | Steel |
| Style | Swivel |
| Type | Anchor |
| Color | Gold |
| Closure Type | D-Ring |
| Approvals | ANSI Z359.18-2017, OSHA 1910.140/1926.502 |
| UNSPSC #: | 46182304 |
| TAA Compliant: | Yes |
